IMBLK01

Description

ABB IMBLK01 Product Overview

Key Features (Typical of ABB Interface Modules)

Feature	Description
Modular Design	Compact form factor for easy installation in control panels or switchgear.
Electrical Isolation	Galvanic isolation between input/output channels to prevent ground loops.
Signal Conditioning	Converts analog or digital signals (e.g., 4–20 mA, 0–10 V, dry contacts) for compatibility with control systems.
Protocol Support	May support serial communication (Modbus RTU) or fieldbus systems (Profibus DP).
Diagnostics	LED indicators for power, communication, and fault status.
Environmental Rating	Designed for industrial use with wide operating temperature range (-20°C to +60°C) and protection against dust/moisture (IP20 or higher).

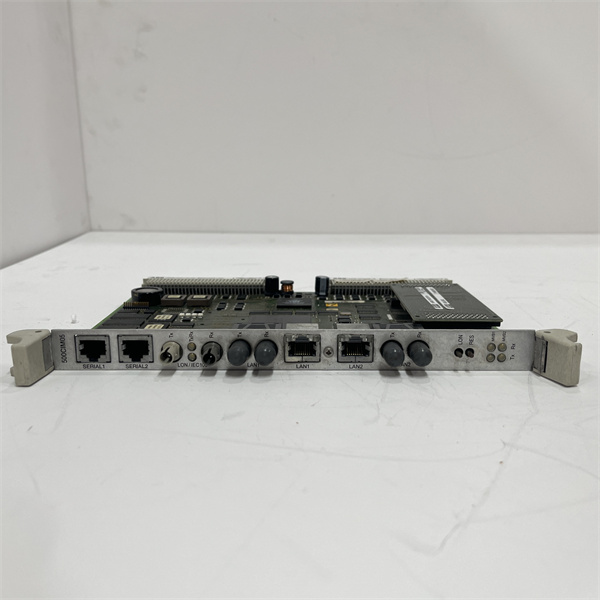

500CIM05 1MRB150077R1/B

Common Applications

1. Power Distribution Systems
   • Connects protective relays, circuit breakers, or voltage/current sensors to a PLC or SCADA system for real-time monitoring of electrical parameters (e.g., voltage, current, power factor).
   • Enables remote control of switchgear (e.g., closing/opening circuit breakers) with isolated control signals.
2. Motor Control Centers (MCCs)
   -Interfaces with motor starters, variable frequency drives (VFDs), or soft starters to transmit status signals (e.g., run, fault, overload) to the control system.
   • Provides safe isolation for command signals (e.g., start/stop commands) to prevent interference from high-power motor circuits.
3. Process Automation
   • Converts analog signals from sensors (e.g., temperature, pressure) into digital data for processing by a DCS or PLC.
   • Acts as a buffer between field devices and the control system in harsh environments (e.g., factories, oil/gas plants, water treatment facilities).
4. Renewable Energy Systems
   • Integrates inverters, battery storage systems, or grid-connected generators with supervisory control systems, ensuring seamless data exchange for energy management.

Technical Specifications (Example-Based, Subject to Variation)

Parameter	Typical Value
Model	IMBLK01
Manufacturer	ABB
Product Type	Interface Module / Signal Isolation Module
Input Channels	4–8 channels (configurable for analog/digital inputs)
Output Channels	4–8 channels (relay contacts or analog outputs)
Power Supply	24 V DC or 100–240 V AC (depending on variant)
Communication	Modbus RTU (RS-485) or Profibus DP (optional)
Mounting	DIN-rail (EN 60715)
Dimensions	~100 mm (W) × 100 mm (H) × 60 mm (D) (compact design)
Certifications	CE, UL, IEC 61000-6-2/6-4 (EMC compliance)

O3EC HENF442581R1

Related Products

• ABB I/O Modules (e.g., AI523, DI521)
  • Analog/digital input/output modules for direct connection to PLCs (e.g., ABB AC500 series).
• ABB PMC Protection and Control Modules
  • Designed for power system protection, these modules integrate with the IMBLK01 for advanced relay applications.
• ABB TBUS Terminal Blocks
  • Complementary terminal blocks for secure wiring and signal distribution in control panels.
• ABB CP600 Communication Processor
  • Enables higher-level protocol conversion (e.g., Modbus to Ethernet) for systems using the IMBLK01.

Installation and Use

1. Mounting: Attach the module to a DIN-rail in a control cabinet, ensuring adequate spacing for heat dissipation.
2. Wiring:
   • Connect field device signals (inputs) and control system signals (outputs) using the module’s terminal blocks.
   • Ensure proper grounding to minimize electromagnetic interference (EMI).
3. Configuration:
   • Use ABB’s control software (e.g., AC500 Programming Tool) to set up input/output types, scaling, and communication parameters.
   • Test signal transmission and isolation using a multimeter or diagnostic tools.
4. Maintenance:
   • Regularly inspect connections for looseness or corrosion, especially in high-vibration environments.
   • Monitor LED indicators for fault signals (e.g., loss of power, communication errors).
   • Replace the module if damaged or if firmware updates are no longer supported.
