NOCR-01C 3AFE64300245 ABB

Description

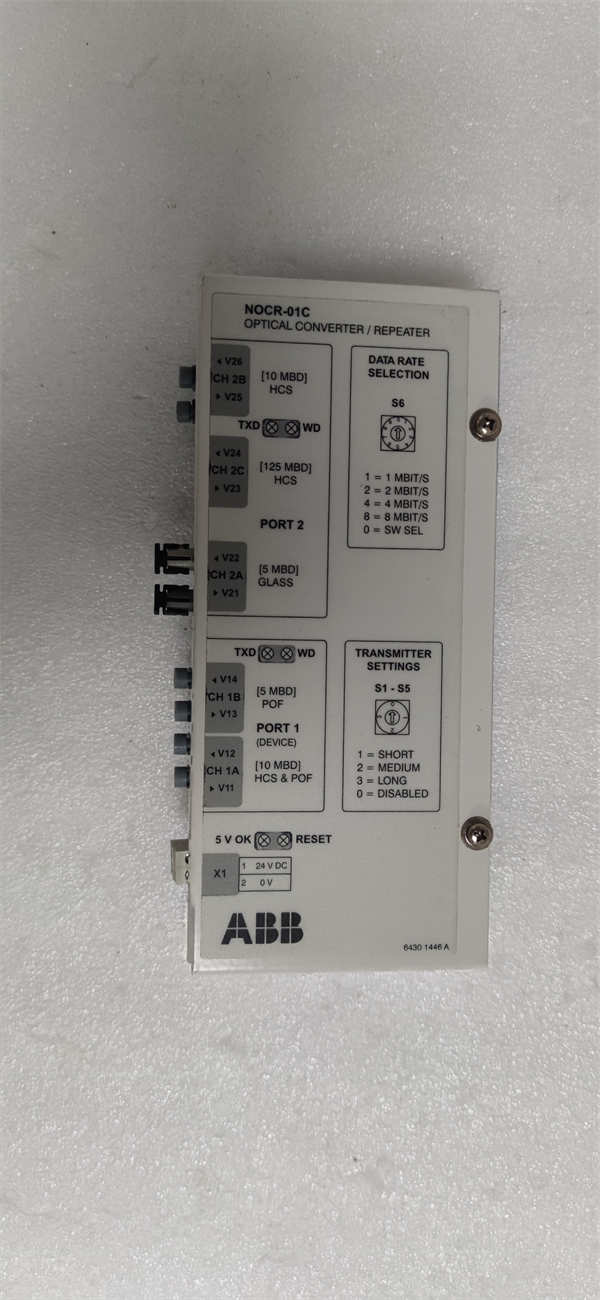

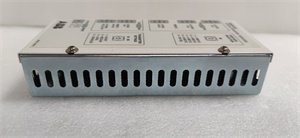

ABB NOCR-01C 3AFE64300245 Optical Converter

1. Product Description

• Multi-Protocol Support: Compatible with industrial standards like PROFIBUS DP, MODBUS RTU, and Ethernet/IP, allowing integration with PLCs, sensors, and actuators.
• High-Speed Conversion: Supports data rates up to 100 Mbps, ensuring real-time control and monitoring in complex systems.
• Long-Distance Transmission: Enables fiber-optic communication over distances exceeding 20 km (single-mode) or 2 km (multi-mode), reducing signal degradation in large-scale facilities.
• Rugged Design: Operates in temperatures ranging from -40°C to +70°C and withstands vibrations (up to 5g) and electromagnetic interference (EMI), making it suitable for offshore platforms and chemical plants.

2. Technical Parameters

Parameter	Specification
Brand	ABB
Model	NOCR-01C 3AFE64300245
Converter Type	Electrical-to-Optical (Bi-Directional)
Protocol Support	PROFIBUS DP, MODBUS RTU, Ethernet/IP
Optical Interface	Single-mode (SM) or multi-mode (MM) fiber
Data Rate	Up to 100 Mbps
Transmission Distance	SM: ≤20 km; MM: ≤2 km
Power Supply	24V DC ±15% (non-isolated)
Power Consumption	≤5 W
Operating Temperature	-40°C to +70°C (non-condensing humidity: 5%–95%)
Dimensions (W×H×D)	150 mm × 100 mm × 50 mm (DIN rail mountable)
Certifications	CE, RoHS, IEC 61131-2 (safety), IEC 61000-6-2 (EMC)
Compatibility	ABB AC800M, AC900F, and third-party PROFIBUS/MODBUS devices

NOCR-01C 3AFE64300245

3. Advantages and Features

• Reliable Performance: Built with industrial-grade components, the NOCR-01C 3AFE64300245 achieves a mean time between failures (MTBF) of 150,000 hours and incorporates error-checking mechanisms to detect signal loss or hardware faults in real time.
• Flexible Integration: Supports both single-mode and multi-mode fibers, adapting to existing network infrastructure and reducing upgrade costs.
• Cost Efficiency: Eliminates the need for expensive copper cabling in long-distance applications, lowering installation and maintenance expenses by up to 30%.
• Plug-and-Play Operation: Simplifies deployment with auto-negotiation of data rates and protocols, minimizing configuration time.
• Redundancy Options: Optional dual power inputs and fiber links ensure uninterrupted operation in critical systems.

4. Application Areas and Case Study

Application Areas:

• Manufacturing: Connects distributed PLCs and robotic arms in automotive assembly lines, ensuring synchronized control and quality monitoring.
• Energy Production: Manages turbine control systems and generator protection in power plants, enabling real-time data exchange between remote substations.
• Oil & Gas: Deploys in offshore platforms to transmit sensor data from drilling rigs to onshore control centers, overcoming harsh environmental challenges.
• Water Treatment: Automates pump control and filtration processes in wastewater treatment plants, enhancing operational efficiency.

Case Study:

• 99.99% uptime: Fiber-optic transmission eliminated EMI-related disruptions.
• Reduced Latency: Signal latency decreased by 40%, enabling precise reactor temperature control.
• Cost Savings: Avoided $150,000 in annual maintenance costs by replacing degraded copper cables with fiber optics.

5. Competitive Comparison

• Broader Protocol Support: Integrates PROFIBUS DP, MODBUS, and Ethernet/IP natively, reducing reliance on additional gateway modules.
• Extreme Environment Resilience: Operates at a wider temperature range (-40°C to +70°C) than many alternatives, suitable for unregulated industrial sites.
• Tight Ecosystem Integration: Works seamlessly with ABB’s AC800M and AC900F systems, ensuring compatibility with existing control software and I/O modules.


  NOCR-01C 3AFE64300245

6. Selection Recommendations

• System Compatibility: Verify that your PLC or control system supports PROFIBUS DP or MODBUS RTU to leverage the NOCR-01C 3AFE64300245’s full functionality.
• Environmental Needs: Prioritize this module for applications with high EMI, extreme temperatures, or long-distance transmission requirements.
• Scalability Requirements: Evaluate the number of converters needed for future expansions, particularly if your network spans multiple buildings or facilities.
• Budget Considerations: Balance initial costs with long-term savings from reduced maintenance and improved reliability, especially for mission-critical systems.

7. Precautions

• Installation:
  • Use anti-static wrist straps to prevent ESD damage during handling.
  • Ensure proper grounding and shielded cables for electrical interfaces to minimize interference.
• Configuration:
  • Use ABB’s Control Builder M software to configure network parameters (e.g., baud rates, fiber type) and validate connectivity.
  • Calibrate signal thresholds according to sensor specifications.
• Maintenance:
  • Regularly inspect fiber connectors for dust or damage and clean them using approved tools.
  • Update firmware via ABB’s support portal to access security patches and performance optimizations.
• Storage:
  • Store unused modules in anti-static packaging within the specified temperature range (-40°C to +85°C).
