Description

1. Product Description

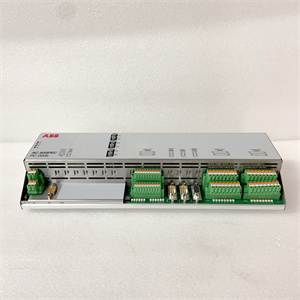

The ABB PCD235B1101 3BHE032025R1101 Process I/O Module is a high-performance industrial component designed for precision process control and data acquisition in ABB’s distributed control systems (DCS). Engineered for ABB’s Advant OCS and Freelance platforms, the PCD235B1101 3BHE032025R1101 delivers reliable analog and digital input/output (I/O) functionality for industrial automation. Its core functions include signal conditioning, redundant communication, and real-time data processing, ensuring seamless integration into critical processes. With support for up to 16 analog inputs (4–20 mA/0–10 V) and 8 digital outputs (24 V DC), the module is ideal for industries such as oil & gas, power generation, and manufacturing. The PCD235B1101 3BHE032025R1101 combines rugged design, advanced diagnostics, and modular scalability to optimize system efficiency in harsh environments.

2. Product Parameters

Parameter Specification
Voltage Rating 24 V DC (power supply)
I/O Channels 16 analog inputs (4–20 mA/0–10 V), 8 digital outputs (24 V DC)
Communication PROFIBUS DP, Modbus RTU (RS-485)
Compatibility ABB Advant OCS, Freelance DCS
Mounting Rack-mounted (35 mm DIN rail)
Redundancy Support Yes (dual-channel redundancy)
Environmental Rating IP20 (indoor use, dust/moisture resistant)
Weight 0.3 kg
PCD235B1101 3BHE032025R1101

PCD235B1101 3BHE032025R1101

3. Advantages and Features

  • Redundant Architecture: Dual-channel redundancy ensures continuous operation during component failure.
  • High Precision: ±0.1% accuracy on analog inputs for critical process monitoring.
  • Modular Design: Hot-swappable modules enable quick replacement without system downtime.
  • Advanced Diagnostics: Real-time error reporting and channel-level fault isolation.
  • Wide Voltage Range: Tolerates voltage fluctuations (20–28 V DC) for stable operation in unreliable power environments.

4. Application Areas and Cases

Industries: Oil & gas refining, power plants (thermal/hydro), water treatment, and chemical processing.
Scenarios: Process monitoring in distillation columns, pump control in water networks, and temperature/pressure regulation in reactors.
Case Study: A North American chemical plant integrated the PCD235B1101 3BHE032025R1101 into its reactor control system. The module’s redundant I/O and precision analog processing reduced measurement errors by 25%, improving product quality and cutting rework costs by 18%.

5. Competitor Comparison

Compared to standard I/O modules, the PCD235B1101 3BHE032025R1101 offers:
  • ABB Ecosystem Integration: Pre-configured for ABB’s DCS platforms, minimizing setup time and compatibility risks.
  • Redundancy as Standard: Built-in dual-channel redundancy (rare in entry-level modules).
  • Diagnostic Depth: Detailed fault codes and remote troubleshooting capabilities, reducing maintenance complexity.
    PCD235B1101 3BHE032025R1101

    PCD235B1101 3BHE032025R1101

6. Selection Recommendations

  • I/O Requirements: Match channel counts (16AI/8DO) and signal types (4–20 mA/0–10 V) with system needs.
  • System Compatibility: Ensure integration with ABB Advant OCS or Freelance DCS.
  • Environment: Verify IP20 rating suits indoor industrial settings (non-hazardous locations).
  • Redundancy Needs: Prioritize dual-channel support for systems requiring 24/7 uptime.

7. Precautions

  • Installation: Follow ABB’s wiring guidelines (shielded cables for analog signals to prevent noise).
  • Static Protection: Use anti-static wrist straps during handling to avoid ESD damage.
  • Firmware Updates: Regularly update via ABB’s System 800xA software for security patches.
  • Voltage Checks: Ensure power supply meets 20–28 V DC range to prevent module damage.
