Description

1. Product Description

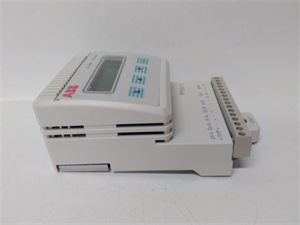

The ABB PFEA111-20 is a high-performance tension electronics module designed for industrial process control applications, part of ABB’s Process Master family. Engineered for precision and reliability, the PFEA111-20 supports two load cell inputs and delivers accurate voltage and current outputs (A+B) with adjustable filtering, making it ideal for tension measurement and control in manufacturing, energy, and automation systems. Its compact design and durable materials ensure operation in harsh environments, while a user-friendly interface and advanced diagnostic capabilities simplify setup and maintenance. The module displays real-time readings (A, B, A+B, A-B) and integrates seamlessly with ABB’s Process Master components (e.g., transmitters, controllers) for comprehensive system solutions.

2. Technical Parameters

Parameter Specification
Input Type 2 load cells (compatible with standard load cell configurations)
Output Type Voltage (0–10 V) and current (4–20 mA) outputs (A+B)
Power Supply 24 V DC (±10%)
Accuracy ±0.1% of full scale (typical)
Filtering Adjustable (software-configurable)
Display Real-time readings (A, B, A+B, A-B)
IP Rating IP20 (industrial environment protection)
Weight 0.2 kg (net)
Dimensions Compact design (dimensions available in user manual)
Compatibility ABB Process Master family, PLC systems (via Profibus DP, optional)
PFEA111-20

PFEA111-20

3. Advantages and Features

  • High Precision: Electromagnetic technology and temperature compensation ensure ±0.1% accuracy under turbulent conditions.
  • Durable Design: Built with robust materials for long-term operation in harsh industrial environments.
  • Easy Integration: User-friendly interface, plug-and-play setup, and compatibility with ABB’s Process Master ecosystem.
  • Advanced Diagnostics: Real-time fault detection and status monitoring reduce downtime.
  • Flexible Configuration: Adjustable filtering, multiple output options, and support for single/dual load cell setups.
  • Energy Efficiency: Low power consumption (24 V DC) with optimized signal processing.

4. Application Fields and Cases

Industries: Manufacturing (paper, textiles), water treatment, chemical processing, food and beverage, energy.
Scenarios: Web tension control, material handling, process automation.



Case Study: A textile mill in China integrated the PFEA111-20 into its production line to monitor fabric tension. The module’s real-time diagnostics and precise compensation reduced material waste by 15% and improved line efficiency by 10%, ensuring consistent product quality.

5. Competitor Comparison

Compared to similar tension modules, the PFEA111-20 offers superior integration with ABB’s ecosystem, advanced temperature compensation, and a broader range of configurable outputs. Its compact design and built-in diagnostics provide a cost-effective solution with lower maintenance requirements, outperforming 竞品 in reliability and ease of use.

PFEA111-20

PFEA111-20

6. Selection Recommendations

  • Compatibility: Ensure compatibility with existing ABB systems or PLC platforms (check Profibus DP options).
  • Environment: Choose IP20 for indoor use; consider additional protection for outdoor/hazardous environments.
  • Budget: Balance features (e.g., diagnostics, filtering) with cost; the PFEA111-20 offers high value for mid-range applications.
  • Scalability: Plan for future expansion (e.g., dual load cell setups, system integration).

7. Precautions

  • Installation: Follow ABB’s user manual for load cell wiring and grounding to avoid interference.
  • Maintenance: Regularly check cable connections and calibrate sensors (recommended annually).
  • Safety: Disconnect power before servicing; ensure compliance with industrial safety standards (e.g., IEC 61010).
  • Software: Use ABB’s official tools for firmware updates and configuration.
