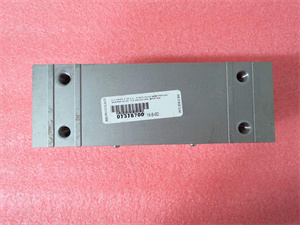

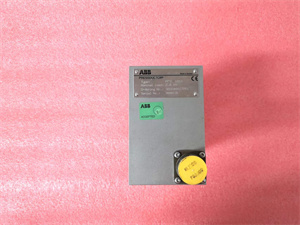

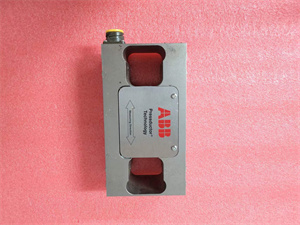

PFTL101A 2.0KN 3BSE004172R1

Description

The ABB PFTL101A 2.0KN 3BSE004172R1 is a high-performance industrial automation product designed to accurately measure and control forces and weights in industrial environments. Here is a detailed description of the product:

ABB PFTL101A 2.0KN 3BSE004172R1 Product description

The ABB PFTL101A 2.0KN 3BSE004172R1 is a highly accurate and reliable load cell for industrial automation applications. Its compact and robust design enables it to adapt to harsh industrial environments, such as high temperature, high humidity, vibration and other conditions. The sensor is made of stainless steel and is IP67 protected, ensuring stable operation in a variety of complex environments.

Product parameter

Rated capacity: 2.0kN (2000N).

Nonlinear error: ≤±0.02%FS (full scale).

Repeatability error: ≤±0.01%FS.

Zero stability: ≤±0.01%FS/ year.

Temperature effect: ≤±0.02%FS/℃.

Output signal: mV/V or mv/mV.

Operating temperature range: -20℃ to +80℃.

Excitation voltage: DC 24V.

Weight: About 0.5kg.

Mounting method: flange type or thread type.

Product specification

Size: The exact size is not explicitly mentioned, but the compact design is easy to install.

Protection class: IP67, dustproof and waterproof.

Material: Stainless steel.

Applicable voltage: 10-15VDC.

series

The product is part of ABB’s PFTL101A series of load cells, which are widely used in industrial automation and are available in a variety of models.

trait

High precision and reliability: Advanced measurement technology is used to ensure the accuracy and stability of measurement results.

Durability: Robust design to withstand harsh industrial environments.

Fast response: Rapid response to changes in force, suitable for dynamic measurement.

Easy installation: Supports flange or thread mounting, suitable for a variety of application scenarios.

Compatibility: Compatible with ABB’s other industrial automation products and easy to integrate into existing systems.

Function and use

The main role of the ABB PFTL101A 2.0KN 3BSE004172R1 is to accurately measure and monitor forces and weights in industrial environments. Its uses include:

Weighing system: used in batching, metering, packaging and other systems.

Process control: Used for tension control and material monitoring on the production line.

Industrial automation: widely used in machinery manufacturing, petrochemical, water treatment, textile and other industries.

Application field

The sensor is suitable for the following applications:

Industrial automation: Used for weight and force measurement on production lines.

Process control: Used to monitor material tension, thrust, etc., on the production line.

Mechanical manufacturing: used to measure machine tool cutting force, drilling force, etc.

Chemical industry: Pressure measurement in chemical production.

Textile industry: For the accurate measurement of fabric tension.
