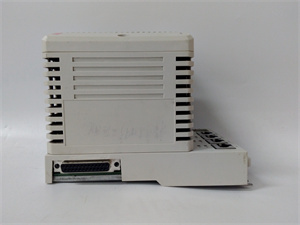

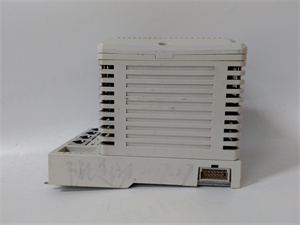

The PM864AK01 3BSE018161R1 is a high-performance processor module from ABB, designed for advanced industrial automation systems. As part of the AC 800M series, this module delivers robust control capabilities, supporting real-time data processing and seamless integration with diverse industrial networks. With its versatile communication protocols and rugged construction, the PM864AK01 3BSE018161R1 is ideal for critical applications requiring reliability and precision.
Supports dual-channel redundancy for high availability
Protection Level
IP20 (dust and debris protection)
Temperature Range
-20°C to +70°C
I/O Capacity
Up to 64 I/O points
Dimensions
135 mm (depth) × 186 mm (height) × 119 mm (width)
Weight
1.2 kg
Advantages and Features
High Reliability:
Redundancy support ensures continuous operation even during component failures.
Constructed with industrial-grade materials to withstand extreme temperatures and vibrations.
Flexibility:
Adaptable to multiple communication protocols, enabling integration with diverse systems.
Customizable analog output configurations for tailored automation needs.
Ease of Use:
Built-in Web server allows browser-based configuration and monitoring without additional software.
Tool-free slide-and-lock mechanism simplifies DIN rail installation.
Energy Efficiency:
Low power consumption design reduces operational costs in long-term deployments.
Application Areas and Cases
Power Generation: Used in turbine control systems to optimize energy output and grid stability.
Water Treatment: Manages pump operations and chemical dosing in wastewater plants for consistent quality.
Manufacturing: Controls assembly lines, ensuring precision in automotive and electronics production.
Case Study: A food processing plant in Europe integrated the PM864AK01 3BSE018161R1 to automate packaging lines. The module’s real-time data processing reduced downtime by 20% and improved product consistency, saving over €50,000 annually.
Competitor Comparison
The PM864AK01 3BSE018161R1 outperforms many alternatives with:
A broader temperature range (-20°C to +70°C vs. typical 0°C to +55°C).
Simultaneous support for Ethernet/IP and Modbus TCP, enhancing interoperability.
A built-in Web server, eliminating the need for proprietary software licenses.
Selection Recommendations
Compatibility: Verify protocol and interface requirements with existing infrastructure.
Environment: Prioritize the module’s wide temperature range for harsh industrial settings.
Scalability: Ensure the I/O capacity aligns with future expansion plans.
Power Supply: Use a stable 24V DC power source within ±10% tolerance.
Maintenance: Regularly inspect connectors and clean dust from vents to prevent overheating.
Software Updates: Apply firmware updates from ABB to access new features and security patches.
Shanxi Xinyeda International Trade Co., Ltd. is your trusted partner for automation solutions. We offer the PM864AK01 3BSE018161R1 and a comprehensive range of industrial spare parts. Visit our website at www.xydcontrol.com or contact us for technical support and inquiries.
