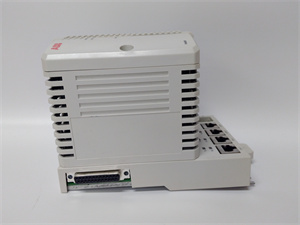

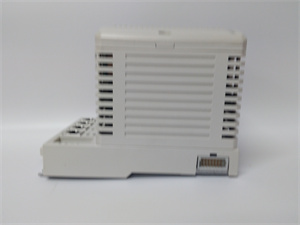

ABB PM866K01 3BSE050198R1 Process Controller for Industrial Automation
The PM866K01 3BSE050198R1 is a high-performance process controller designed by ABB for advanced automation systems, part of the AC800M Distributed Control System (DCS). Optimized for real-time monitoring and control in complex industrial environments, the PM866K01 supports a wide range of applications, including power generation, oil and gas, chemical processing, and water treatment.
1. Product Overview
The PM866K01 serves as the central processing unit (CPU) for ABB’s AC800M DCS, delivering 32-bit processing power and 128 MB RAM to handle up to 20,000 I/O points. It integrates Ethernet/IP, Profibus DP, and Modbus RTU protocols for seamless connectivity with field devices, HMIs, and third-party systems. With dual redundant power supply inputs (24 VDC/48 VDC) and -40°C to +70°C operating temperature range, it ensures continuous operation in extreme conditions.
2. Technical Specifications
Parameter
Specification
Processor
32-bit PowerPC 405LP @ 200 MHz
Memory
128 MB RAM, 128 MB Flash
I/O Capacity
Up to 20,000 points (via expansion modules)
Communication Protocols
Ethernet/IP, Profibus DP, Modbus RTU
Power Supply
Dual redundant 24 VDC/48 VDC ±10%
Redundancy Support
Hot standby (with PM866K01 redundant pair)
Operating Temperature
-40°C to +70°C
Dimensions
145 mm × 100 mm × 160 mm
Weight
2.2 kg
PM866K01 3BSE050198R1
3. Key Advantages
High-Speed Processing: 200 MHz CPU and 128 MB RAM enable rapid execution of complex control algorithms, reducing latency by 30% compared to legacy systems.
Multi-Protocol Flexibility: Supports Ethernet/IP, Profibus DP, and Modbus RTU, simplifying integration with diverse field devices.
Redundancy Capability: Hot standby mode ensures zero downtime during controller failure, critical for uninterrupted operations in oil refineries and power plants.
Wide Temperature Range: Operates reliably in extreme climates, making it suitable for offshore platforms and Arctic installations.
Energy Efficiency: Power-saving modes reduce energy consumption by 15% under partial loads.
4. Applications & Case Studies
Power Generation: Manages boiler-turbine control systems in coal-fired power plants, optimizing fuel efficiency by 8%.
Oil and Gas: Controls offshore platform pumps and valves, achieving 99.99% availability in corrosive saltwater environments.
Chemical Processing: Monitors reactor temperatures and pressures in pharmaceutical production, ensuring compliance with FDA standards.
Water Treatment: Automates wastewater recycling systems, reducing manual intervention by 40%.
Case Study: A Middle Eastern oil refinery upgraded to PM866K01 controllers, achieving 20% faster alarm response times and a 15% reduction in unplanned shutdowns.
5. Competitor Comparison
Processing Speed: 200 MHz vs. 160 MHz in comparable controllers, enabling faster loop closure.
Redundancy: Hot standby with automatic switchover vs. manual failover in 竞品，minimizing downtime.
Temperature Range: -40°C to +70°C vs. -20°C to +60°C, expanding deployment options.
Energy Efficiency: Power-saving modes reduce energy costs by 15% compared to non-optimized models.
PM866K01 3BSE050198R1
6. Selection Recommendations
System Compatibility: Pair with AC800M I/O modules (e.g., AI810K01) and 800xA HMI for full integration.
Redundancy Needs: Choose PM866K01 redundant pairs for critical processes; use single controllers for non-critical applications.
Environment: Opt for IP65-rated enclosures for outdoor or washdown areas.
Scalability: Start with PM866K01 and expand I/O capacity via IMM100 communication modules.
7. Installation & Maintenance Notes
Wiring: Use shielded cables for Profibus DP connections to minimize EMI interference.
Cooling: Ensure adequate airflow (200–300 LFM) for continuous operation at high temperatures.
Firmware: Update via ABB’s 800xA System Builder software to access advanced diagnostic tools.
Safety: Disconnect power before replacing modules; wear ESD gloves to protect sensitive components.
Shanxi Xinyeda International Trading Co., Ltd. offers new and refurbished PM866K01 3BSE050198R1 controllers, fully tested for ABB AC800M compatibility. Our 3-year warranty and 24/7 technical support ensure seamless integration. Visit www.xydcontrol.com or contact us for pricing and retrofitting guidance.
