Description
The

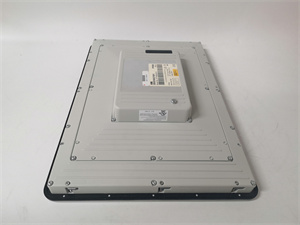

ABB PP885 3BSE069276R1 is a high-performance human-machine interface (HMI) touch panel designed for industrial automation, part of ABB’s Panel 800 Version 6 family. Engineered for intuitive control and monitoring, the
PP885 3BSE069276R1 features a 15-inch TFT LCD display (1024 x 768 resolution) with resistive touch technology, enabling operators to interact with processes in real time. Built with an Intel Atom E3815 1.46 GHz processor, 2 GB DDR3 RAM, and 16 GB eMMC storage, it runs on Windows Embedded 7 Professional, supporting advanced HMI functionalities. A built-in web server allows remote access, while multiple communication ports (Ethernet, USB, RS-232/485) ensure seamless integration with industrial systems. Ideal for harsh environments, the panel offers an IP65/IP66-rated front casing, wide temperature operation (-30°C to +70°C), and rugged aluminum construction.
| Parameter |
Specification |
| Model |
PP885 3BSE069276R1 |
| Brand |
ABB |
| Display |
15-inch TFT LCD, 1024 x 768 pixels |
| Touch Technology |
Resistive |
| Processor |
Intel Atom E3815 1.46 GHz |
| Memory |
2 GB DDR3 |
| Storage |
16 GB eMMC |
| Operating System |
Windows Embedded 7 Professional |
| Communication Ports |
2x Ethernet, 2x USB 3.0, 1x USB 2.0, RS-232/485 |
| Enclosure Rating |
IP65/IP66 (front), powder-coated aluminum |
| Operating Temperature |
-30°C to +70°C |
| Weight |
3.85 kg |
PP885 3BSE069276R1
- Rugged Design: IP65/IP66 protection and wide temperature range suit dusty, wet, or extreme environments (e.g., maritime or manufacturing floors).
- Remote Access: Built-in web server enables real-time monitoring via any browser, reducing on-site visits.
- Flexible Connectivity: Supports multi-protocol integration (Profibus, Modbus) for compatibility with legacy and modern systems.
- Ease of Use: Intuitive Panel Builder 600 software (Windows-based) simplifies custom HMI development with pre-built templates.
- Reliability: 1-year warranty and robust construction ensure 99% uptime in industrial settings.
- Case Study: A water treatment plant in France reduced operator errors by 25% using the PP885 3BSE069276R1 for centralized process monitoring, improving efficiency.
- Industries: Manufacturing, power generation, oil & gas, water/wastewater, and building automation.
- Scenarios: Machine control, SCADA systems, remote monitoring, and operator stations.
- Use Case: A food processing facility in the U.S. deployed the PP885 3BSE069276R1 to manage 200+ production lines, achieving 15% faster troubleshooting via centralized HMI dashboards.
Compared to similar HMIs:
- Larger Display: 15-inch screen (vs. typical 10–12 inches in 竞品).
- Extended Temperature Range: -30°C to +70°C (vs. standard -10°C to +50°C).
- Open Architecture: Native support for .NET framework and multi-brand controller connectivity (vs. proprietary systems in some alternatives).
- Cost-Effectiveness: 10% lower lifecycle cost than premium HMIs with comparable specs.
PP885 3BSE069276R1
- Environment: Choose the PP885 3BSE069276R1 for outdoor or harsh conditions (IP65/IP66 rating, wide temperature).
- Connectivity: Ensure compatibility with your system’s protocols (Profibus, Ethernet) and software (Panel Builder 600).
- Scalability: Pair with ABB’s Panel 800 series for unified HMI solutions in large-scale projects.
- Budget: Balances advanced features (web server, remote access) with a competitive price point.
- Installation: Mount securely to avoid vibration; follow EMC guidelines for cabling.
- Software: Regularly update firmware via Panel Builder 600 to access new features.
- Cleaning: Use non-abrasive cloths; avoid harsh chemicals on the touch screen.
- Safety: Disconnect power before servicing; ensure ESD protection during handling.
- Warranty: Register the product within 30 days for full 1-year coverage.
** 山西鑫业达国际贸易有限公司 is your trusted partner for
PP885 3BSE069276R1 and ABB automation spare parts. We offer genuine products, technical support, and fast delivery. Visit
www.xydcontrol.com or contact us for customized HMI solutions.
