RLM01 3BDZ00398R1IMG

Description

ABB RLM01 3BDZ00398R1IMG Redundant Link Module Detailed Explanation

Product Overview

ABB RLM01 3BDZ00398R1IMG is a redundant link module for PROFIBUS,mainly used to improve the reliability of PROFIBUS networks.It can convert a non redundant PROFIBUS link into two redundant links,or vice versa.In this way,the RLM01 module can significantly enhance the fault tolerance of the PROFIBUS network,avoid single point failures,and thus improve the stability and reliability of the entire system.

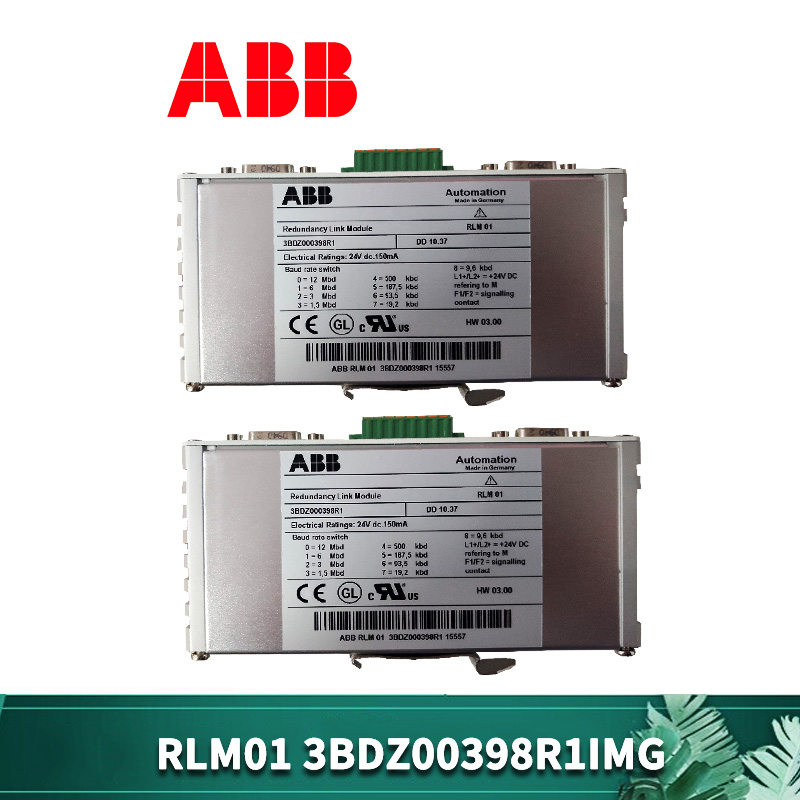

RLM01 3BDZ00398R1IMG ABB

Product Features

Redundant link conversion:Convert a single PROFIBUS link to a dual redundant link,or convert a dual redundant link to a single link.

Transparent PROFIBUS configuration:No additional configuration of slave addresses is required.

Supports multiple transmission rates:supports transmission rates from 9.6 Kbps to 12 Mbps.

Supports up to 31 PROFIBUS clients:expands network capacity.

High reliability:With the use of repeaters(fiber optic electrical),it can be further expanded.

Easy to diagnose:Errors are indicated through the LED or signal contactor on the front panel,making maintenance convenient.

Fully certified:with CE,UL,CSA and other certifications,suitable for various application environments.

Product parameters

Interface type:RS 485

Transmission rate:9.6 Kbps-12 Mbps

Connector:9-pin Sub-D

Electrical isolation:VDE 0110

Working temperature:0°C-50°C

Storage temperature:-30°C-85°C

Relative humidity:≤75%(non condensing)

Size:134 x 56 x 70 mm(H x W x D)

Weight:330g

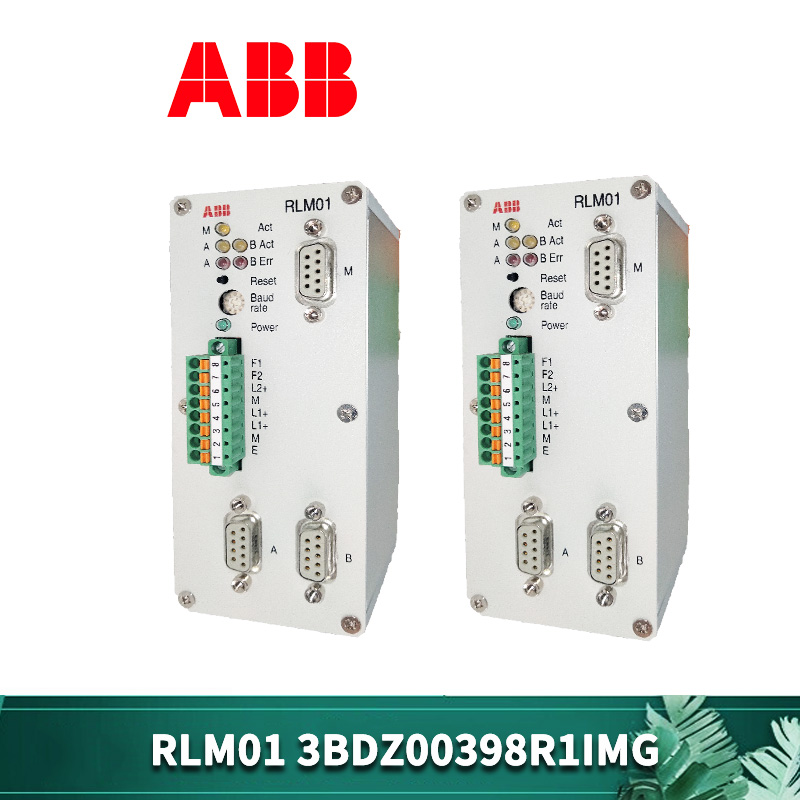

RLM01 3BDZ00398R1IMG ABB

Product function and purpose

Improving the reliability of PROFIBUS network:By implementing redundancy mechanisms,single point failures can be avoided and system stability can be enhanced.

Expand the capacity of PROFIBUS network:support more PROFIBUS clients to meet larger application requirements.

Enhance the fault tolerance capability of the system:In the event of a failure in one link,the system can automatically switch to another link,ensuring the continuous operation of the system.

Suitable for various industrial automation applications:In situations that require high reliability,such as process control,automated production lines,etc.,the RLM01 module can provide reliable communication support.

application area

Industrial automation:In various industrial automation systems,the RLM01 module can be used to improve the reliability of PROFIBUS networks.

Process control:In the process control system,the RLM01 module ensures real-time transmission of critical data.

Building automation:In building automation systems,the RLM01 module can improve system stability and reliability.

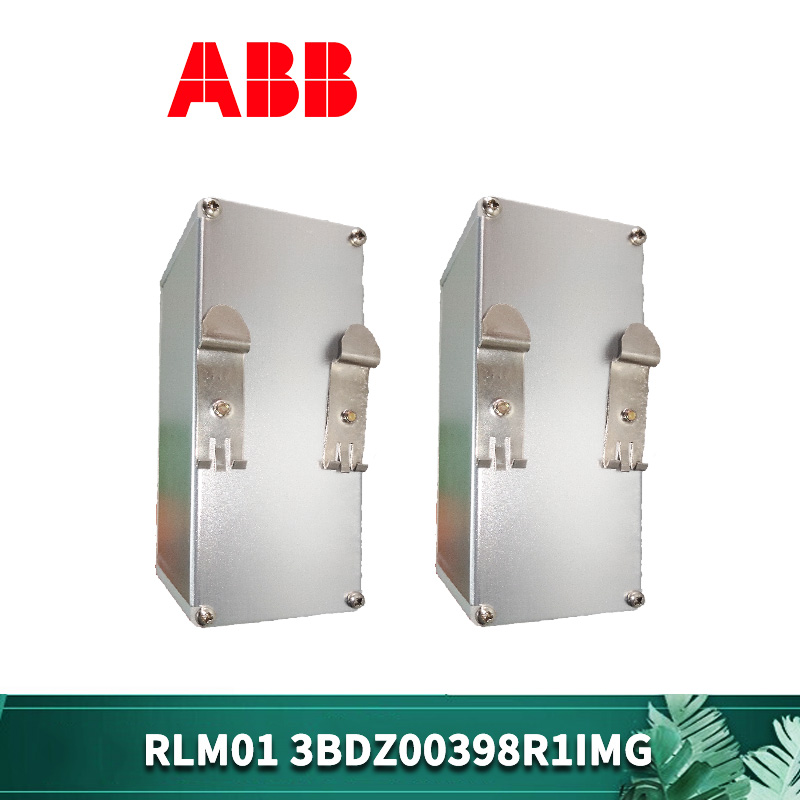

RLM01 3BDZ00398R1IMG ABB

summary

The ABB RLM01 3BDZ00398R1IMG redundant link module is a powerful and highly reliable PROFIBUS network component.It significantly improves the reliability of PROFIBUS networks by providing redundancy mechanisms,making it suitable for various industrial automation applications.
