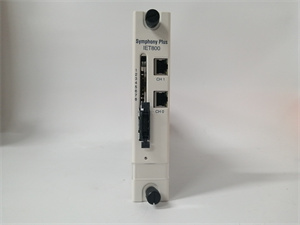

SPIET800 ABB

Description

ABB SPIET800: High-Performance Industrial Communication Module

1. Product Overview

2. Technical Parameters

Parameter	Specification
Voltage Range	24V DC ±10%
Power Consumption	≤15W
Communication Protocols	Modbus TCP/IP, PROFINET, EtherCAT, OPC UA
Interfaces	2x Ethernet (10/100 Mbps), RS-485
Data Transfer Rate	Up to 100 Mbps
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Dimensions	160 mm (W) x 100 mm (H) x 80 mm (D)
Weight	0.8 kg
Redundancy	Dual-port Ethernet for fault tolerance

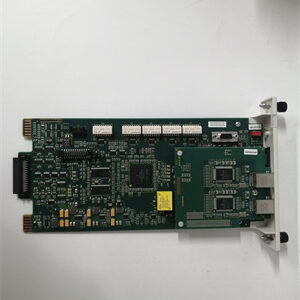

SPIET800

3. Advantages and Features

• Multi-Protocol Support: The SPIET800 integrates legacy and modern communication standards, eliminating the need for additional gateways. For example, it can bridge PROFINET networks with Modbus TCP/IP devices, reducing system complexity.
• High Reliability: Built with industrial-grade components, it achieves an average time between failures (MTBF) exceeding 100,000 hours. Redundant power inputs and error-checking mechanisms ensure data integrity even in noisy environments.
• Flexible Configuration: Users can customize protocols, data mapping, and security settings via ABB’s Control Builder software. This allows adaptation to unique process requirements without hardware modifications.
• Scalability: Supports up to 1,000 I/O points simultaneously, making it suitable for large-scale projects. It can be expanded with additional modules (e.g., I/O or safety modules) as system demands grow.

4. Application Areas and Case Study

Industry Applications

• Manufacturing: Manages real-time data exchange between robots, conveyor systems, and quality control machines in automotive and electronics production lines.
• Energy: Used in power plants for turbine control, grid stabilization, and renewable energy integration (e.g., wind farms).
• Chemical and Petrochemical: Enables process optimization and safety interlocks in distillation units and offshore platforms.
• Water Treatment: Monitors pH levels, chemical dosing, and pump stations in wastewater treatment plants.

Case Study

5. Competitive Comparison

• Protocol Flexibility: Supports more protocols out of the box, minimizing the need for additional software or hardware adapters.
• Environmental Resilience: Operates in a wider temperature range (-20°C to +60°C) compared to many competitors, making it suitable for extreme industrial environments.
• Cost-Effective Design: Low power consumption and a modular architecture reduce long-term operational and maintenance costs while enabling easy system expansion.

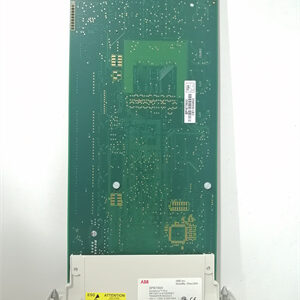

  SPIET800

6. Selection Recommendations

• System Compatibility: Ensure the SPIET800 aligns with your existing control system (e.g., ABB AC 800PEC) and required communication protocols to avoid integration issues.
• Environmental Needs: Verify the module’s temperature and humidity ratings to ensure suitability for your installation environment, especially in harsh or remote locations.
• Scalability Requirements: Assess your current and future I/O and data processing needs to determine if the SPIET800 or its extended variants (e.g., safety-certified models) best fit your project scope.
• Budget Considerations: Balance the module’s advanced features with your budget, factoring in long-term benefits such as reduced downtime and energy efficiency.

7. Precautions

• Installation: Power down the system and use anti-static precautions during installation to prevent damage from electrostatic discharge (ESD). Follow ABB’s guidelines for proper grounding and cable routing to minimize electromagnetic interference.
• Maintenance: Regularly update firmware to access the latest features and security patches, and clean the module’s vents to prevent dust accumulation that could affect heat dissipation.
• Safety Compliance: Ensure the SPIET800 meets local and international safety standards (e.g., CE, UL) for your region before deployment, and consult ABB’s documentation for correct usage in safety-critical applications.

Shanxi Xinyeda International Trading Co., Ltd. is your trusted partner, we provide SPIET800 and other automation spare parts sales and technical support. Please visit our website www.xydcontrol.com or contact us and we will be happy to serve you.
