The ABB TC512V1 3BSE018059R1 is a high-performance industrial communication module designed for reliable RS485-based data transmission in harsh environments. As part of ABB’s Advant Fieldbus 100 (AF100) system, this modem bridges the gap between control systems and remote devices, enabling seamless integration in process automation, manufacturing, and power generation applications. Its robust design and advanced features make it a critical component for industrial networks requiring long-distance communication and noise immunity.
1. Product Description
The TC512V1 serves as a twisted pair modem for RS485 communication, supporting protocols such as Modbus RTU, Profibus DP, and AF100 for industrial automation. It is engineered to handle data transmission over distances up to 12 km (7.5 miles) at speeds up to 2 Mbps, ensuring real-time control and monitoring in large-scale systems. The module features galvanic isolation to protect against ground loops and electromagnetic interference (EMI), maintaining signal integrity in noisy environments.
Key design elements include:
Plug-and-Play Integration: Compact DIN rail-mountable form factor (117 mm x 45 mm x 148.5 mm) for easy installation in control cabinets.
Wide Temperature Range: Operates reliably from -40°C to +85°C, suitable for extreme industrial conditions.
Redundant Power Supply: Supports 24 VDC input with reverse polarity protection, ensuring uninterrupted operation.
The TC512V1 is compatible with ABB’s Advant OCS and S800 I/O systems, as well as third-party RS485 devices, offering flexibility in system design.
2. Product Parameters
Parameter
Specification
Communication Protocol
RS485, Modbus RTU, Profibus DP, AF100
Data Rate
300 bps to 2 Mbps
Transmission Distance
Up to 12 km (twisted pair)
Power Supply
24 VDC ±10% (7.7 W typical consumption)
Signal Isolation
500 V AC (dielectric test)
Operating Temperature
-40°C to +85°C (storage: -40°C to +100°C)
Certifications
CE, RoHS, UL 508 (pending)
Weight
0.73 kg
Mounting
DIN rail (TS35/7.5 or TS35/15)

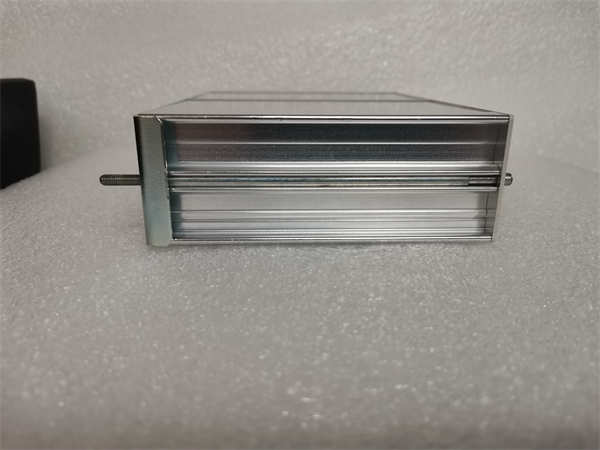

TC512V1 3BSE018059R1
3. Advantages and Features
High Reliability: The TC512V1 incorporates self-diagnostic capabilities and redundant power inputs, ensuring MTBF exceeding 100,000 hours. Its galvanic isolation (500 V AC) and surge protection safeguard against voltage spikes and ground loops.
Flexible Configuration: Supports point-to-point and multi-drop network topologies, with automatic baud rate detection for simplified setup. Users can configure termination resistors and biasing via built-in switches.
Industry Compliance: Meets rigorous standards like API 670 and IEC 61000-6-2/6-4 (EMC), making it suitable for safety-critical applications in oil, gas, and power industries.
Cost Efficiency: Reduces cabling complexity and installation time by integrating signal termination and power distribution into a single unit.
4. Application Areas and Case Studies
Industry Applications:
Process Automation: Chemical plants, refineries, and water treatment facilities.
Manufacturing: Robotics, conveyor systems, and machine tools.
Power Generation: Monitoring and control of turbines, generators, and substations.
Case Study: In a Saudi Arabian oil refinery, the TC512V1 was deployed to connect distributed control systems (DCS) with remote sensors in a hazardous area. By enabling RS485 communication over 8 km of twisted pair cable, the modem reduced downtime by 30% and improved data accuracy by eliminating signal degradation. The module’s surge protection also mitigated damage from lightning strikes, saving over $500,000 in equipment repairs.
5. Competitor Comparison
The TC512V1 outperforms comparable RS485 modems in the market through:
Longer Transmission Range: Supports distances up to 12 km, compared to typical 1-2 km limits of 竞品.
Higher Data Rate: Achieves 2 Mbps speeds, enabling faster real-time control compared to basic solutions.
Wider Compatibility: Seamless integration with ABB’s Advant OCS and S800 I/O systems, ensuring backward compatibility with legacy infrastructure.
TC512V1 3BSE018059R1
6. Selection Recommendations
When choosing the TC512V1
Distance Requirements: Opt for this module if your application requires communication beyond 1 km (e.g., remote pump stations or pipeline monitoring).
Environmental Conditions: Select the extended temperature range (-40°C to +85°C) for outdoor or high-temperature environments.
Protocol Needs: Ensure compatibility with your control system’s protocols (e.g., Modbus RTU for PLCs, Profibus DP for drives).
7. Precautions
Installation: Follow ABB’s wiring guidelines to avoid ground loops. Use shielded twisted pair cables (e.g., Belden 9841) for optimal EMI protection.
Termination: Install 120 Ω termination resistors at both ends of the network to minimize signal reflections.
Safety: Disconnect power before servicing to prevent electrical shock.
Conclusion: The ABB TC512V1 3BSE018059R1 is a versatile and reliable RS485 modem designed for industrial automation. Its combination of long-range communication, high data rates, and robust design makes it ideal for demanding applications in harsh environments. Whether connecting distributed control systems or retrofitting legacy infrastructure, this module ensures seamless integration and cost-effective performance.
