UAD149A0011 3BHE014135R0011

Description

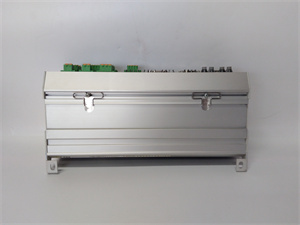

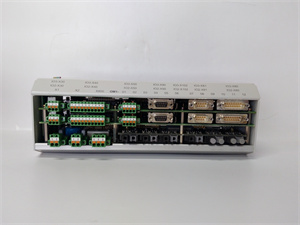

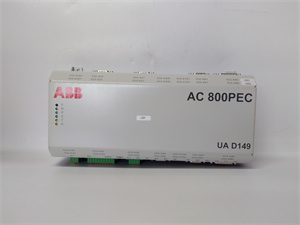

ABB UAD149A0011 3BHE014135R0011 Product Description

Product Overview

ABB UAD149A0011 3BHE014135R0011 is typically a combination I/O module of the ABB AC 800PEC series.It combines multiple functions such as digital input,digital output,analog input,etc.,and can flexibly connect various field devices to achieve data acquisition and control.This module has the characteristics of high reliability,high integration,and easy configuration,and is widely used in the field of industrial automation.

Product Features

Combination I/O:integrates multiple I/O functions,reduces the number of modules,and lowers system costs.

High integration:integrates a large number of I/O points in a compact space,increasing system density.

Flexible configuration:I/O functions can be flexibly configured according to user needs.

High reliability:Adopting industrial grade design,it has good anti-interference and stability.

Easy to install:Easy to install and simple to maintain.

Product parameters

Number of input points:16/32 points

Number of output points:16/32 points

Number of analog input channels:4/8 channels

Sampling rate:1000 times/second

Working voltage:24V DC

Working temperature:-20℃~+60℃

Working humidity:5%~95%RH

Size:290mm×323mm×35mm

Weight:0.85kg

Product specifications

Shell material:metal

Protection level:IP30

Installation method:DIN rail

Product series

This product belongs to the ABB AC 800PEC series of I/O modules,which are used in conjunction with the AC 800PEC controller to form a complete automation system.

Product function

Data collection:Collecting digital and analog signals from on-site equipment.

Control output:Send control signals to the actuator based on control instructions.

Signal conversion:Implement the conversion between different types of signals.

Signal isolation:Provide electrical isolation to protect the control system.

Product Usage

Industrial automation:widely used in automation control systems for various industrial processes,such as chemical,metallurgical,power,etc.

Process control:used to connect various sensors and actuators to measure and control process variables.

Data collection:used to collect on-site data and transmit it to the upper computer.

application area

Process control system:As a component of the I/O system,it is used to connect field devices and control systems.

Distributed Control System:Used to build a distributed control system that enables centralized control of multiple devices.

SCADA system:used to connect on-site equipment and SCADA system,to achieve monitoring and management of processes.

summary

ABB UAD149A0011 3BHE014135R0011 is a powerful and flexible combination I/O module that can meet the needs of various industrial automation applications.It has the characteristics of high integration,high reliability,and easy installation,and is an important component of building automation systems.
