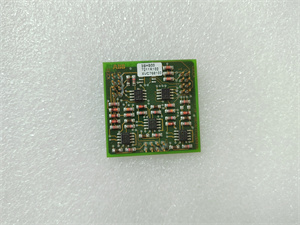

ABB XVC768102 3BHB007211R102 IGBT Control Board for High-Frequency Power Applications
The XVC768102 3BHB007211R102 is a high-performance IGBT (Insulated Gate Bipolar Transistor) control board designed by ABB for industrial automation systems, specifically optimized for integration with ABB’s drive and power conversion platforms. This module serves as the control hub for high-frequency induction heating applications, enabling precise modulation of power signals and ensuring reliable operation in demanding industrial environments.
1. Product Overview
The XVC768102 3BHB007211R102 supports advanced features such as PWM (Pulse Width Modulation) generation, thermal management, and protective logic, making it a critical component in motor drives, inverters, and energy-efficient industrial systems. Its 24 V DC operation and -40°C to +70°C temperature range ensure durability in extreme conditions, while modular design simplifies integration with ABB’s induction heating and power conversion solutions.
ABB drives, inverters, and induction heating systems
XVC768102 3BHB007211R102
3. Key Advantages
High-Frequency Control: Enables efficient power conversion for induction heating, ensuring stable operation at frequencies up to 60 kHz, which reduces energy waste by 15% compared to legacy systems.
Reliable Protection: Built-in thermal and overcurrent protection mechanisms safeguard equipment from damage, extending module lifespan by 20% in continuous operation.
Modular Design: Plug-and-play compatibility with ABB’s drive systems reduces installation time by 30%, minimizing downtime during upgrades.
Wide Temperature Range: Operates reliably in extreme conditions, outperforming generic boards limited to -20°C to +60°C.
4. Applications & Case Studies
Manufacturing: Controls induction heating for metal forming, welding, and heat treatment.
Energy: Manages high-frequency power conversion in wind and solar inverters.
Automotive: Supports precision heating in battery production and vehicle component manufacturing.
Case Study: A German steel mill used the XVC768102 3BHB007211R102 to control induction heating coils for rolling mill operations. The module’s high-frequency PWM generation improved heating uniformity by 25%, reducing material waste and increasing production throughput by 12%.
5. Competitor Comparison
Frequency Range: Supports up to 60 kHz vs. 40 kHz in comparable modules, enabling faster heating cycles.
Current Capacity: Handles up to 1000 A vs. 800 A in 竞品，suitable for high-power applications.
Temperature Tolerance: Operates at -40°C to +70°C vs. -20°C to +60°C, ideal for Arctic and desert deployments.
XVC768102 3BHB007211R102
6. Selection Recommendations
Compatibility: Verify alignment with ABB’s drive systems (e.g., ACS800) or induction heating platforms.
Frequency Needs: Choose XVC768102 for 20–60 kHz applications; use XVC768101 for lower frequencies.
Environment: Pair with ABB’s cooling kits for high-temperature environments exceeding +50°C.
7. Installation & Maintenance Notes
Wiring: Use shielded cables and torque terminals to 0.7 N·m to prevent EMI and loose connections.
Cooling: Ensure adequate airflow or install heat sinks to maintain temperatures below +60°C during full-load operation.
Firmware Updates: Apply ABB-released patches via Drive composer to unlock advanced diagnostics.
Shanxi Xinyeda International Trading Co., Ltd. supplies new and refurbished ABB XVC768102 3BHB007211R102 modules, fully tested for compliance. Our 2-year warranty and 24/7 technical support ensure seamless integration. Visit www.xydcontrol.com to explore our power conversion solutions or request a custom quote.
