Detailed Parameter Table
| Parameter Name | Parameter Value |
|---|---|
| Product Model | AMAT 0090-76110 |
| Manufacturer | Applied Materials (AMAT) |
| Product Category | VME Single Board Computer (SBC) |
| Operating Voltage | 5V DC ±5% |
| Processor | Motorola PowerPC 7457 |
| Processor Frequency | 1 GHz |
| Memory | Up to 512 MB SDRAM, 2 GB Flash |
| I/O Interfaces | Serial, Parallel, USB, PCI |
| Operating Temperature Range | -40°C to +85°C |
| Dimensions | 233.4 mm x 160 mm |
| Weight | 0.5 kg |
| Material | FR-4 Epoxy Glass |
| Surface Finish | Gold Immersion (ENIG) |
| Solder Mask | OSP (Organic Solderability Preservative) |
| Board Thickness | 1.6 mm |
| Certifications | ISO 9001 |

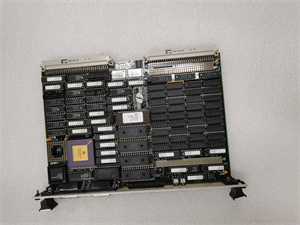

AMAT 0090-76110 VME PCB
Product Introduction
The AMAT 0090-76110 VME PCB is a high-performance single board computer (SBC) designed for use in VME systems. It is widely used in industrial automation, data acquisition, and signal processing applications。
Core Advantages and Technical Highlights
High-Performance Processor
The AMAT 0090-76110 features a Motorola PowerPC 7457 processor with a frequency of 1 GHz, ensuring rapid data processing and real-time control capabilities。
Ample Memory Capacity
It supports up to 512 MB of SDRAM and 2 GB of Flash memory, providing sufficient storage for complex control algorithms, data logging, and firmware updates。
Versatile I/O Interfaces
The board includes multiple interfaces such as serial, parallel, USB, and PCI, facilitating easy connectivity with various industrial devices and peripherals。
Wide Operating Temperature Range
The controller is designed to withstand extreme temperatures, making it suitable for both indoor and outdoor industrial environments。
High-Quality Construction
The PCB is constructed using FR4 material, known for its excellent electrical and mechanical properties. The OSP solder mask enhances solderability and protects against corrosion。
Compact and Lightweight Design
The compact form factor allows for easy integration into space-constrained industrial systems while maintaining portability。
Low Power Consumption
The controller operates efficiently, consuming minimal power while delivering high performance, which helps reduce energy costs and heat generation。

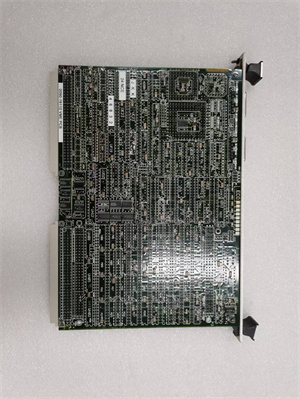

AMAT 0090-76110 VME PCB
Typical Application Scenarios
The AMAT 0090-76110 VME PCB is ideal for a variety of industrial applications, including:
-
Industrial Automation: For controlling and monitoring manufacturing processes。
-
Data Acquisition Systems: For collecting and processing real-time data from sensors and instruments。
-
Signal Processing: In applications requiring high-speed signal analysis and manipulation。
-
Test and Measurement Equipment: For precision testing and calibration of industrial devices。
-
Military and Aerospace: In systems requiring high reliability and ruggedness。
Related Model Recommendations
-
ABB 07AI91: An analog input module suitable for applications requiring precise analog signal processing。
-
ABB PM581: A PLC module suitable for small systems。
-
ABB PM866K01: A PLC module suitable for large-scale automation。
Installation, Commissioning, and Maintenance Instructions
Installation Preparation
Ensure the environment meets the specified temperature and humidity requirements. Use appropriate tools and safety equipment to secure the module in place. Connect the module to the control system according to the manufacturer’s guidelines。
Maintenance Suggestions
Regularly inspect the module for signs of wear or damage. Keep the unit clean and free from dust to prevent overheating and ensure efficient operation。
