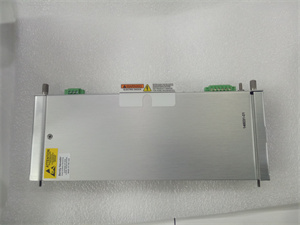

BENTLY NEVADA 146031-01 Transient Data Interface I/O Module
1. Product Description The BENTLY NEVADA 146031-01 is a high-performance transient data interface I/O module designed for real-time machinery health monitoring in critical industrial applications. As part of the 3500/22M Monitoring System, it bridges the gap between BENTLY’s 3500 Series racks and advanced analytics software like System 1, enabling seamless acquisition and transmission of steady-state and transient vibration waveforms. This module supports up to 16 channels of synchronous data collection, making it ideal for rotating equipment in power generation, oil & gas, and manufacturing sectors. With redundant configurations and TDXnet communication, the 146031-01 ensures reliable data integrity even in harsh environments.
2. Technical Specifications
Parameter
Specification
Model
146031-01
Function
Transient Data Interface I/O Module
Compatibility
BENTLY 3500/22M Monitoring System
Communication
10Base-T/100Base-TX Ethernet
Data Rate
Up to 50 kHz
Power Supply
220 VAC
Dimensions
2.5 cm × 11.2 cm × 24.2 cm
Weight
0.4 kg
Mounting Slot
Slot 1 (adjacent to power supply)
Redundancy Support
Triple Modular Redundancy (TMR)
BENTLY 146031-01
3. Advantages and Features
High-Speed Data Acquisition: Captures transient events (e.g., start-up/shutdown) with 50 kHz resolution for detailed waveform analysis.
Dual-Mode Operation: Supports both static and dynamic data recording, with optional expansion for high-resolution transient analysis.
Redundancy Assurance: TMR version ensures system reliability by comparing data across three independent channels.
System Integration: Seamless compatibility with System 1 for predictive maintenance and alarm management.
EMI Protection: Shielded design minimizes signal interference in industrial settings.
4. Application Areas and Use Cases Industry Applications:
Power Generation: Steam turbines and generators.
Oil & Gas: Compressors and pumps in offshore platforms.
Manufacturing: High-speed rotating machinery.
Case Study: A U.S. petrochemical plant reduced unplanned downtime by 35% using the 146031-01 to monitor compressor vibrations. Early detection of rotor misalignment via transient data analysis allowed proactive repairs, saving $800,000 annually.
5. Competitor Comparison
Superior Data Resolution: 50 kHz sampling rate outperforms legacy modules with 10–20 kHz limits.
Software Compatibility: Direct integration with System 1 for advanced diagnostics, reducing reliance on third-party tools.
BENTLY 146031-01
6. Selection Recommendations
System Compatibility: Ensure alignment with 3500 Series racks and 3500/42M monitors.
Redundancy Needs: Opt for TMR versions in critical applications requiring 99.99% uptime.
Data Requirements: Choose between Ethernet or fiber-optic connectivity based on plant network infrastructure.
7. Precautions
Installation: Install strictly in Slot 1 adjacent to power supplies to avoid communication errors.
Cabling: Use shielded Ethernet cables to minimize electromagnetic interference.
Firmware Updates: Regularly update firmware to access new features and security patches.
