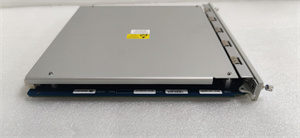

BENTLEY NEVADA 3500/91 190782-01 EGD Communication Gateway Module
1. Product Description
The BENTLEY NEVADA 3500/91 190782-01 is an Ethernet Global Data (EGD) communication gateway module designed for seamless integration of BENTLEY’s 3500 Series Machinery Protection System with industrial automation networks. It enables real-time transmission of critical machinery health data—including vibration, temperature, and speed—to supervisory control and data acquisition (SCADA), building management systems (BMS), and human-machine interfaces (HMI). Supporting protocols like EGD v2.01, Ethernet UDP/IP, and Modbus/TCP, the 3500/91 190782-01 ensures reliable connectivity in harsh environments, such as oil refineries, power plants, and manufacturing facilities. Its compact design and dual-channel redundancy enhance system availability, making it ideal for safety-critical applications.
2. Product Parameters
Parameter
Specification
Model
3500/91 190782-01
Protocol Support
EGD v2.01, Ethernet UDP/IP, Modbus/TCP
Ethernet Standards
IEEE 802.3 (10Base-T/100Base-TX)
Power Supply
24 Vdc ±10%
Operating Temperature
-30°C to +65°C ( -22°F to +150°F)
Rack Space
1 front slot + 1 rear slot (3500 Series)
Firmware Requirements
3500 Rack Configuration Software v3.70+
Redundancy
Dual-channel support (optional)
Data Update Rate
Sub-second response time
Weight
0.6 kg
3. Advantages and Features
Multi-Protocol Flexibility: Integrates with diverse automation systems using EGD, UDP/IP, and Modbus/TCP.
Real-Time Data Flow: Enables instantaneous transmission of machinery health data for proactive maintenance.
Wide Temperature Range: Operates reliably in extreme industrial environments.
Space-Efficient Design: Compact form factor reduces rack space requirements.
4. Application Areas and Case Studies
Oil & Gas: Connecting offshore platform turbines to SCADA systems for remote monitoring.
Power Generation: Integrating steam turbine data with plant-wide BMS for efficiency optimization.
Manufacturing: Transmitting motor vibration data to HMI for predictive maintenance in automotive assembly lines.
Case Study: A European power plant reduced unplanned downtime by 30% by deploying the 3500/91 190782-01 to monitor generator rotor vibrations, enabling early fault detection.
5. Competitor Comparison
The 3500/91 190782-01 outperforms alternatives through:
Dual-Channel Redundancy: Standard support for TMR configurations.
Faster Data Updates: Sub-second response times compared to slower legacy gateways.
6. Selection Recommendations
Complex Automation Networks: Opt for dual-channel redundancy to ensure continuous data flow.
Harsh Environments: Verify compatibility with IP67-rated enclosures for outdoor installations.
Software Integration: Ensure 3500 Rack Configuration Software v3.70+ is installed for seamless operation.
7. Precautions
Firmware Updates: Regularly update firmware to maintain protocol compatibility.
Network Security: Implement firewalls to protect against unauthorized access.
Cable Quality: Use shielded Ethernet cables to minimize EMI/RFI interference.
