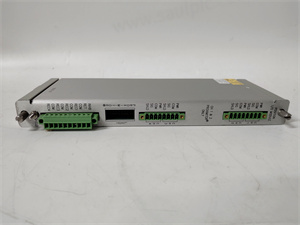

BENTLY 135137-01 Position I/O Module
1. Product Description
The BENTLY 135137-01 is a high-performance analog input/output (I/O) module designed for the 3500 Machinery Protection System, specifically engineered for critical industrial applications requiring precise position and vibration monitoring. This module supports real-time data acquisition from proximity probes, velocity sensors, and other analog devices, converting raw signals into digital measurements for analysis. Its compact design and advanced signal processing capabilities make it ideal for harsh environments such as oil refineries, power plants, and petrochemical facilities. The BENTLY 135137-01 ensures compliance with safety standards like API 670 and SIL 2, providing reliable protection against machinery failures.
2. Key Technical Parameters
| Parameter | Specification |
|---|---|
| Channels | 4 (Analog input/output) |
| Input/Output Range | 0–20 mA, 4–20 mA, ±10 VDC |
| Accuracy | ±0.01% of full scale |
| Response Time | <2 ms |
| Temperature Range | -40°C to +70°C |
| Compatibility | BENTLY 3500 Rack, 3300/7200 Series Probes |
3. Advantages and Features
- Precision Signal Conversion: Supports analog-to-digital and digital-to-analog conversion with high accuracy, ensuring reliable data for machinery diagnostics.
- Wide Compatibility: Works seamlessly with BENTLY’s 3300, 7200 series probes and Velomitor sensors.
- Safety Compliance: Meets SIL 2 requirements and API 670 standards for hazardous environments.
- Redundancy Support: Enables dual-channel configurations for system reliability in critical operations.
- Hot-Swap Capability: Allows module replacement without system shutdown, minimizing downtime.
4. Application Areas and Case Studies
Industries:
- Petrochemicals
- Oil and gas
- Power generation
- Manufacturing
Case Study:
A power plant in Texas integrated the BENTLY 135137-01 into its turbine monitoring system. By continuously measuring shaft displacement and vibration, the module detected a misalignment issue before it escalated, reducing repair costs by $500,000 and preventing a 72-hour outage.
A power plant in Texas integrated the BENTLY 135137-01 into its turbine monitoring system. By continuously measuring shaft displacement and vibration, the module detected a misalignment issue before it escalated, reducing repair costs by $500,000 and preventing a 72-hour outage.
5. Competitive Comparison
Compared to generic analog I/O modules, the BENTLY 135137-01 offers phasor-based analysis and SIL-rated safety features, making it uniquely suited for machinery protection applications. Its built-in diagnostic capabilities and compatibility with BENTLY’s ecosystem also reduce integration complexity compared to third-party solutions.
6. Selection Recommendations
- Compatibility: Verify compatibility with your 3500 Rack and sensor types.
- Environmental Needs: Ensure temperature and safety certifications match your site’s requirements.
- Cost-Effectiveness: While priced higher than basic modules, it reduces long-term maintenance and repair expenses.
7. Installation and Usage Notes
- Safety Compliance: Follow API 670 guidelines for installation in hazardous zones.
- Calibration: Regularly calibrate sensors and modules to maintain accuracy.
- Maintenance: Inspect wiring and connections quarterly to prevent signal degradation.
山西鑫业达国际贸易有限公司 is your trusted partner for BENTLY 135137-01 and other automation spare parts. Visit our website www.xydcontrol.com or contact us for sales and technical support.
