High Precision and Reliability: Equipped with digital signal processing (DSP) and internal barriers, the 135489-04 minimizes noise interference and ensures accurate data acquisition even in harsh environments.
Flexible Configuration: Supports user-programmable alarm thresholds and buffered sensor outputs, enabling tailored monitoring for specific machinery needs.
Compact Design: Lightweight and space-efficient, it simplifies installation and maintenance in industrial control systems.
Wide Temperature Range: Operates reliably across extreme temperatures, making it suitable for demanding industrial settings.

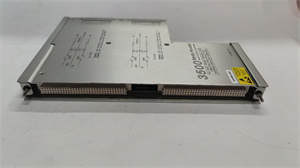

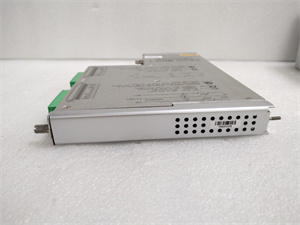

1. Product Overview The BENTLY 135489-04 is a high-performance Proximitor I/O module designed for machinery health monitoring in industrial applications. As part of the BENTLY 3500/40M series, this module integrates seamlessly with BENTLY’s advanced monitoring systems to provide real-time vibration and displacement measurements, ensuring proactive maintenance and reliable machine operation. With its rugged design and advanced signal processing capabilities, the 135489-04 supports critical industries such as oil and gas, power generation, and manufacturing.
2. Key Technical Parameters
Parameter
Specification
Channels
4 independent channels
Input Range
±100 mV
Sampling Rate
Up to 20 kHz
Signal Bandwidth
0.1–10 kHz
Alarm Thresholds
Up to 16 user-programmable setpoints
Operating Temperature
-40°C to +70°C
Compatibility
BENTLY 3500 series systems, proximity sensors, seismic monitors
3. Advantages and Features
High Precision and Reliability: Equipped with digital signal processing (DSP) and internal barriers, the 135489-04 minimizes noise interference and ensures accurate data acquisition even in harsh environments.
Flexible Configuration: Supports user-programmable alarm thresholds and buffered sensor outputs, enabling tailored monitoring for specific machinery needs.
Compact Design: Lightweight and space-efficient, it simplifies installation and maintenance in industrial control systems.
Wide Temperature Range: Operates reliably across extreme temperatures, making it suitable for demanding industrial settings.
4. Application Areas and Case Studies The 135489-04 excels in industries requiring continuous machinery health monitoring, including:
Manufacturing: Rotating equipment such as pumps and motors.
Energy: Gas turbines and generators in power plants.
Oil and Gas: Compressors and drilling machinery.
Case Study: A major petrochemical plant in Texas integrated the 135489-04 into its 3500 monitoring system to track vibrations in centrifugal pumps. The module’s early fault detection capabilities reduced unplanned downtime by 30%, saving over $200,000 annually.
5. Competitive Comparison Compared to standard I/O modules, the 135489-04 offers:
Faster Sampling: 20 kHz vs. typical 10 kHz in comparable products.
Enhanced Safety: Built-in barriers for hazardous area compliance.
Easier Integration: Plug-and-play compatibility with BENTLY’s 3500 series.
6. Selection Recommendations
Compatibility: Ensure compatibility with existing BENTLY 3500 systems and sensors.
Environment: Choose modules with appropriate temperature ratings for your operational conditions.
Scalability: Consider the number of channels needed for future expansions.
7. Installation and Maintenance Notes
Safety: Follow API 670 standards for installation in hazardous environments.
Calibration: Regularly verify sensor alignment and signal integrity.
Upgrades: Use BENTLY’s official software for firmware updates and configuration changes.
山西鑫业达国际贸易有限公司 is your trusted partner for BENTLY 135489-04 and other automation spare parts. Visit www.xydcontrol.com or contact us for sales and technical support.
