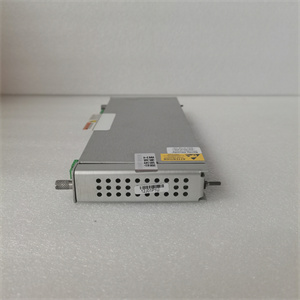

BENTLY NEVADA 146031-01 Transient Data Interface (TDI) I/O Module

1. Product Description

The BENTLY NEVADA 146031-01 is a Transient Data Interface (TDI) I/O module designed for BENTLY’s 3500/22M Monitoring System, enabling real-time data integration between rotating machinery and BENTLY’s System 1 Machinery Health Management Software. It captures steady-state and transient vibration, displacement, and temperature data from M-series monitors (e.g., 3500/40M, 3500/42M) and streams it to host systems via Ethernet. This module supports predictive maintenance, fault diagnostics, and system optimization in critical industrial applications.

2. Technical Parameters

Parameter Specification
Model 146031-01
Type Transient Data Interface I/O Module
Interface 10Base-T/100Base-TX Ethernet
Data Capture Steady-state (default), dynamic/transient (with optional channel enable disk)
Power Supply 24 VDC ±10%
Operating Temperature -30°C to +65°C
Storage Temperature -40°C to +85°C
Humidity 95% non-condensing
Mounting 3500 rack slot 1 (near power supply)
Redundancy Support Optional triple modular redundancy (TMR)

3. Advantages and Features

  • Unified Data Management: Combines static and high-frequency transient data for comprehensive machinery health analysis.
  • Modular Flexibility: Occupies one rack slot and supports expansion with optional channel enable disks for advanced transient recording.
  • Redundancy Options: TMR version ensures continuous operation by comparing data across three independent channels, reducing single-point failures.
  • Industrial Ruggedness: Withstands extreme temperatures and vibrations, making it suitable for offshore, petrochemical, and power generation environments.
Case Study: A U.S. power plant reduced turbine downtime by 25% using the 146031-01 to detect rotor misalignment through transient waveform analysis.

4. Application Fields and Case Studies

Industries:
  • Power generation, oil and gas, petrochemicals, and heavy manufacturing.
典型应用:
  • Turbines, compressors, pumps, and generators.
Case Study: A European refinery improved compressor reliability by 30% by integrating the module with System 1 software to monitor bearing wear in real time.

5. Competitive Comparison

The BENTLY NEVADA 146031-01 outperforms alternatives with:
  • Dual-Data Support: Simultaneous steady-state and transient data capture, whereas competitors often require separate modules.
  • TMR Redundancy: Optional triple-channel redundancy for mission-critical systems.
  • Wide Temperature Range: Operates in -30°C to +65°C, surpassing standard industrial modules.

6. Selection Recommendations

  • Data Requirements: Choose the standard version for steady-state monitoring; add channel enable disks for transient data.
  • Redundancy Needs: Opt for TMR configuration in safety-critical applications (e.g., offshore platforms).
  • System Compatibility: Ensure compatibility with BENTLY’s 3500/22M system and M-series monitors.

7. Precautions

  • Installation: Install in slot 1 of the 3500 rack to ensure proper grounding and airflow.
  • Compatibility: Not interchangeable with legacy TDI modules; verify software and firmware versions.
  • EMI Protection: Use shielded Ethernet cables in high-noise environments.
