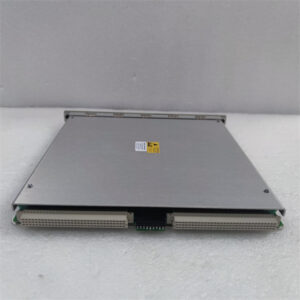

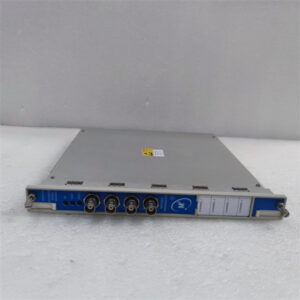

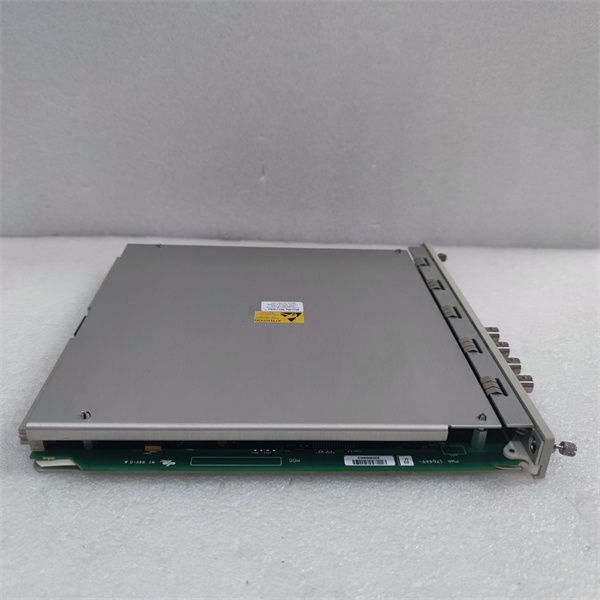

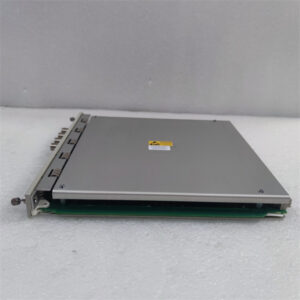

BENTLY NEVADA 3500/42M Proximitor/Seismic Monitor



1. Product Description
The BENTLY NEVADA 3500/42M is a four-channel Proximitor/Seismic Monitor designed for real-time vibration and position monitoring in critical rotating machinery. As part of the 3500 Series Monitoring System, it integrates proximity and seismic transducers to provide accurate measurements for machinery health assessment. With configurable alarm setpoints and dual-channel redundancy options, the 3500/42M ensures reliable protection against equipment failures in industries like power generation, oil & gas, and manufacturing. Its compact design and epoxy-sealed front panel make it suitable for harsh environments, while intuitive LED indicators enable quick status checks.
2. Technical Specifications
Parameter Specification
Model 3500/42M
Function Four-channel vibration/position monitor
Input Types Proximity (eddy current) and seismic sensors
Output Signal 4–20 mA analog, relay contacts (SPDT)
Power Supply 24 VDC ±10% (via 3500 Rack)
Operating Temperature -40°C to +85°C
Humidity Range 0–95% non-condensing
Alarm Setpoints Configurable for static values (alert/danger)
Mounting Slot Slots 3–6 in 3500 Rack
Weight 1.1 kg
BENTLY 3500/42M

BENTLY 3500/42M

3. Advantages and Features
  • Multi-Function Monitoring: Simultaneously tracks radial vibration, thrust position, eccentricity, and acceleration for comprehensive diagnostics.
  • User-Programmable Alarms: Customizable thresholds for alert/danger levels via 3500 Rack Configuration Software.
  • Dual-Channel Redundancy: Optional redundant setup (e.g., 3500/42M-01-00) for mission-critical systems.
  • Rugged Design: Epoxy-sealed construction withstands EMI, shock, and extreme temperatures.
  • Ease of Integration: Front-panel LEDs and modular design simplify installation and maintenance.
4. Application Areas and Use Cases
Industry Applications:
  • Power Generation: Steam turbines, generators.
  • Oil & Gas: Compressors, pumps in offshore platforms.
  • Manufacturing: High-speed rotating machinery.
Case Study: A European steel plant reduced vibration-related downtime by 40% using the 3500/42M to monitor rolling mill bearings. Early detection of misalignment via real-time vibration analysis prevented costly repairs.
5. Competitor Comparison
  • Higher Channel Density: Four-channel capacity vs. typical two-channel competitors.
  • Wider Temperature Range: Operates at -40°C to +85°C, surpassing modules limited to 0–70°C.
  • Flexible Redundancy: Optional dual-channel redundancy without full TMR complexity.
    BENTLY 3500/42M

    BENTLY 3500/42M

6. Selection Recommendations
  • Channel Requirements: Opt for 3500/42M-01-00 for dual-channel redundancy or 3500/42M-02-00 for four-channel operation.
  • Environment: Choose models with fiber-optic connectivity for EMI-prone environments.
  • Budget: Non-redundant configurations balance cost and reliability for non-critical applications.
7. Precautions
  • Installation: Ensure proper grounding and avoid electrostatic discharge during handling.
  • Sensor Calibration: Regularly verify transducer alignment and signal integrity.
  • Software Configuration: Use 3500 Rack Configuration Software to set alarm thresholds and enable redundant channels.
