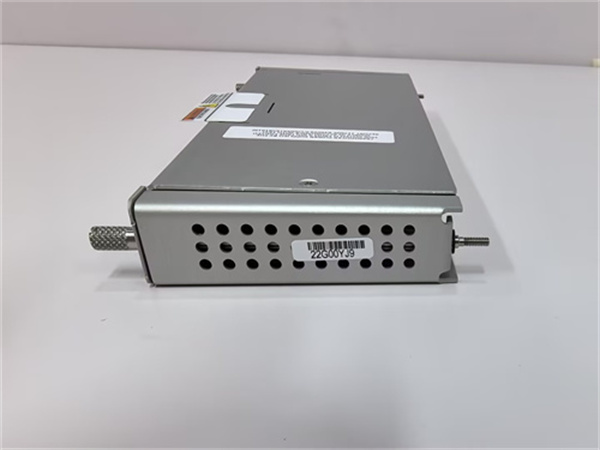

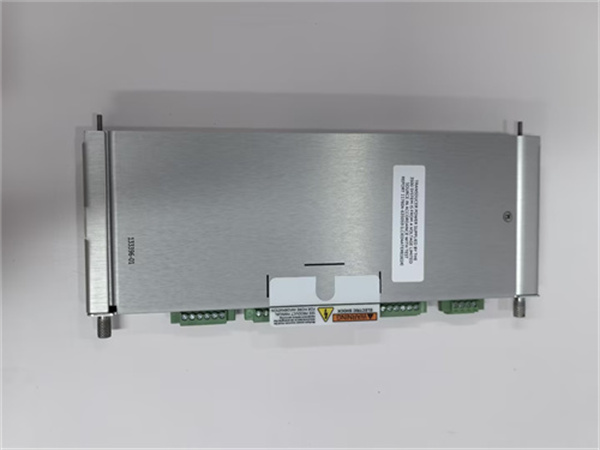

The BENTLY NEVADA 3500/54 133396-01 is a high-reliability overspeed detection I/O module designed for critical rotating machinery protection systems. Part of the 3500 Series by BENTLY Nevada, this module supports redundant configurations (2-out-of-2 or 3-out-of-3 voting) to meet API 670 and API 612 standards for safety-critical applications. It interfaces with proximity probes or magnetic pickups to monitor rotational speed, triggering rapid shutdowns to prevent catastrophic failures in turbines, compressors, and pumps.
2. Product Parameters
Parameter
Specification
Model
3500/54 133396-01
Brand
BENTLY Nevada
Input Type
Proximity probe or magnetic pickup
Voltage Range
+10 VDC to -24 VDC (internally clamped)
Frequency Range
0.0167 Hz to 10 kHz
Operating Temperature
-30°C to +65°C
Weight
0.45 kg
Certifications
CE, API 670 (optional)
Redundancy Support
2-out-of-2 or 3-out-of-3 voting
3. Advantages and Features
Rapid Response: Triggers shutdowns in milliseconds to protect machinery from overspeed events.
Redundant Design: Dual-channel configuration ensures system reliability even during component failures.
API Compliance: Meets rigorous safety standards for oil & gas and power generation industries.
User-Friendly Interface: Front-panel LEDs for status monitoring (OK, TX/XR, bypass, test mode, alarms).
Flexible Threshold Settings: Auto or manual threshold adjustment with 0.2–2.5 V hysteresis.
4. Application Areas and Case Studies
Oil & Gas: Monitoring gas turbines in offshore platforms.
Power Generation: Protecting steam turbines in nuclear power plants.
Manufacturing: Preventing overspeed in high-speed rotating equipment.
Case Study: A Middle Eastern refinery reduced downtime by 35% using the 3500/54 133396-01 to monitor compressor trains, detecting speed deviations 50% faster than legacy systems.
5. Competitor Comparison
Compared to alternative overspeed modules, the 3500/54 133396-01 offers:
Higher Redundancy: Native support for 3-out-of-3 voting systems.
Faster Sampling: 10 kHz frequency response for precise speed measurements.
Simplified Integration: Direct compatibility with BENTLY’s 3500 Series racks and sensors.
6. Selection Recommendations
System Requirements: Ensure compatibility with your 3500 rack’s power supply and redundancy needs.
Environment: Verify temperature and vibration resistance for your installation site.
Safety Standards: Choose optional API 670 certification for critical applications.
7. Precautions
Installation: Follow BENTLY’s wiring guidelines to avoid signal interference.
Calibration: Regularly verify sensor alignment and signal thresholds.
Testing: Perform periodic bypass and test mode checks to ensure module functionality.
山西鑫业达国际贸易有限公司 is your trusted partner for BENTLY NEVADA 3500/54 133396-01 and other automation spare parts. Visit www.xydcontrol.com or contact us for sales and technical support.
