Flexible Logic Configuration: Each relay can execute AND/OR logic across multiple monitor channels, enabling customized safety interlocks.
Space-Saving Design: Four channels in a single module optimize rack space compared to 8–12-channel alternatives.
High Reliability: Epoxy-sealed construction resists vibration, dust, and EMI/RFI interference.
Safety Compliance: Supports SIL 2-rated systems and hazardous area certifications (e.g., ATEX/IECEx) with voltage restrictions.
Case Study: A U.S. power plant reduced generator downtime by 20% using the 3500/32 to trigger cooling system shutdowns during excessive vibration events.
The BENTLY NEVADA 3500/32 is a compact, full-height relay output module designed for the 3500 Machinery Monitoring System. It provides four independent, user-programmable relay outputs for critical machinery protection, triggering alarms, shutdowns, or control actions based on configurable logic (AND/OR). Ideal for harsh industrial environments, the module supports applications in power generation, petrochemical, and manufacturing sectors, ensuring reliable operation and reduced downtime.
2. Technical Parameters
Parameter
Specification
Model
3500/32
Channels
4 (SPDT relays, 250VAC/30VDC, 5A)
Relay Life
100,000 operations
Power Supply
Derived from 3500 rack (e.g., 3500/15)
Power Consumption
3.5W (typical)
Logic Programming
AND/OR voting for alarm tripping
Mounting
Insertable into 3500 rack’s right-hand slots
Weight
0.8 kg (1.76 lbs)
Operating Temperature
-30°C to +65°C

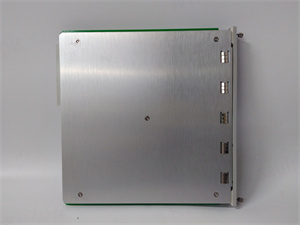

Bently Nevada 3500/32
3. Advantages and Features
Flexible Logic Configuration: Each relay can execute AND/OR logic across multiple monitor channels, enabling customized safety interlocks.
Space-Saving Design: Four channels in a single module optimize rack space compared to 8–12-channel alternatives.
High Reliability: Epoxy-sealed construction resists vibration, dust, and EMI/RFI interference.
Safety Compliance: Supports SIL 2-rated systems and hazardous area certifications (e.g., ATEX/IECEx) with voltage restrictions.
Case Study: A U.S. power plant reduced generator downtime by 20% using the 3500/32 to trigger cooling system shutdowns during excessive vibration events.
4. Application Fields and Case Studies
Industries:
Power generation, petrochemicals, manufacturing, and marine systems.
典型应用:
Turbines, compressors, pumps, and motors.
Case Study: A petrochemical plant minimized compressor failures by 25% by programming the module to activate shutdowns when dual vibration monitors exceeded thresholds.
5. Competitive Comparison
The BENTLY NEVADA 3500/32 outperforms alternatives with:
Higher Channel Density: Four channels in a compact form factor.
Dual-Mode Logic: Configurable voting for enhanced safety.
Certifications: Built-in support for SIL and hazardous area standards.

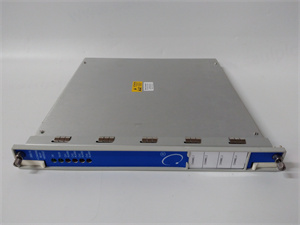

Bently Nevada 3500/32
6. Selection Recommendations
Small-Scale Needs: Choose this module for applications requiring up to four relay outputs.
System Compatibility: Ensure compatibility with 3500 racks and monitor modules (e.g., 3500/42M).
Safety-Critical Systems: Opt for redundant power supplies (e.g., 3500/15) and verify voltage compliance for SIL-rated installations.
7. Precautions
Voltage Limitations: For hazardous area or SIL applications, use voltages ≤250VAC/30VDC to comply with certifications.
Configuration: Use BENTLY’s 3500 Rack Configuration Software to program relay logic.
Maintenance: Regularly inspect relay contacts and ensure proper ventilation.
山西鑫业达国际贸易有限公司 is your trusted partner for BENTLY NEVADA 3500/32 and automation spare parts. Visit www.xydcontrol.com or contact us for sales and technical support.
