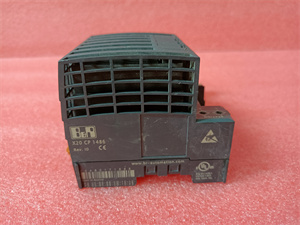

The B&R X20CP1486 is a high-performance CPU module designed for B&R’s X20 modular I/O system, catering to industrial automation and machine control applications. With a 1.2 GHz dual-core processor and 1 GB DDR3 memory, this module delivers rapid data processing and multitasking capabilities. Equipped with Ethernet/IP, PROFINET, and Modbus RTU interfaces, the X20CP1486 supports seamless integration with diverse industrial networks. Its compact design (115 × 115 × 60 mm) and wide operating temperature range (-40°C to +70°C) make it suitable for harsh environments.
2. Technical Parameters
Parameter
Specification
Processor
1.2 GHz dual-core ARM Cortex-A9
Memory
1 GB DDR3 + 4 GB eMMC
Interfaces
Ethernet/IP, PROFINET, Modbus RTU, USB 2.0
Power Supply
24 VDC (±15%)
Operating Temperature
-40°C to +70°C (-40°F to +158°F)
Storage Temperature
-40°C to +85°C (-40°F to +185°F)
Weight
0.3 kg (0.66 lbs)
Bus System
X20 Bus
Real-Time Clock
Built-in
3. Advantages and Features
High Performance: Dual-core processor ensures fast response times for complex automation tasks.
Flexible Connectivity: Supports multiple industrial protocols for versatile network integration.
Rugged Design: Extended temperature range and vibration resistance (IEC 60068-2-6) for harsh conditions.
Energy Efficiency: Low power consumption (≤8 W) reduces operational costs.
Remote Management: Enables remote programming and diagnostics via B&R’s Automation Studio.
Case Study: A German automotive manufacturer reduced production line cycle times by 12% using the X20CP1486 to synchronize robotic welding processes, improving throughput while maintaining precision.
4. Application Areas
Manufacturing: Robotic control, assembly lines, and quality inspection systems.
Energy: Smart grid monitoring and renewable energy installations.
Transportation: Railway signaling and airport baggage handling systems.
Food & Beverage: Hygienic processing lines with strict environmental requirements.
Larger Memory: 1 GB DDR3 + 4 GB eMMC vs. 512 MB + 2 GB in comparable models.
Expanded Protocol Support: Native Ethernet/IP and PROFINET compatibility without add-on modules.
6. Selection Recommendations
Processing Needs: Choose the X20CP1486 for applications requiring real-time data analysis or motion control.
Network Requirements: Opt for this model if PROFINET or Ethernet/IP connectivity is critical.
Scalability: Pair with X20 I/O modules (e.g., X20DI3531) for large-scale automation systems.
7. Precautions
Power Stability: Ensure a clean 24 VDC supply to avoid voltage fluctuations.
Cooling: Adequate ventilation is required for continuous operation at high temperatures.
Firmware Updates: Regularly update firmware to access new features and security patches.
EMI Protection: Shield cables to prevent electromagnetic interference in sensitive environments.
