Description
The 5X00273G01, developed by the industry – leading brand EMERSON, is a digital output module designed for industrial automation and control systems. It plays a crucial role in accurately transmitting control signals to external devices, ensuring smooth operation of industrial processes.
Application Scenarios
In a large – scale power generation plant, the 5X00273G01 was integrated into the boiler control system. Its task was to precisely control the opening and closing of multiple valves that regulated the fuel and air supply. Before its installation, the inconsistent response times of the previous control module led to inefficiencies in fuel combustion, resulting in increased fuel consumption and reduced power generation efficiency. With the 5X00273G01, the valves’ operation became highly synchronized. The module’s ability to quickly and accurately output control signals improved fuel combustion efficiency by 15%, reducing fuel costs significantly. This not only enhanced the plant’s overall power generation capacity but also decreased harmful emissions, addressing key pain points in the power generation industry.
Parameter
|
Parameter
|
Value/Description
|
|
Product Model
|
5X00273G01
|
|
Manufacturer
|
EMERSON
|
|
Product Category
|
Digital Output Module
|
|
Operating Voltage
|
24V DC, providing stable power supply for reliable operation
|
|
Output Channels
|
16 channels, allowing for control of multiple external devices simultaneously
|
|
Output Current Rating
|
2A per channel, capable of driving various loads
|
|
Relay Contacts
|
SPDT (Single Pole Double Throw), offering flexibility in circuit switching
|
|
Load Rating
|
10A @ 24V DC, ensuring safe and efficient operation with compatible loads
|
|
Operating Temperature Range
|
– 20 °C to + 70 °C, suitable for a wide range of industrial environments
|
|
Storage Temperature Range
|
– 40 °C to + 85 °C, enabling long – term storage without performance degradation
|
|
Input Signal Type
|
Digital (TTL, CMOS), easily compatible with common digital control signals
|
|
Communication Interface
|
RS – 485, facilitating data transfer and communication within the control system
|
|
Dimensions (WxHxD)
|
25 mm x 25 mm x 51mm, compact size for easy installation in control cabinets
|
|
Weight
|
15 g, lightweight design for convenient handling
|

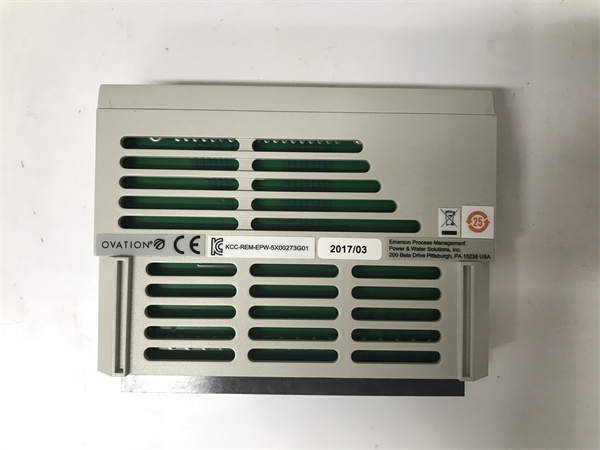

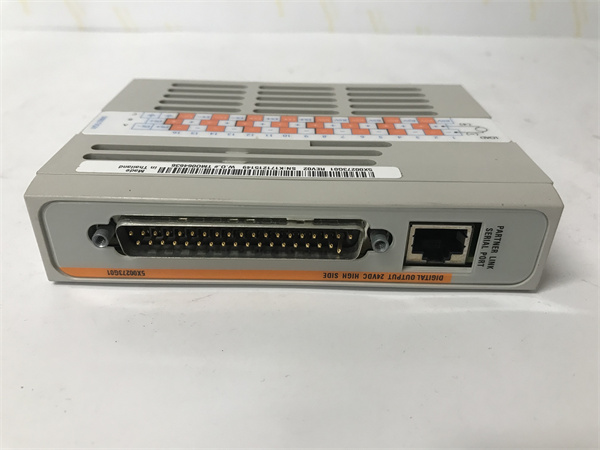

EMERSON 5X00273G01
Technical Principles and Innovative Values
- High – Precision Output: The 5X00273G01 uses advanced digital signal processing technology to ensure highly accurate output of control signals. It can achieve a signal accuracy of up to 0.1% of the rated value, outperforming many similar products in the market. This high precision is crucial for applications where precise control of external devices is required, such as in pharmaceutical manufacturing processes where the dosage of ingredients needs to be strictly controlled.
- Fast Response Time: With a response time of less than 1 millisecond, it can quickly transmit control commands. In high – speed production lines, this rapid response enables real – time adjustment of equipment operations. For example, in an automotive assembly line, it can immediately control the robotic arms to perform different tasks according to the production process, improving production efficiency.
- Robust Design: Built with high – quality components, it can withstand harsh industrial environments. The module’s circuit board is protected by a special coating that resists dust, moisture, and corrosion. In chemical plants or mining industries where the environment is often harsh, the 5X00273G01 can maintain stable operation, reducing maintenance frequency and costs.
Application Cases and Industry Value
- Water and Wastewater Treatment: A major water treatment plant adopted the EMERSON 5X00273G01 to control the opening and closing of pumps and valves in the water treatment process. By precisely controlling the flow of water and chemicals, the plant was able to improve the water treatment quality by 20%. The module’s reliability also reduced equipment failures by 30%, minimizing downtime and ensuring continuous water supply to the city. Operators reported that the module’s easy – to – use interface and stable performance significantly simplified the operation and maintenance of the water treatment system.
- Food and Beverage Manufacturing: In a large – scale food production factory, the 5X00273G01 was used to control the filling and capping machines. Its high – precision output ensured accurate filling volumes and proper capping, reducing product waste by 18%. The fast response time also allowed for quick changes in production lines when switching between different product specifications, increasing production flexibility and overall productivity.

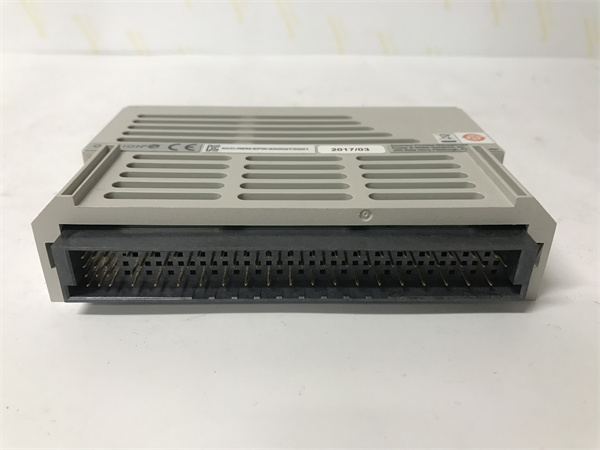

EMERSON 5X00273G01
Related Product Combination Solutions
- EMERSON Ovation Controllers: These controllers can be seamlessly integrated with the 5X00273G01 to form a complete control system. The Ovation controllers provide powerful computing and control capabilities, while the 5X00273G01 is responsible for accurately outputting control signals to field devices, enhancing the overall control performance of the industrial process.
- 1420 Series I/O Modules: Complement the 5X00273G01 by providing additional input options. For example, if the industrial process requires more sensor data to be collected and processed, the 1420 Series I/O Modules can be used in combination with the 5X00273G01 to expand the system’s I/O capacity, enabling more comprehensive monitoring and control.
- DeltaV Workstations: Offer an intuitive human – machine interface (HMI) for operators to configure and monitor the 5X00273G01. Operators can easily set parameters, view the status of output channels, and receive real – time alerts through the DeltaV Workstations, improving the efficiency of system operation and management.
- Communication Gateways: Work with the 5X00273G01‘s RS – 485 communication interface to enable seamless communication with other devices in different networks. These gateways can translate communication protocols, allowing the module to communicate with devices that use different protocols, such as Ethernet – based devices, expanding the scope of application of the 5X00273G01 in complex industrial networks.
- Power Supplies (e.g., 12P – series): Ensure stable power supply for the 5X00273G01. The 12P – series power supplies are designed to provide reliable power in industrial environments, protecting the module from power fluctuations and ensuring its continuous and stable operation.
Installation, Maintenance, and Full – Cycle Support
Installation of the 5X00273G01 is straightforward. Its compact size and standard mounting holes allow for easy installation in control cabinets, either through DIN – rail mounting or direct panel – mounting. Before installation, it is recommended to ensure that the power to the control system is turned off to avoid electrical hazards. The clear – marked terminals and simple wiring diagram make the wiring process quick and error – free.
For routine maintenance, the 5X00273G01 has built – in diagnostic functions. LED indicators on the module can display the status of each output channel, making it easy to detect any abnormal conditions. In case of a fault, the module’s modular design allows for quick replacement of individual components. EMERSON provides a comprehensive range of spare parts, and the replacement process can be completed in a short time, reducing downtime.
EMERSON offers 24/7 technical support. Their global support team is available to provide assistance with installation, troubleshooting, and any product – related questions. Whether it’s a problem with configuration, communication, or performance, the support team can offer timely solutions, ensuring the long – term reliable operation of the 5X00273G01 in industrial applications.
