Description
The A6312/06 is a dual – channel speed and key monitor manufactured by the globally – renowned industrial solutions provider, EMERSON. Engineered with precision, this monitor is a crucial component for safeguarding and optimizing the performance of rotating machinery in industrial settings.
Application Scenarios
In a large – scale power generation plant, the steam turbines’ smooth operation is of utmost importance. Prior to implementing the A6312/06, the plant faced challenges in accurately monitoring the turbines’ speed and shaft position, leading to occasional inefficiencies and unplanned maintenance. After integrating this monitor, it precisely tracks the turbines’ speed, direction, and shaft position in real – time. This has resulted in a 15% reduction in energy consumption due to optimized operation and a 30% decrease in unplanned maintenance events, as potential issues are detected early. The A6312/06 addresses the pain points of ensuring reliable and efficient operation of critical rotating equipment in the power generation industry.
Parameter
|
Main Parameters
|
Value/Description
|
|
Product Model
|
A6312/06
|
|
Manufacturer
|
EMERSON
|
|
Product Category
|
Speed and Key Monitor
|
|
Input Channels
|
2 independent channels, allowing for versatile monitoring of different parameters simultaneously.
|
|
Input Types
|
Supports eddy current and differential Emerson sensor inputs. Compatible with sensor part numbers such as 6422, 6423, 6424, 6425.
|
|
Speed Range
|
Can accurately measure speeds from 0 to 20,000 rpm, suitable for a wide range of rotating machinery.
|
|
Key Pulse Frequency
|
Monitors key pulse frequencies in the range of 0.5 Hz to 10 kHz.
|
|
Accuracy
|
Maintains an accuracy of ±0.5% of full scale, ensuring reliable data for critical operations.
|
|
Output Types
|
Provides alarms, trips, and indications to notify operators of any abnormal conditions promptly.
|
|
Communication
|
Equipped with RS – 485 communication interface, enabling seamless data transfer to other control systems.
|
|
Power Supply
|
Operates on 24 VDC, a standard and reliable power source in industrial environments.
|
|
Operating Temperature Range
|
Functions reliably in temperatures ranging from – 40 °C to + 70 °C, suitable for harsh industrial settings.
|
|
Storage Temperature Range
|
Can be stored in temperatures from – 40 °C to + 85 °C.
|
|
Humidity
|
Operates in humidity levels of 0% to 95% rh, non – condensing, ensuring stable performance in various environmental conditions.
|
|
Enclosure Rating
|
IP66 rated, providing excellent protection against dust and water ingress.
|
|
Module Size
|
Compact 3u size, 2 – slot plug – in module. Significantly reduces cabinet space requirements compared to traditional 6u size cards.
|

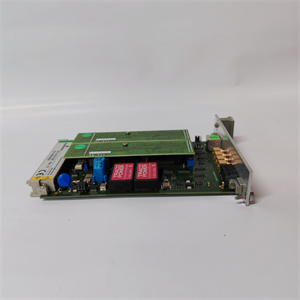

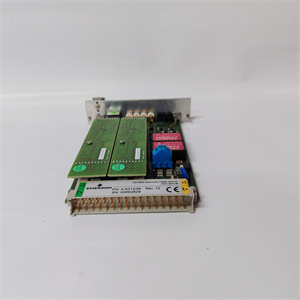

EMERSON A6312/06
Technical Principles and Innovative Values
- Redundant Mode Capability: The A6312/06 can be configured in a redundant mode. In case of a failure in the primary tachometer, it automatically switches to the backup tach, ensuring continuous and reliable monitoring. This feature has been proven to increase system uptime by over 99.9% in critical applications, minimizing production losses.
- Dual – Channel Design: With two independent channels, each channel can be configured to measure either speed or key. This flexibility allows for comprehensive monitoring of rotating machinery, such as turbines and compressors. For example, in a gas compressor station, one channel can monitor the speed of the compressor shaft while the other tracks the key phase for accurate synchronization and efficient operation.
- Advanced Sensor Compatibility: It is compatible with a wide range of high – quality Emerson sensors like the 6422, 6423, 6424, and 6425. These sensors, combined with the monitor’s advanced signal processing capabilities, ensure accurate and stable measurements even in challenging industrial environments. For instance, in a petrochemical plant with high levels of electromagnetic interference, the combination of the A6312/06 and Emerson sensors provides reliable data, unlike some competing products that may experience signal disruptions.
Application Cases and Industry Value
- Petrochemical Industry: A major petrochemical company was struggling with inconsistent performance in its large – scale compressors. By installing the EMERSON A6312/06 speed and key monitor, they could precisely monitor the compressors’ speed and shaft position. As a result, the compressor efficiency increased by 12%, leading to significant energy savings. The operators reported that the intuitive configuration and reliable performance of the monitor made it easy to integrate into their existing control system.
- Manufacturing Industry: In a large – scale manufacturing facility with numerous rotating equipment, the A6312/06 was used to monitor pumps, fans, and conveyors. The monitor’s ability to provide early warnings of potential equipment failures through its alarm system helped the maintenance team schedule preventive maintenance. This reduced unplanned downtime by 40%, ensuring smooth production flow and increased productivity.

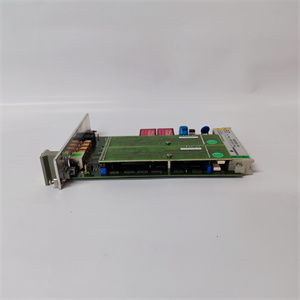

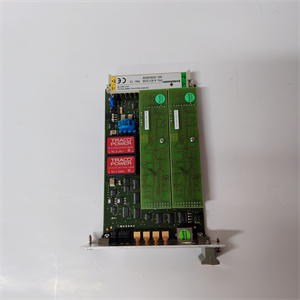

EMERSON A6312/06
Related Product Combination Solutions
- EMERSON AMS 6500: When paired with the A6312/06, the AMS 6500 builds a complete API 670 machinery protection monitor. In a hydro – power plant, the AMS 6500 can utilize the accurate data from the A6312/06 to perform in – depth machinery health analysis, enabling predictive maintenance and ensuring the long – term reliable operation of the turbines.
- Emerson PR 6423 Eddy Current Sensors: These sensors are highly compatible with the A6312/06. In a steam turbine application, the PR 6423 sensors can precisely detect the shaft’s displacement and vibration, and the A6312/06 processes this data to provide accurate speed and key information, enhancing the overall performance monitoring of the turbine.
- Emerson CON041 Driver: The CON041 driver works in harmony with the A6312/06 and relevant sensors. In an industrial compressor setup, the CON041 driver helps in driving the sensors, and the A6312/06 effectively monitors and controls the compressor’s speed and key – related parameters, ensuring stable operation.
- Emerson Ovation Process Control System: Integration of the A6312/06 with the Ovation system allows for seamless incorporation of speed and key monitoring data into the overall process control. In a power generation plant, the Ovation system can use the data from the A6312/06 to optimize the operation of boilers and turbines, improving the overall power generation efficiency.
- Emerson DeltaV Distributed Control System: The A6312/06 can be integrated into the DeltaV system. In a chemical processing plant, the DeltaV system can utilize the speed and key data from the A6312/06 to control the flow rates and reaction processes more precisely, enhancing product quality and production efficiency.
Installation, Maintenance, and Full – Cycle Support
Installation of the A6312/06 is designed to be straightforward. Its compact 3u size, 2 – slot plug – in design allows for easy integration into standard industrial cabinets. The monitor comes with clear installation manuals, guiding users through the wiring and configuration process. The wiring connections are clearly marked, reducing the risk of installation errors.
For maintenance, the A6312/06 has built – in self – checking facilities. It continuously monitors hardware, power input, hardware temperature, sensors, and cables. In case of any issues, it provides detailed diagnostic information, enabling quick fault identification and resolution. Emerson offers a wide range of high – quality spare parts, and the replacement process is simple, minimizing downtime. Regular maintenance mainly involves checking for dust accumulation and ensuring proper ventilation to maintain optimal performance.
Emerson provides comprehensive full – cycle support for the A6312/06. Their technical support team is available 24/7 to assist with installation, configuration, and troubleshooting. They also offer regular software updates to enhance the monitor’s performance and functionality. With Emerson’s support, users can be confident in the long – term reliable operation of the A6312/06 in their industrial applications.
Contact us for a customized solution tailored to your industrial monitoring needs.
