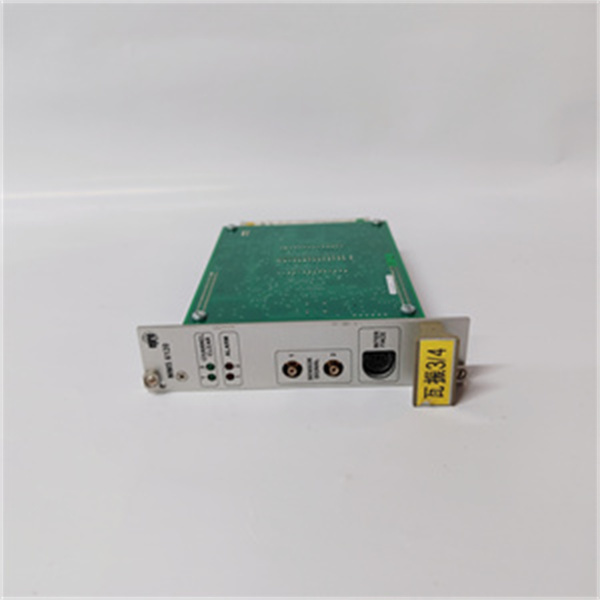

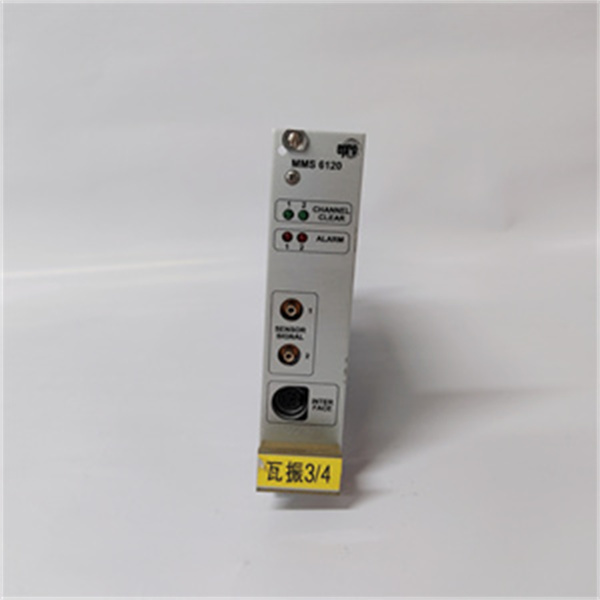

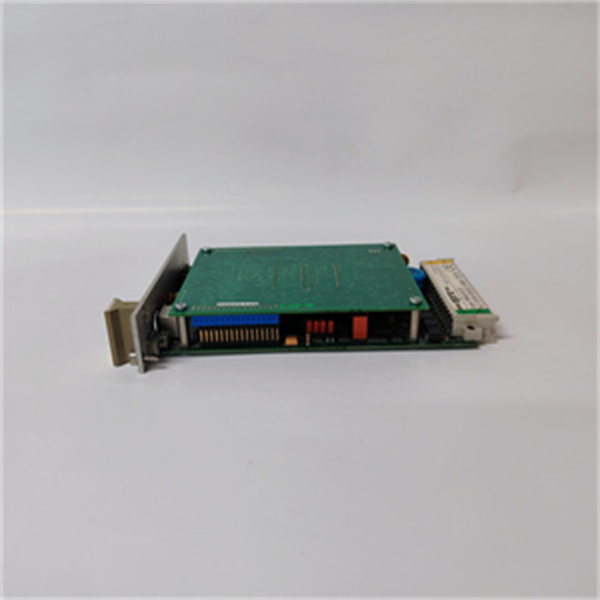

EPRO MMS6120-9100-00002C-08

Product introduction

The EPRO MMS6120-9100-00002C-08 is a compact machinery protection system controller developed by EPRO (now part of Siemens Energy), engineered to deliver centralized monitoring for mid-scale rotating equipment—from industrial pumps to small gas turbines—where excess channel capacity (of 8-channel models) would be unnecessary and costly. Unlike the full-sized EPRO MMS6120-9100-00002-10, the EPRO MMS6120-9100-00002C-08 features 4 analog inputs and a 2U rack profile, balancing functionality with space and cost efficiency while retaining SIL 2 safety certification—critical for applications where equipment failure risks production losses but doesn’t require large-scale monitoring.

As a optimized variant in EPRO’s MMS6000 series, the EPRO MMS6120-9100-00002C-08 excels in scenarios like small power plants or chemical processing skids. For example, a regional water treatment plant uses the EPRO MMS6120-9100-00002C-08 to monitor two large booster pumps: each pump connects to 2 EPRO PR9268 vibration sensors (one per bearing), and the controller sends real-time data to the plant’s Siemens S7-1500 PLC. If vibration exceeds 200 μm (critical threshold), the EPRO MMS6120-9100-00002C-08 triggers a shutdown relay—preventing pump seizure that would disrupt water supply to 50,000 residents.

Whether deployed in compact control rooms or outdoor equipment shelters, the EPRO MMS6120-9100-00002C-08 delivers EPRO’s signature reliability in a “right-sized” package, making it ideal for budget-conscious users needing safety-compliant machinery protection.

Core advantages and technical highlights

2U Compact Design for Space-Constrained Racks: The EPRO MMS6120-9100-00002C-08’s 2U height is 33% shorter than the 3U EPRO MMS6120-9100-00002-10—critical for control panels with limited vertical space. A food processing plant installs the EPRO MMS6120-9100-00002C-08 in a 6U rack (shared with a PLC and HMI): its compact size eliminates the need to upgrade to a larger 10U rack (a $300 expense). This space efficiency is unmatched by full-sized controllers, making it the top choice for retrofits or skid-mounted equipment where rack space is at a premium.

4-Channel Optimization for Cost Savings: By reducing analog inputs from 8 to 4, the EPRO MMS6120-9100-00002C-08 is priced 25% lower than the EPRO MMS6120-9100-00002-10—without sacrificing core safety or diagnostics. A small wind farm uses 3 EPRO MMS6120-9100-00002C-08 units (one per turbine) to monitor gearbox vibration and generator temperature: each controller uses 4 channels (2 per component), and the total cost is 40% less than using 3 full-sized models. This cost efficiency makes it ideal for users with mid-scale monitoring needs (4–8 parameters total) who want to avoid paying for unused channels.

SIL 2 Certification for Safety Compliance: Like its full-sized counterpart, the EPRO MMS6120-9100-00002C-08 is SIL 2 certified per IEC 61508—ensuring it meets global safety standards for critical machinery. A small oil refinery uses the controller to monitor a diesel fuel pump: if the pump’s shaft vibration exceeds 250 μm, the controller’s SIL-compliant shutdown relay activates within 150 ms, stopping the pump before it leaks flammable fuel. This certification eliminates the need for additional safety interlocks, reducing system complexity and compliance costs by 20% compared to non-SIL controllers.

Basic FFT Diagnostics for Early Fault Detection: The EPRO MMS6120-9100-00002C-08 includes scaled-down FFT analysis (0.5 Hz–8 kHz)—sufficient to detect common machinery faults (unbalance, misalignment, bearing wear) without the complexity of high-end FFT tools. A manufacturing plant uses the controller to monitor a conveyor motor: FFT data reveals a 8 Hz frequency spike (indicative of bearing outer race damage) 45 days before failure. Maintenance teams replace the bearing during a night shift, avoiding a 4-hour production outage (valued at $80k). This predictive capability bridges the gap between basic transmitters (no FFT) and full-sized controllers (overly complex FFT), making it ideal for mid-skill maintenance teams.

Typical application scenarios

In municipal water treatment, a plant uses the EPRO MMS6120-9100-00002C-08 to monitor two critical components: a raw water intake pump and a filtration system agitator. The controller connects to 2 EPRO PR9268 vibration sensors (pump bearings) and 2 temperature probes (agitator motor), using all 4 analog channels. It transmits data to the plant’s Emerson DeltaV DCS via Modbus TCP, and its 6 relays trigger local alarms (warning lights) and remote alerts (text messages to operators). When the intake pump’s vibration rises to 180 μm (warning threshold), the EPRO MMS6120-9100-00002C-08 sends an alert—operators adjust pump speed, preventing further wear and extending its service life by 18 months. The controller’s 2U size fits in the plant’s existing 4U control rack, avoiding costly infrastructure upgrades.

In small-scale manufacturing, an automotive parts supplier uses the EPRO MMS6120-9100-00002C-08 to monitor a CNC machine’s spindle and coolant pump. The spindle connects to an EPRO PR9376 eddy current sensor (tracking radial vibration) and a temperature probe, while the coolant pump uses 2 EPRO PR9268 vibration sensors. The controller’s FFT analysis detects a 5 Hz vibration spike in the spindle (caused by a worn tool holder) and triggers a warning alarm. Maintenance replaces the holder within 2 hours, preventing defective parts (which would cost $12k to rework) and keeping the CNC machine running at 95% uptime. The controller’s redundant 24 VDC power supply ensures operation even during factory power fluctuations.

EPRO MMS6120-9100-00002C-08

Related model recommendations

EPRO MMS6120-9100-00002-10: 8-channel upgrade of EPRO MMS6120-9100-00002C-08—for users scaling to large machinery (e.g., multi-stage turbines) needing 8+ monitoring points.

EPRO PR9376010-011: Eddy current sensor paired with EPRO MMS6120-9100-00002C-08—measures shaft vibration/position (0–2 mm), ideal for CNC spindles or small turbines.

EPRO PR9268/20-010-000-000: Vibration sensor for EPRO MMS6120-9100-00002C-08—monitors bearing vibration (0–50 m/s²), compatible with pumps and agitators.

EPRO MMS6000 Lite Software: Configuration tool for EPRO MMS6120-9100-00002C-08—simplified FFT analysis and alarm setup (lower cost than full MMS6000 Software).

Siemens S7-1500 PLC: DCS fully compatible with EPRO MMS6120-9100-00002C-08—integrates controller data via Modbus TCP, ideal for small manufacturing plants.

EPRO Power Supply Module (PSM-6000-24DC): Redundant 24 VDC supply for EPRO MMS6120-9100-00002C-08—ensures uninterrupted power in harsh industrial environments.

EPRO Web Interface License (WI-6120-Lite): Optional add-on for EPRO MMS6120-9100-00002C-08—enables remote monitoring via smartphone/PC, no advanced FFT features (cost-efficient).

EPRO Relay Extension Unit (REU-6000-06): Expands EPRO MMS6120-9100-00002C-08’s relays by 6 channels—useful for triggering multiple alarms (e.g., local sirens + DCS shutdowns).

EPRO Calibration Kit (CK-MMS6120): Tool for EPRO MMS6120-9100-00002C-08—verifies input accuracy (±0.15% FS) and tests relay response, ensuring compliance with ISO 10816.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing EPRO MMS6120-9100-00002C-08, confirm the 19-inch rack has 2U free space and meets -10 °C to +55 °C operating temperature. Wear ESD wristbands and use a torque wrench to secure the controller to the rack (3.5 N·m torque). Connect redundant 24 VDC power supplies (use separate cable runs to avoid single points of failure); for AC input, wire 110/230 VAC to the dedicated terminal block. Connect EPRO sensors to analog inputs (follow color-coding: red = +, black = –) and wire outputs to DCS/relays. Ground the controller’s chassis to a dedicated earth terminal (≤ 1 Ω resistance) to minimize noise interference.

Maintenance suggestions: Calibrate EPRO MMS6120-9100-00002C-08 annually using the EPRO CK-MMS6120 kit—verify analog input accuracy and test relay activation times. Inspect monthly: clean the LCD screen with a dry microfiber cloth, check power supply LEDs (green = normal, red = fault), and confirm communication links (Ethernet/RS-485). If FFT data shows abnormal trends, use MMS6000 Lite Software to isolate faults (e.g., unbalance vs. misalignment). Replace the internal backup battery (CR2032) every 2 years to preserve alarm logs during power outages. Store spare controllers in a dry, -20 °C to +50 °C environment, and avoid exposing the unit to direct sunlight or moisture.

Service and guarantee commitment

EPRO (via Siemens Energy) provides a 2.5-year standard warranty for EPRO MMS6120-9100-00002C-08, covering defects in materials, workmanship, and SIL 2 compliance. For critical applications, the Siemens Essential Service Plan extends coverage to 4 years, including annual on-site calibration (traceable to NIST), 24/7 technical support (2-hour response time for industrial customers), and expedited replacement (72-hour delivery of a loaner unit during repairs).

Siemens’ technical team offers dedicated support for EPRO MMS6120-9100-00002C-08—assisting with sensor integration, FFT setup, and DCS communication. Customers gain free access to resources: application notes on pump monitoring, MMS6000 Lite tutorials, and a user community for best practices. For out-of-warranty repairs, Siemens’ Compact Controller Service restores the unit to factory specs (replacing worn electronics, re-certifying SIL 2) and provides a 6-month warranty. This commitment reflects EPRO’s confidence in the controller’s durability and dedication to supporting users’ mid-scale machinery protection needs.
