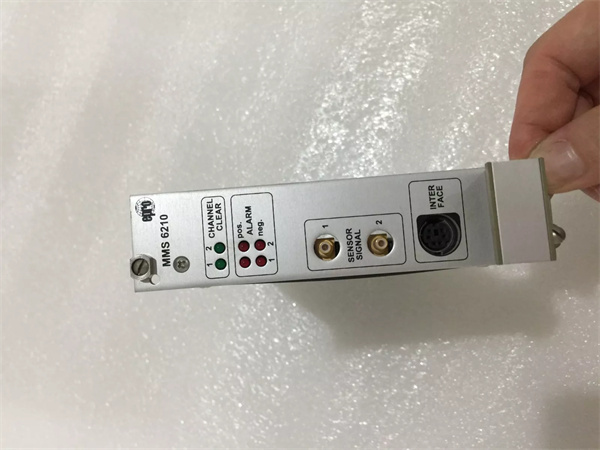

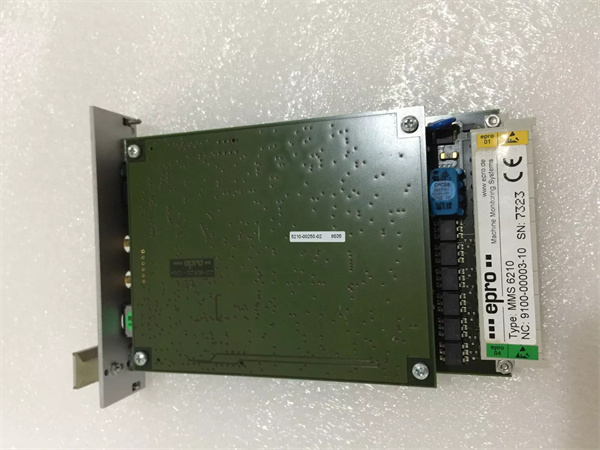

EPRO MMS6210-9100-00003-11

Product introduction

The EPRO MMS6210-9100-00003-11 is a mid-range multi-functional machinery protection controller developed by EPRO (now part of Siemens Energy), engineered to meet the needs of medium-scale industrial facilities—from regional power plants with 8–10 turbines to manufacturing plants with a dozen critical pumps—where balanced channel capacity and functionality are key. Unlike the high-density EPRO MMS6823 (16 channels, overkill for smaller arrays) or the entry-level EPRO MMS6120 (limited cloud connectivity), the EPRO MMS6210-9100-00003-11 offers 8 analog inputs, integrated speed monitoring, and optional OPC UA—striking a balance between scalability and simplicity.

As a versatile solution in EPRO’s MMS6000 series, the EPRO MMS6210-9100-00003-11 acts as a “bridge” between basic monitoring and large-scale protection. For example, a regional water treatment plant uses two EPRO MMS6210-9100-00003-11 units to monitor 16 assets (8 pumps per controller): each connects to EPRO PR9268 vibration sensors and temperature probes, sending data to the plant’s Siemens S7-1500 PLC via Modbus TCP. The controller’s FFT analysis detects pump bearing wear 35 days early, enabling maintenance that cuts unplanned downtime by 30%.

Whether deployed in mid-sized refineries or food processing facilities, the EPRO MMS6210-9100-00003-11 delivers EPRO’s signature reliability without the complexity of high-end models—making it ideal for teams scaling from basic to advanced machinery protection.

Core advantages and technical highlights

8-Channel Balance for Medium-Scale Efficiency: The EPRO MMS6210-9100-00003-11’s 8 analog inputs eliminate the need for multiple small controllers or a single oversized EPRO MMS6823. A beverage bottling plant uses one EPRO MMS6210-9100-00003-11 to monitor 8 bottle-filling line motors: this replaces two 4-channel EPRO MMS6120 units, cutting rack space by 50% (2U vs. 4U) and reducing wiring by 40% (fewer module-to-DCS connections). The cost savings—from fewer hardware and installation hours—amount to $15k for the plant’s initial setup.

Integrated Speed Monitoring (No External Transducers): Unlike the EPRO MMS6120, which requires external speed sensors, the EPRO MMS6210-9100-00003-11 includes direct speed measurement (0–15,000 RPM) via gear tooth or keyway. A small wind farm uses the controller to monitor 6 turbine generators: the integrated speed function eliminates the need for 6 separate speed transducers (saving $3k), while its 0.5 Hz–8 kHz frequency range captures both speed fluctuations and vibration. This integration also simplifies calibration—speed and vibration settings are configured in one interface, cutting setup time by 25%.

Optional OPC UA for Simplified Cloud Connectivity: The EPRO MMS6210-9100-00003-11 supports optional OPC UA, enabling seamless integration with cloud platforms like Siemens MindSphere—no additional gateways needed. A chemical plant uses this feature to send vibration data from 8 agitators to the cloud: plant managers access real-time trends via a mobile app, identifying a 0.2 mm axial position shift in one agitator (indicating seal wear) while off-site. This remote monitoring reduces on-site visits by 60%, cutting maintenance costs by $8k annually. Unlike the EPRO MMS6823, which requires a separate OPC UA gateway, the EPRO MMS6210-9100-00003-11’s built-in option is 30% more cost-effective.

2U Compact Design for Space-Constrained Racks: The EPRO MMS6210-9100-00003-11’s 2U height is 33% shorter than the EPRO MMS6823 (3U)—critical for mid-sized facilities with limited rack space. A automotive parts supplier installs the controller in a 6U rack (shared with a PLC and HMI): its compact size avoids the need to upgrade to a 10U rack (a $250 expense). The controller’s powder-coated steel enclosure also provides Class B EMI shielding, ensuring reliable operation near motor drives—unlike plastic-housed controllers that suffer signal drift.

Typical application scenarios

In power generation, a 300 MW combined-cycle gas turbine (CCGT) plant uses two EPRO MMS6210-9100-00003-11 controllers to monitor 16 assets: 4 gas turbine auxiliaries, 6 steam turbine pumps, and 6 heat exchanger fans. Each controller connects to EPRO PR9376 eddy current sensors (shaft vibration) and temperature probes, with integrated speed monitoring for the turbine auxiliaries. Data is sent to the plant’s Emerson DeltaV DCS via Modbus TCP, and FFT analysis is run daily via the MMS6000 Lite Software. One day, the EPRO MMS6210-9100-00003-11 detects a 180% increase in 60 Hz vibration in a feedwater pump (caused by impeller imbalance): the controller triggers a warning alarm, and maintenance balances the impeller during a 2-hour off-peak window—avoiding a pump failure that would have cut power output by 50 MW and incurred a $100k fine.

In manufacturing, a tire factory uses three EPRO MMS6210-9100-00003-11 units to monitor 24 vulcanizing press motors. The controllers’ optional OPC UA connects to Siemens MindSphere, allowing remote monitoring of vibration and temperature. During a night shift, the cloud platform alerts engineers to a 0.3 mm/s vibration increase in one press motor (caused by bearing lubricant degradation): maintenance replenishes the lubricant before the morning shift, preventing a 4-hour production outage (valued at $80k) and avoiding defective tire production. The controllers’ redundant power supplies also ensure operation during factory power fluctuations, critical for 24/7 manufacturing.

EPRO MMS6210-9100-00003-11

Related model recommendations

EPRO MMS6823: 16-channel upgrade of EPRO MMS6210-9100-00003-11—for users scaling to large asset arrays (20+ assets), adds full-spectrum FFT and 8 GB storage.

EPRO MMS6120-9100-00002C-08: 4-channel alternative to EPRO MMS6210-9100-00003-11—for smaller facilities (4–6 assets), lower cost but no integrated speed monitoring.

EPRO PR9376010-011: Eddy current sensor paired with EPRO MMS6210-9100-00003-11—measures shaft vibration/position (0–2 mm), optimized for turbines/pumps.

EPRO MMS6000 Lite Software: Analysis tool for EPRO MMS6210-9100-00003-11—simplified FFT analysis and trend logging, lower cost than full MMS6000 Software Suite.

Siemens S7-1500 PLC: DCS fully compatible with EPRO MMS6210-9100-00003-11—integrates Modbus TCP data, ideal for medium-scale industrial control.

EPRO Power Supply Module (PSM-6200): Redundant 24 VDC supply for EPRO MMS6210-9100-00003-11—supports up to 3 controllers, ensures uninterrupted power.

EPRO OPC UA License (UA-6210): Add-on for EPRO MMS6210-9100-00003-11—enables cloud connectivity (Siemens MindSphere), required for remote monitoring.

EPRO PR9268/20-010-000-000: Vibration sensor for EPRO MMS6210-9100-00003-11—monitors bearing vibration (0–50 m/s²), suitable for motors/fans.

EPRO Calibration Kit (CK-MMS6210): Tool for EPRO MMS6210-9100-00003-11—verifies 8-channel accuracy (±0.12% FS) and relay response, ensures ISO 10816 compliance.

Installation, commissioning and maintenance instructions

Installation preparation: Before installing EPRO MMS6210-9100-00003-11, confirm the 19-inch rack has 2U free space and meets -10 °C to +55 °C operating temperature. Wear ESD wristbands and use a torque wrench to secure the controller to the rack (4 N·m torque). Connect redundant power supplies (24 VDC or 110/230 VAC)—use separate cable runs (18–14 AWG for AC, 22–18 AWG for DC) to avoid single points of failure. Wire sensors to analog/digital inputs (follow EPRO’s color-coded pinout: red = +, black = –) and connect outputs to DCS/relays. Ground the controller’s chassis to a dedicated earth terminal (≤ 1 Ω resistance) for EMI shielding. For communication, connect the Ethernet port to the DCS network and configure the IP address via the touchscreen.

Maintenance suggestions: Calibrate EPRO MMS6210-9100-00003-11 annually using the EPRO CK-MMS6210 kit—verify all 8 analog inputs and test relay activation times. Inspect monthly: Clean the touchscreen with a microfiber cloth; check power supply LEDs (green = normal, red = fault); verify communication links (Ethernet/RS-485). If FFT data shows abnormal trends, use MMS6000 Lite Software to isolate faults (e.g., unbalance vs. misalignment). Replace the internal backup capacitor every 4 years to maintain power hold-up. Store spare controllers in a dry, -20 °C to +50 °C environment, and update firmware semi-annually via the web interface to ensure OPC UA compatibility (if used).

Service and guarantee commitment

EPRO (via Siemens Energy) provides a 2.5-year standard warranty for EPRO MMS6210-9100-00003-11, covering defects in materials, workmanship, SIL 2 compliance, and EMI shielding. For critical applications (e.g., mid-sized power plants, chemical facilities), the Siemens Essential Service Plan extends coverage to 5 years, including annual on-site calibration (traceable to NIST), 24/7 technical support (2-hour response time), and expedited replacement (72-hour delivery of a loaner unit during repairs).

Siemens’ technical team offers dedicated support for EPRO MMS6210-9100-00003-11—assisting with OPC UA setup, FFT analysis, and DCS integration. Customers gain free access to resources: application notes on medium-scale pump monitoring, MMS6000 Lite tutorials, and a user community for sharing best practices. For out-of-warranty repairs, Siemens’ Mid-Range Controller Service restores the unit to factory specs (replacing worn electronics, re-certifying SIL 2) and provides a 6-month warranty. This commitment reflects EPRO’s confidence in the controller’s durability and dedication to supporting users’ medium-scale machinery protection needs.
