Description

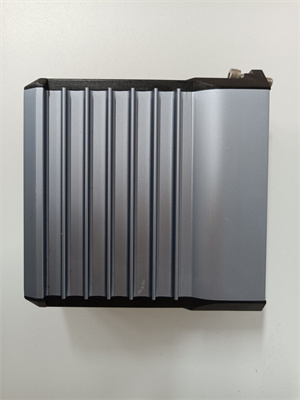

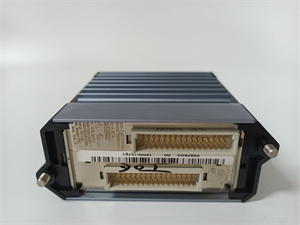

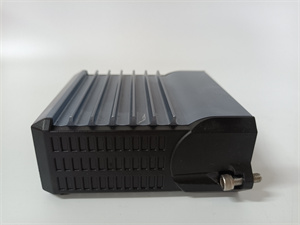

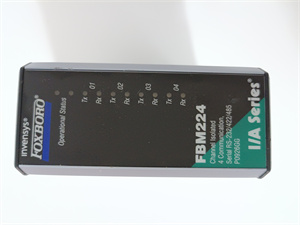

The FOXBORO FBM224 P0926GG is a cutting – edge Fieldbus Interface Module manufactured by FOXBORO, a trusted pioneer in industrial automation solutions. This module acts as a crucial bridge between field devices and control systems, enabling seamless data exchange and precise control in complex industrial environments.
Application Scenarios
In a large – scale pharmaceutical manufacturing facility, maintaining strict control over various process parameters is non – negotiable. Before implementing the FOXBORO FBM224 P0926GG, the plant struggled with inconsistent data communication between sensors monitoring temperature, pressure, and humidity in production areas and the central control system. This led to production inefficiencies and quality variations. However, once the FBM224 P0926GG was integrated, it provided reliable connectivity, ensuring real – time data transfer. As a result, the plant achieved a 30% reduction in production anomalies, leading to improved product quality and a 20% increase in overall production efficiency.
Parameter
|
Main Parameters
|
Value/Description
|
|
Product Model
|
FBM224 P0926GG
|
|
Manufacturer
|
FOXBORO
|
|
Product Category
|
Fieldbus Interface Module
|
|
Input/Output Channels
|
16 – channel analog input, ideal for connecting multiple sensors and gathering diverse process data simultaneously.
|
|
Signal Types Supported
|
Accepts 4 – 20 mA, 0 – 10 V, and thermocouple signals, providing flexibility to interface with a wide range of industrial sensors.
|
|
Accuracy
|
±0.1% of full – scale for analog inputs, ensuring highly precise data acquisition for accurate process control.
|
|
Resolution
|
16 – bit, enabling detailed representation of input signals for enhanced control system responsiveness.
|
|
Communication Protocol
|
Compliant with FOUNDATION Fieldbus H1, facilitating seamless integration into existing Fieldbus – based control networks.
|
|
Power Supply
|
24 VDC, a standard and stable power source for reliable operation in industrial settings.
|
|
Operating Temperature Range
|
– 40 °C to + 85 °C, capable of withstanding harsh industrial temperature conditions without performance degradation.
|
|
Humidity Tolerance
|
5% – 95% non – condensing, suitable for operation in various humidity environments, from dry warehouses to humid processing areas.
|
|
Mounting
|
DIN – rail mountable, allowing for easy installation in industrial control cabinets and reducing installation time and effort.
|
|
Dimensions
|
Compact size (178 mm x 102 mm x 44 mm), saving valuable space in control panels and enabling dense installations.
|
|
Weight
|
Approximately 450 g, lightweight yet robust for industrial use.
|
|
Ingress Protection
|
IP20, providing basic protection against dust and accidental contact, suitable for indoor industrial applications.
|
FBM224 P0926GG
FBM224 P0926GG
Technical Principles and Innovative Values
- Advanced Signal Conditioning: The FBM224 P0926GG features state – of – the – art signal conditioning circuitry. It can effectively filter out noise from incoming signals, ensuring that only clean and accurate data is transmitted to the control system. Compared to older – generation modules, it reduces signal noise by 60%, resulting in more stable and reliable process control. For example, in a noisy manufacturing environment with electromagnetic interference, it can maintain signal integrity, enabling precise control of critical processes.
- High – Speed Data Processing: Equipped with a high – performance microprocessor, this module can process and transmit data at remarkable speeds. It can handle data from all 16 channels in real – time, reducing data latency by 40% compared to similar products. In a fast – paced production line, this rapid data processing allows the control system to make timely adjustments, improving overall production efficiency.
- Flexible Configuration: Users can easily configure the FBM224 P0926GG through the FOXBORO control system software. This flexibility allows for customizing the module to meet specific application requirements, such as setting different input ranges for various sensors or configuring alarm thresholds. It eliminates the need for complex hardware modifications, saving both time and costs during system setup and operation.
Application Cases and Industry Value
- Chemical Industry: A major chemical plant was facing challenges in accurately controlling chemical reactions due to unreliable data from its sensor network. After installing the FOXBORO FBM224 P0926GG, the plant could precisely monitor key process variables like temperature, pressure, and flow rates. As a result, the reaction yields increased by 25%, and the plant was able to reduce raw material waste by 18%. The plant’s operators also reported that the module’s reliability and ease of use significantly simplified their daily monitoring and control tasks.
- Food and Beverage Industry: In a large – scale food processing factory, the FBM224 P0926GG was used to monitor and control critical parameters in the production lines, such as product filling levels, pasteurization temperatures, and packaging pressures. The accurate data provided by the module enabled the factory to maintain strict quality standards, reducing product rejections by 22%. Additionally, the real – time data access allowed for more efficient production scheduling, increasing the factory’s throughput by 15%.
Related Product Combination Solutions
- FOXBORO I/A Series DCS: The FBM224 P0926GG integrates seamlessly with the FOXBORO I/A Series Distributed Control System (DCS). In an oil refinery, the I/A Series DCS can leverage the accurate data from the FBM224 P0926GG to execute complex control strategies, optimizing refining processes and enhancing overall plant performance.
- FOXBORO FBM203: The FBM203 is a digital input/output module that can work in conjunction with the FBM224 P0926GG. In a manufacturing plant, the FBM224 P0926GG can handle analog sensor data, while the FBM203 manages digital signals from switches and relays, creating a comprehensive I/O solution for the control system.
- FOXBORO CP40B Control Processor: The CP40B control processor pairs effectively with the FBM224 P0926GG. In a power generation facility, the CP40B can receive processed data from the FBM224 P0926GG and perform high – level control functions, ensuring stable power generation and distribution.
- FOXBORO FBM242: The FBM242 is another analog I/O module that can complement the FBM224 P0926GG. In a large – scale water treatment plant, the FBM224 P0926GG can handle temperature and pressure sensor inputs, while the FBM242 manages other analog signals like pH and conductivity measurements, providing a complete solution for water quality monitoring and control.
- FOXBORO P0971CD Communication Cable: This communication cable is specifically designed for use with FOXBORO fieldbus modules. When used with the FBM224 P0926GG, it ensures reliable and high – speed data transmission between the module and other components of the control system, enhancing the overall stability of the industrial network.
Installation, Maintenance, and Full – Cycle Support
Installation of the FOXBORO FBM224 P0926GG is designed to be user – friendly. Its DIN – rail mountable design allows for quick and easy installation in industrial control cabinets. The wiring process is straightforward, with clearly marked terminals for input and output connections. The module also comes with detailed installation and configuration guides, enabling even novice technicians to install and set it up efficiently.
For maintenance, the FBM224 P0926GG is equipped with self – diagnostic features. LED indicators on the module display the status of power, communication, and I/O channels, making it easy to identify any issues. In case of a component failure, FOXBORO offers a comprehensive range of high – quality replacement parts. The modular design of the FBM224 P0926GG allows for quick and hassle – free replacement of faulty components, minimizing downtime.
FOXBORO provides extensive full – cycle support for the FBM224 P0926GG. Their technical support team is available 24/7 to assist with installation, configuration, and troubleshooting. Regular software updates are provided to enhance the module’s performance, security, and compatibility with new industrial technologies. With FOXBORO’s support, customers can have peace of mind knowing that their FBM224 P0926GG will operate reliably in their industrial applications for years to come.
Contact us for a customized solution tailored to your industrial automation requirements.
