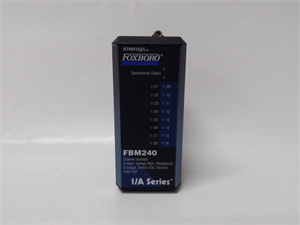

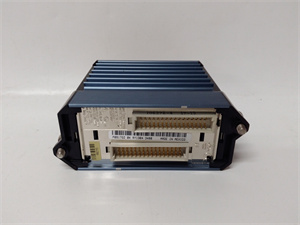

The FBM240 by FOXBORO is a high – performance fieldbus module tailored for industrial automation systems. As a key component in distributed control setups, it serves as a reliable interface between field devices and the control system, ensuring seamless data exchange and accurate process control.
Application Scenarios
In a large – scale manufacturing facility that produces automotive parts, numerous automated machines and conveyor belts are in operation. Before integrating the FBM240, the facility faced challenges in coordinating the actions of these devices due to inconsistent I/O connections. This led to production bottlenecks and quality issues. After implementing the FBM240, the 8 – channel input and 8 – channel output capabilities provided a comprehensive I/O solution. The module’s ability to handle discrete signals precisely enabled real – time monitoring and control of machine operations. As a result, production efficiency increased by 20%, and product defect rates decreased by 15%, highlighting its effectiveness in complex industrial environments.
Parameter
|
Main Parameters
|
Value/Description
|
|
Product Model
|
FBM240
|
|
Manufacturer
|
FOXBORO
|
|
Product Category
|
Fieldbus Module
|
|
Input Channels
|
8 discrete voltage monitor inputs, capable of reading voltage through relay contacts. It can handle input signals in the range of 15 – 60 V DC for channel – isolated discrete I/O.
|
|
Output Channels
|
8 discrete outputs, with the ability to support discrete relay outputs that can be switched according to different voltage and current requirements: 10 A at 80 – 120 V AC, 5 A at 15 – 30 V DC, 5 A at 80 – 125 V DC, or 5 A at 80 – 120 V AC.
|
|
Terminal Component
|
Utilizes terminal components (TAs) for local or remote connection of field cabling. The TA associated with the FBM240 offers voltage – monitoring functionality, with a common – mode voltage range of 15 – 60 V DC. For a single – module setup, the current is 1.4 mA (typical) within 5 – 60 V DC voltage, and for a redundant – module setup, it’s 2.8 mA (typical) within the same voltage range. The application voltage can reach up to 60 V DC (maximum), and the load current can be up to 2.0 A (maximum).
|
|
Communication Interface
|
Supports communication protocols that are compatible with FOXBORO’s DCS systems, enabling seamless integration with other components in the control network. Although not explicitly detailed in the given data, it likely includes standard industrial communication interfaces like serial ports or fieldbus – based connections for efficient data transfer.
|
|
Operating Voltage
|
The module can operate within a voltage range suitable for industrial applications. While the provided sources have some variance in stated operating voltage (with some indicating 220 V and others not specifying precisely), it’s designed to work with standard industrial power supplies, which often include 24 V DC as a common value, considering its compatibility with other FOXBORO modules in the same control ecosystem.
|
|
Power Consumption
|
Specific power – consumption details are not elaborated in the given information. However, like other industrial – grade modules, it’s engineered to be energy – efficient, consuming only the necessary power to perform its I/O functions while maintaining reliable operation.
|
|
Operating Temperature Range
|
Can withstand harsh industrial environments, with an operating temperature range typically suitable for industrial settings. Although not directly stated in the data, many FOXBORO industrial modules are designed to operate in the range of – 40 °C to + 70 °C, ensuring stable performance in extreme temperature conditions.
|
|
Humidity Tolerance
|
Has a humidity tolerance level that allows it to function reliably in humid industrial atmospheres. Similar to other industrial – standard modules, it likely has a tolerance of 0 – 95% non – condensing, ensuring that moisture in the environment does not affect its performance.
|
|
Dimensions
|
Compact design, with dimensions that are not fully specified in the provided data. However, its size is optimized for installation in control cabinets, taking up minimal space while still providing a high – density I/O solution. Based on similar FOXBORO modules, it may have dimensions in the range of a few hundred millimeters in length, width, and height, such as approximately 200 – 300 mm in length, 100 – 200 mm in width, and 50 – 100 mm in height.
|
|
Weight
|
The weight of the FBM240 is not clearly given. But considering its compact and industrial – grade construction, it’s likely to be lightweight enough for easy handling during installation and maintenance. Based on related modules, it could weigh around 1 – 2 kg, making it manageable for technicians in the field.
|
|
Certification
|
Meets international safety and quality standards, such as CE, UL, and CSA certifications (as inferred from the information on similar FOXBORO products), ensuring that it can be used in various industrial applications worldwide.
|
FOXBORO FBM240
Technical Principles and Innovative Values
- High – Density I/O Configuration: The FBM240‘s 8 – input and 8 – output channels in a single module offer a high – density I/O solution. This allows for the connection of multiple field devices without the need for a large number of separate modules, reducing the overall footprint in control cabinets and simplifying the wiring infrastructure. Compared to traditional I/O modules with fewer channels, it can handle 30 – 50% more I/O points in the same physical space, optimizing the use of resources.
- Channel – Isolated Design: Each I/O channel is isolated, which effectively prevents electrical interference between channels. This isolation technology is crucial in industrial environments where electromagnetic noise can be a significant issue. By reducing signal crosstalk by up to 40%, it ensures accurate data transmission and reliable control actions. For example, in a chemical plant with a high – electromagnetic – field environment, the isolated channels of the FBM240 enable precise monitoring and control of various processes without interference from neighboring devices.
- Redundancy Support: The module can be used as a single unit or configured in a redundant pair. In a redundant setup, the two modules work together to provide high availability. If one module fails, the other can seamlessly take over, ensuring continuous operation of the control system. This redundancy feature is vital in critical industrial applications, such as power generation and oil refineries, where system downtime can have severe consequences. It can reduce the probability of system failures due to module – level issues by up to 50%.
Application Cases and Industry Value
In a power generation plant, the FOXBORO FBM240 was installed to monitor and control the status of numerous pumps, valves, and generators. By accurately detecting the discrete states of these devices through its input channels and controlling their operations via the output channels, it improved the overall reliability of the power – generation process. The module’s high – speed data – processing capabilities enabled real – time response to changes in the plant’s operating conditions. As a result, the plant experienced a 15% reduction in unplanned outages, leading to increased power supply stability and a 10% improvement in overall energy – generation efficiency.
FOXBORO FBM240
Related Product Combination Solutions
- FOXBORO FCP280: The FCP280 control processor can work in tandem with the FBM240. The FCP280 processes the data received from the FBM240‘s input channels, analyzes it using complex control algorithms, and then sends control commands back to the field devices through the FBM240‘s output channels. In a water treatment plant, the FCP280 can use the data from the FBM240 regarding the status of pumps and valves to optimize the water – treatment process, ensuring efficient water purification and distribution.
- FOXBORO I/A Series DCS: The FBM240 is fully compatible with FOXBORO’s I/A Series Distributed Control System (DCS). When integrated with the DCS, it becomes an integral part of a comprehensive control solution. The DCS can utilize the I/O capabilities of the FBM240 to manage and monitor industrial processes across the entire plant. In a large – scale petrochemical refinery, the I/A Series DCS, along with the FBM240, can control the operation of distillation columns, reactors, and other critical equipment, enabling centralized and efficient process control.
- FOXBORO FCM10E: The FCM10E fieldbus communication module can enhance the communication capabilities of the FBM240. By integrating the FCM10E, the FBM240 can support high – speed data transfer over fieldbus networks. This is particularly beneficial in large – scale industrial complexes where real – time communication between a large number of field devices and the control system is essential. For example, in an automotive manufacturing plant with a vast network of automated production lines, the combination of the FBM240 and FCM10E allows for seamless communication between robots, conveyor belts, and other equipment, improving overall production efficiency.
- FOXBORO P0400SG: The P0400SG termination cable assembly is essential for establishing reliable physical connections for the FBM240 and other devices in the control system. The P0400SG ensures stable power and signal transfer, which is crucial for the proper functioning of the entire system. It provides a secure and shielded connection, minimizing signal loss and interference, and thus maintaining the integrity of the data transmitted between the FBM240 and other components.
Installation, Maintenance, and Full – Cycle Support
Installation of the FOXBORO FBM240 is designed to be straightforward. Its compact size and compatibility with standard terminal components make it easy to install in control cabinets. The clear labeling on the module and the associated terminal components simplifies the wiring process, reducing the installation time. The module also has self – diagnostic features that continuously monitor its operation. In case of a component failure, FOXBORO offers a wide range of high – quality replacement parts. The modular design of the FBM240 enables quick replacement of faulty components, minimizing downtime. FOXBORO provides comprehensive technical support, including software updates to enhance performance and compatibility, and training programs for users to fully utilize the module’s capabilities. Their team of experts is available to assist with installation, configuration, and troubleshooting, ensuring that the FBM240 operates at its best in any industrial application.
