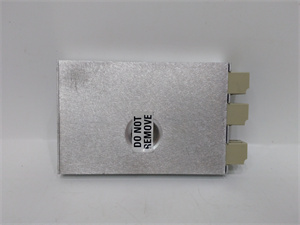

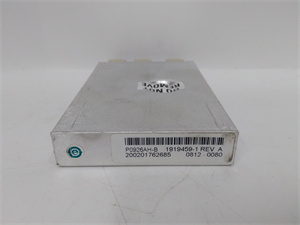

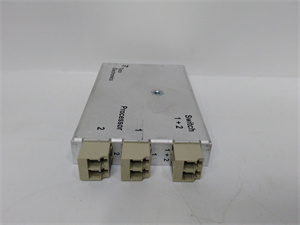

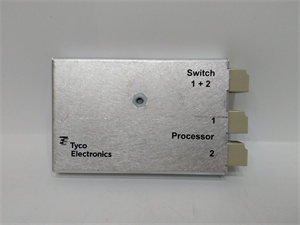

FOXBORO P0926AH-B

Description

Main Parameters	Value/Description
Product Model	P0926AH – B
Manufacturer	FOXBORO
Product Category	Passive Fiber Optic Distribution Unit
Fiber Type	Compatible with single – mode fiber, suitable for long – distance and high – speed data transmission
Wavelength	Operates at 1310 nm or 1550 nm, common wavelengths in fiber optic communication for efficient signal propagation
Connector Type	Equipped with SC connectors, known for their high – density and easy – to – use features in fiber optic connections
Insertion Loss	Less than 1.0 dB, ensuring minimal signal attenuation during transmission
Return Loss	Greater than 15 dB, reducing signal reflection and improving signal integrity
Directivity	Greater than 20 dB, enhancing the directionality of the signal for more efficient distribution
Operating Temperature	Ranges from – 40 °C to + 85 °C, capable of withstanding harsh industrial temperature conditions
Storage Temperature	From – 55 °C to + 90 °C, allowing for safe storage in extreme temperature environments
Humidity	Can operate in 0 % to 95 % relative humidity, non – condensing, suitable for humid industrial settings
Vibration Resistance	Complies with mil – std – 810 c, method 501 . 5, procedure xiv, able to endure vibrations in industrial environments
Shock Resistance	Meets mil – std – 810 c, method 501 . 6, procedure I, ensuring durability against shocks
EMC Compliance	Complies with iec 61000 – 4 – 2, iec 61000 – 4 – 3, and iec 61000 – 4 – 6 standards, providing immunity to electromagnetic interference

P0926AH-B

• Innovation Point 1: Signal Conversion Flexibility

• Innovation Point 2: Passive Design

• Innovation Point 3: High Compatibility

In a food and beverage production facility, the P0926AH – B was used to connect various production line sensors to the central control system. The reliable signal distribution provided by the unit led to more consistent product quality. The facility was able to reduce product defects by 20%, resulting in cost savings and improved customer satisfaction.

P0926AH-B

• FOXBORO Fiber Optic Cables: When used with FOXBORO – branded fiber optic cables, the P0926AH – B can ensure optimal signal transmission. The cables’ quality and compatibility with the P0926AH – B reduce the risk of signal loss. For example, in a large – scale industrial complex, the combination can cover long distances while maintaining high – speed data transfer.

• FOXBORO Fiber Optic Connectors: Matching FOXBORO fiber optic connectors with the P0926AH – B simplifies the connection process. These connectors are designed to work seamlessly with the unit, providing a secure and reliable connection. In a power plant, the proper connectors ensure that the fiber optic network remains stable, even in a harsh environment with vibrations and temperature fluctuations.

• FOXBORO I/A Series Control Modules: The P0926AH – B can interface with FOXBORO’s I/A series control modules. The control modules can use the data distributed by the P0926AH – B to make real – time decisions. In a chemical processing plant, the control modules can adjust process parameters based on sensor data transmitted through the P0926AH – B – enabled fiber optic network.

• FOXBORO Fieldbus Modules: Fieldbus modules from FOXBORO can work in tandem with the P0926AH – B. The fieldbus modules can collect data from various field devices and send it through the fiber optic network via the P0926AH – B. In a mining operation, the fieldbus modules can gather data from sensors in the mine and transmit it to the control center through the P0926AH – B for analysis and control.

• FOXBORO Power Supplies: Although the P0926AH – B is passive, it may be part of a larger system that requires power. FOXBORO power supplies can ensure stable power for other components in the fiber optic network. In a water treatment plant, the power supplies can keep the associated active components in the network running smoothly, while the P0926AH – B distributes signals without the need for its own power source.
