The 369 – HI – 0 – M – 0 – 0 – 0 – E offers a comprehensive set of features. It provides reliable motor protection against faults like overcurrent, undervoltage, phase unbalance, ground fault, and over – temperature. For motor management, it includes functions such as motor starting monitoring, thermal overload protection, and locked – rotor protection. The optional metering package allows for detailed monitoring of motor performance metrics. It also has an activity record feature that, after tripping, can immediately report the cause of tripping, along with the temperature and data values at the time, aiding in quick problem – solving. Additionally, the pre – trip alarm function notifies users in advance of potential issues, helping to prevent unexpected downtime. Its robust build quality and high – quality components ensure long – term operation in demanding industrial environments.
Manufacturer: GE Part number: 369-HI-0-M-0-0-0-E
Our extensive GE catalogue, including
: 369-HI-0-M-0-0-0-E
, is available now for dispatch to the worldwide.
The GE Multilin 369 – HI – 0 – M – 0 – 0 – 0 – E is a high – performance motor management relay in the 369 series. It is designed to protect and manage medium – sized AC motors and their driven equipment. This relay serves as a crucial component in industrial automation systems, providing advanced protection and monitoring functions. It can monitor various parameters such as voltage, watt, frequency, and energy, and generate protection based on the collected data. With its enhanced diagnostics and faceplate, it offers users more detailed information about the motor’s operating status, helping to quickly identify and solve potential problems, thus improving the overall reliability and efficiency of the system.
Technical Specifications
Parameter Name
Parameter Value
Product Model
369 – HI – 0 – M – 0 – 0 – 0 – E
Manufacturer
GE Multilin
Product Type
Motor Management Relay
Control Power
50 – 300 VDC / 60 – 265 VAC
Digital Inputs
6 optically isolated
Ambient Humidity
Up to 95% non – condensing
Maximum Altitude
2000 m
Phase Current Inputs
1 A and 5 A secondary
Fuse Rating
3.15 A H 250 V
Dimensions
Approx. 29.6 cm x 10.7 cm x 20.5 cm
Weight
10 lbs / 4.5 kg
Optional Metering
Yes

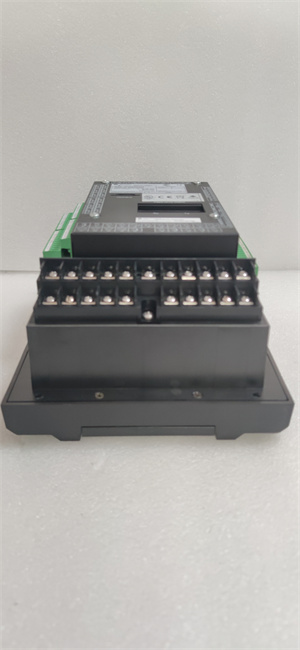

369-HI-0-M-0-0-0-E
Main Features and Advantages
The 369 – HI – 0 – M – 0 – 0 – 0 – E offers a comprehensive set of features. It provides reliable motor protection against faults like overcurrent, undervoltage, phase unbalance, ground fault, and over – temperature. For motor management, it includes functions such as motor starting monitoring, thermal overload protection, and locked – rotor protection. The optional metering package allows for detailed monitoring of motor performance metrics. It also has an activity record feature that, after tripping, can immediately report the cause of tripping, along with the temperature and data values at the time, aiding in quick problem – solving. Additionally, the pre – trip alarm function notifies users in advance of potential issues, helping to prevent unexpected downtime. Its robust build quality and high – quality components ensure long – term operation in demanding industrial environments.
Application Field
The GE Multilin 369 – HI – 0 – M – 0 – 0 – 0 – E is widely used in various industrial fields. In industrial processes, it protects and manages motors in production lines, ensuring smooth operation. In HVAC systems, it monitors and safeguards the motors of air – conditioning units, improving energy efficiency and system reliability. In water and wastewater treatment plants, it plays a vital role in protecting the motors of pumps and other equipment, ensuring the normal operation of the treatment process. It is also applicable in power generation facilities, protecting the motors of generators and related equipment, contributing to the stable operation of the power grid.
Related Products
369 – LO – 0 – M – F – E – 0 – E: Has a lower control power specification (20 – 60 VDC, 20 – 48 VAC) compared to the 369 – HI – 0 – M – 0 – 0 – 0 – E. It also has an optional fiber – optic port for harsh environments or RTD hookup.
369 – HI – R – M – 0 – 0 – 0 – E: Similar to the 369 – HI – 0 – M – 0 – 0 – 0 – E, but may have some differences in specific features or configurations, and is part of the 369 series of motor management relays.
Other models in the 369 series may have different combinations of optional features, such as different control power ranges, additional input/output options, or different protection and monitoring capabilities, to meet various application requirements.

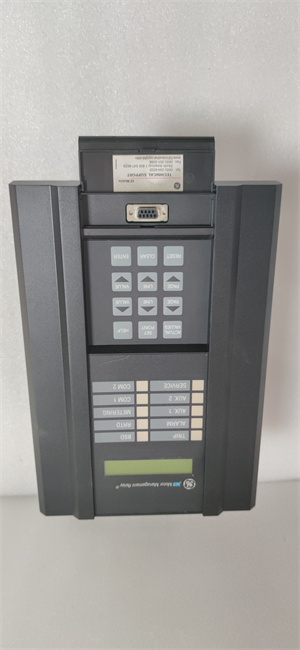

369-HI-0-M-0-0-0-E
Installation and Maintenance
Pre – installation preparation: Before installing the 369 – HI – 0 – M – 0 – 0 – 0 – E, make sure to check the installation environment. Ensure that the ambient temperature and humidity meet the requirements, and that there is no excessive vibration or electromagnetic interference. Also, carefully read the installation manual and prepare the necessary tools and wiring materials. Maintenance recommendations: Regularly check the operating status of the 369 – HI – 0 – M – 0 – 0 – 0 – E, including monitoring the display for any error messages or abnormal parameter values. Clean the surface of the relay regularly to prevent dust and dirt from accumulating. Periodically test the protection and monitoring functions to ensure their normal operation. If any problems are found, contact the professional after – sales service team in a timely manner.
Product Guarantee
GE stands behind the quality of the 369 – HI – 0 – M – 0 – 0 – 0 – E with a comprehensive product guarantee. The product comes with a standard one – year warranty, during which any quality – related issues will be addressed promptly. The company also provides professional technical support to help users solve any problems that may arise during the use of the product. In addition, GE’s after – sales service team is committed to providing timely and efficient service to ensure that customers can use the product with confidence.
