Product Overview
The GE 369 – HI – 0 – M – 0 – E – 0 is a motor management relay belonging to the 369 series by GE Multilin. This advanced microprocessor – based protective relay is designed to offer comprehensive protection and monitoring solutions for medium – voltage motors. In industrial automation and power management systems, its role is pivotal, ensuring the reliable operation of motors.
It safeguards motors against a wide array of faults. For instance, overcurrent protection prevents damage when the current exceeds safe levels, while ground fault protection detects and mitigates risks associated with electrical leakage to the ground. Thermal overload protection guards against overheating due to excessive load. Alongside protection, the GE 369 – HI – 0 – M – 0 – E – 0 monitors crucial motor parameters such as current, voltage, power, and temperature. This real – time monitoring enables operators to assess motor health and performance, facilitating predictive maintenance and reducing unexpected downtime.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 369 – HI – 0 – M – 0 – E – 0 |
| Manufacturer | General Electric (GE Multilin) |
| Product Type | Motor Management Relay |
| Power Supply | 50 – 300 VDC / 60 – 265 VAC |
| Overvoltage Category | II |
| IP Rating | IP50x |
| Humidity | Non – condensing, up to 95% |
| Diagnostics | Enhanced |
| Storage Temperature Range | 5 °C to 80 °C |
| Operational Temperature Range | 5 °C to 60 °C |
| Communication Interface | Modbus/TCP (available as a feature) |
| Overload Curves | Fifteen standard curves and a Flex curve custom curve |

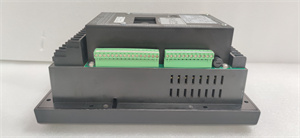

369-HI-0-M-0-E-0
Main Features and Advantages
Versatile Protection Mechanisms
The GE 369 – HI – 0 – M – 0 – E – 0 provides an extensive range of protection functions. It guards against overcurrent, ensuring that motors are shielded when current surges occur. Ground fault protection is crucial for safety, as it quickly detects and responds to any leakage of electrical current to the ground. Thermal overload protection helps prevent motor damage due to overheating caused by extended periods of high load. This comprehensive protection suite significantly reduces the risk of motor failure, enhancing the overall reliability of industrial systems.
Advanced Monitoring Capabilities
This relay can accurately monitor multiple motor parameters. By constantly tracking current, voltage, power, and temperature, it offers real – time insights into the motor’s operational status. For example, if the voltage fluctuates or the temperature starts to rise abnormally, operators can be alerted. This data – driven monitoring approach enables proactive maintenance, as potential issues can be identified and addressed before they escalate into major problems, thus minimizing costly downtime.
Adaptable to Different Applications
With its ability to use fifteen standard curves and a custom Flex curve for overload protection, the 369 – HI – 0 – M – 0 – E – 0 can be tailored to various motor types and applications. Whether it’s a pump, fan, compressor, or conveyor in an industrial setting, the relay can be configured to best suit the specific requirements of the motor and its operating conditions. This adaptability makes it a versatile choice for different industries with diverse motor – driven processes.
Application Field
In industrial automation, the GE 369 – HI – 0 – M – 0 – E – 0 is widely used to protect and monitor motors in production lines. For example, in a manufacturing plant, motors powering conveyor belts, robotic arms, and various machinery can be safeguarded by this relay. By ensuring their stable operation, it contributes to smooth production processes and high – quality output.
In the power generation and distribution sector, the relay plays a crucial role in protecting motors within power plants and substations. Motors involved in cooling systems, water pumps, and other auxiliary equipment are monitored and protected, ensuring the continuous and reliable operation of the power infrastructure.
The oil and gas industry also benefits from the 369 – HI – 0 – M – 0 – E – 0. Motors used in pumps for oil transfer, compressors for gas processing, and other critical operations are safeguarded. The relay’s ability to detect and prevent faults helps maintain the integrity of the oil and gas production and transportation processes, reducing the risk of costly disruptions.
369-HI-0-M-0-E-0
Related Products
- 369 – LO – 0 – M – F – E – 0 – 0: Differs from the GE 369 – HI – 0 – M – 0 – E – 0 in control power specifications. It has a lower control power range (20 – 60 VDC and 20 – 48 VAC), making it suitable for applications where lower power requirements are sufficient. It also has an optional fiber optic port, which can be useful in harsh environments or for specific remote module RTD hook – up.
- 369 – HI – R – M – 0 – 0 – 0 – E: Offers similar motor protection functions but may have additional features or different configurations. It provides detailed event recording, including reporting the cause of a trip along with temperature and data values at the time of the trip. This can be extremely useful for in – depth system analysis and troubleshooting.
- SR469 – P5 – HI – A20 – T: Another product in the GE protection device family. While the 369 – HI – 0 – M – 0 – E – 0 focuses on motor management, SR469 – P5 – HI – A20 – T may have different application focuses or protection algorithms, but could potentially be used in conjunction with it in more complex industrial control and protection systems.
- SR489 – P5 – HI – A20 – E: This product likely has its own unique features within the GE product range. It may offer different levels of protection or monitoring capabilities compared to the 369 – HI – 0 – M – 0 – E – 0, and could be selected based on specific system requirements, such as different voltage or current ratings for the equipment it protects.
- GE Anaalog I/O Card: Can be used in combination with the 369 – HI – 0 – M – 0 – E – 0 to expand the input and output capabilities of the overall system. This allows for better integration with other devices and more comprehensive control and monitoring in an industrial setup.
Installation and Maintenance
Pre – installation preparation: Before installing the GE 369 – HI – 0 – M – 0 – E – 0, ensure the installation area is clean, dry, and free from excessive vibrations. Check the integrity of the relay for any signs of damage during transit. Familiarize yourself with the motor and the overall system it will be integrated into. Verify that the power supply in the installation area meets the relay’s requirements of 50 – 300 VDC / 60 – 265 VAC. Prepare the necessary tools for physical installation, such as screwdrivers for mounting.
Maintenance recommendations: Regularly inspect the 369 – HI – 0 – M – 0 – E – 0 for any signs of overheating, unusual noises, or visual damage. Clean the relay periodically to remove dust and debris, as these can affect its performance over time. Check the communication interface, if used, to ensure seamless data transfer. Monitor the relay’s diagnostic indicators for any fault warnings. If any issues are detected, refer to the manufacturer’s documentation for troubleshooting steps. Keep the relay’s software or configuration settings updated as recommended by GE to benefit from the latest features and improvements.
Product Guarantee
GE stands firmly behind the quality of the GE 369 – HI – 0 – M – 0 – E – 0. The product undergoes rigorous quality – control measures during manufacturing to meet high – industry standards. GE offers a comprehensive after – sales service package. In case of any manufacturing defects, the company provides free repair or replacement within the warranty period. Their global network of technical support teams is available to assist customers with any queries related to installation, operation, or maintenance. This reflects GE’s confidence in the reliability and performance of the 369 – HI – 0 – M – 0 – E – 0, ensuring that industrial users can rely on this motor management relay for their critical motor protection and monitoring needs.
