531X302DCIAWG1

Description

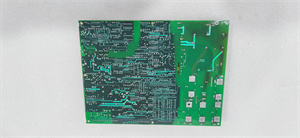

GE 531X302DCIAWG1 Encoding Processor Interface Board Detailed Explanation

Product Overview

GE 531X302DCIAWG1 is a coding processor interface board produced by General Electric(GE),mainly used in GE series drives or control systems.It is responsible for receiving feedback signals from the encoder and converting them into digital signals for processing by the driver or controller,thereby achieving precise control of parameters such as motor speed and position.

531X302DCIAWG1 GE

Main parameters and specifications

Manufacturer:General Electric(GE)

Model:531X302DCIAWG1

Function:Encoder interface

Input signal:Encoder pulse signal

Output signal:digital signal

Interface type:high-speed serial interface or parallel interface

Power supply voltage:DC24V

Product series and features

GE Drive Series:This product is typically used in conjunction with GE’s drive series,such as PACSystems RX3i.

High precision:Provides high-precision position feedback to ensure the accuracy of the control system.

High speed processing:capable of processing encoder signals at high speed to meet the requirements of high-speed motion control.

Flexible configuration:Different encoder types and interface types can be configured.

High reliability:suitable for industrial environments,with high reliability.

531X302DCIAWG1 GE

Product function and purpose

Position feedback:Provide accurate position feedback for closed-loop control.

Speed control:Based on position feedback,achieve precise speed control.

Motor protection:By monitoring the encoder signal,the protection of the motor is achieved.

Motion control:Used for various motion control systems,such as CNC machine tools,robots,etc.

application area

GE 531X302DCIAWG1 is widely used in various industrial fields,such as:

Machine tool industry:CNC machine tools,machining centers,etc.

Packaging industry:packaging machinery,assembly lines,etc.

Automated production lines:various automated production lines.

Robots:industrial robots,collaborative robots,etc.

531X302DCIAWG1 GE

Summary of Characteristics

High precision:Provides high-precision position feedback.

High speed processing:meets the requirements of high-speed motion control.

Flexible configuration:can adapt to different application requirements.

High reliability:suitable for industrial environments.

summary

GE 531X302DCIAWG1 is a high-performance encoder interface board with wide applications in the field of motion control.
