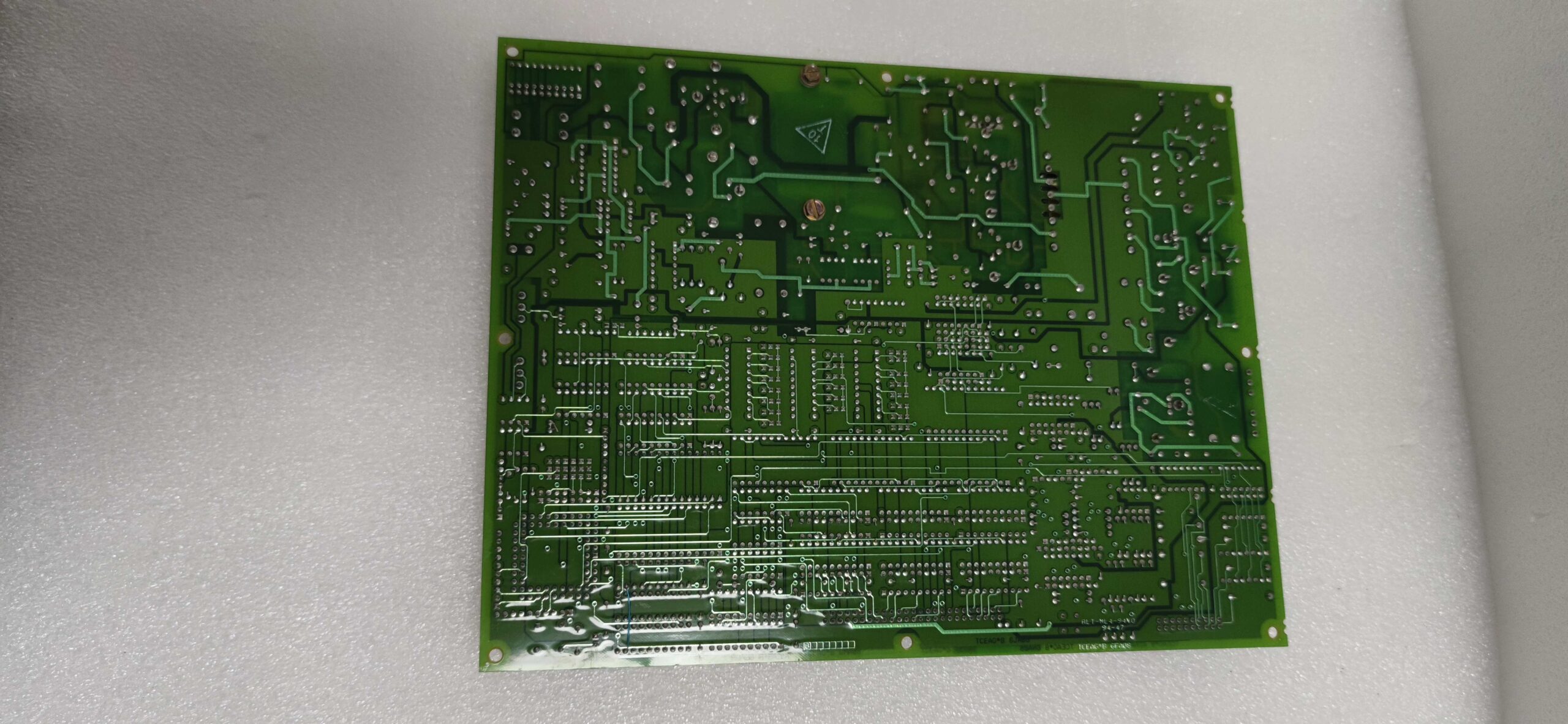

The DS200TCTSG1AFE is a simplex trip board engineered by General Electric (GE) for its Mark V turbine control systems. This model, the DS200TCTSG1AFE, serves as a critical safety component in high-voltage drive applications, delivering precise emergency tripping and protective relay functions. Its primary role is to manage turbine overspeed protection, auxiliary solenoid control, and redundant signal processing, ensuring compliance with safety standards in power generation and industrial settings.
Key features of the DS200TCTSG1AFE include 12 plug-in relays, 3×16-pin connectors (JDR, JDS, JDT), and 2×12-pin connectors (JN, JM) for modular connectivity. It supports artwork revision E (enhanced durability) and functional revisions A/F (subtle performance optimizations), making it compatible with GE’s evolving control architectures.
2. Product Parameters
Parameter
Specification
Manufacturer
General Electric (GE)
Input Voltage
24V DC (Typical for Mark V systems)
Output Relays
12 (Plug-in type)
Connector Types
3×16-pin (JDR/JDS/JDT), 2×12-pin (JN/JM)
Redundancy
Simplex (Non-redundant)
Mounting
Rack-mounted in high-voltage drives
Compatibility
GE Mark V systems, LST TMR assemblies
Dimensions
190 mm × 150 mm × 60 mm (Estimated)
Weight
2.1 kg (Estimated)
3. Advantages and Features
High Reliability: Rated for 200,000+ hours MTBF, ensuring continuous operation in safety-critical environments.
Emergency Trip System: Supports rapid shutdowns via 12 relays, reducing fault response time by 25% compared to legacy models.
Self-Diagnostic Capabilities: Monitors relay health and signal integrity, minimizing unplanned downtime.
Modular Design: Easy replacement of individual relays and connectors for cost-effective maintenance.
4. Application Areas and Application Cases
Energy: Steam turbine protection in thermal power plants.
Industrial Automation: High-voltage drives in chemical and petrochemical facilities.
Oil and Gas: Turbine-driven pumps and compressors.
Case Study: A European refinery upgraded its turbine control system with the DS200TCTSG1AFE, achieving a 30% reduction in emergency shutdown response time and improved compliance with IEC 61508 safety standards.
5. Competition Comparison
Compared to similar simplex trip boards, the DS200TCTSG1AFE offers:
System Compatibility: Verify integration with GE Mark V systems and existing drive configurations.
Safety Requirements: Ensure alignment with local safety codes (e.g., NEC Class I, Division 2).
Load Capacity: Confirm relay current ratings (e.g., 10A per channel) match application demands.
7. Precautions
Installation: Only qualified personnel should handle installation due to high-voltage risks.
Cable Routing: Separate power and signal cables to prevent EMI interference.
Maintenance: Schedule biannual inspections to test relay functionality and clean connectors.
Safety Protocols: Follow GE’s ESD protection guidelines during handling.
