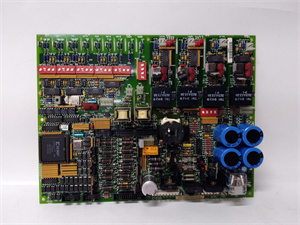

GE DS200DCFBG1BGB

GE DS200DCFBG1BGB
Product Overview
The GE DS200DCFBG1BGB is a high-performance DC Power and Feedback Board engineered for industrial automation systems, specifically tailored for GE’s Mark V series of turbine control systems. Designed to deliver reliable power management and precise feedback control, this module serves as a critical component in applications requiring robust signal conditioning and power regulation.

As part of GE’s legacy in industrial control solutions, the DS200DCFBG1BGB integrates advanced circuit design to provide system-level power distribution and real-time feedback monitoring. It supports a wide input voltage range (38–115 VAC) and frequency flexibility (0–500 kHz), ensuring compatibility with diverse industrial environments. The module’s architecture includes motor field power circuits, driver circuits, and voltage-controlled oscillator (VCO) systems, enabling seamless integration with drives such as DC2000, AC2000, and CB2000. Its dual-rail power output (24 VDC and 48 VDC) with tight voltage regulation (≤5% and ≤10% fluctuations, respectively) ensures stable operation of connected equipment.

Positioned as a cornerstone in turbine control systems, the DS200DCFBG1BGB enhances system reliability by incorporating redundant protection features, including fuse-protected circuits and diagnostic LEDs for real-time status monitoring. Its modular design facilitates easy integration into existing Mark V setups, reducing downtime and maintenance complexity. By combining power supply and feedback functionalities, the module streamlines system architecture, making it ideal for applications where space efficiency and high performance are paramount.

Main Features and Advantages
Dual-Rail Power Distribution: The DS200DCFBG1BGB provides dual DC outputs (24 VDC and 48 VDC) with strict voltage regulation, ensuring stable power delivery to control-level circuits and enclosure fans. This dual-rail design minimizes cross-interference and supports multi-tiered industrial systems.

Comprehensive Feedback Monitoring: Equipped with voltage monitoring circuits and five test points, the module allows real-time tracking of AC line and DC motor signals. This capability enables proactive maintenance by detecting anomalies before they escalate, reducing unplanned downtime.

Flexible Input Compatibility: With support for AC inputs ranging from 38–115 VAC and frequencies up to 500 kHz, the DS200DCFBG1BGB adapts to diverse power sources, making it suitable for global industrial applications. Its VCO circuits convert input voltages into frequency signals (0–500 kHz), enhancing compatibility with variable-speed drives.

Robust Protection Mechanisms: The module includes fuse-protected circuits and diagnostic LEDs to safeguard against voltage surges and monitor operational status. This redundancy ensures continuous operation even in harsh environments, such as those with high electrical noise or voltage instability.

Modular Design for Easy Integration: Designed for seamless integration into GE’s Mark V systems, the DS200DCFBG1BGB uses snap-lock connectors and jumper-configurable settings, simplifying installation and configuration. Its compact form factor (20 × 16 × 16 inches) optimizes space in control cabinets.

Application Field
The GE DS200DCFBG1BGB excels in mission-critical industrial environments, particularly in power generation and process control. In gas and steam turbine systems, it powers drive systems and provides feedback for speed and load regulation, ensuring efficient energy conversion. For example, in a power plant, the module stabilizes power supply to turbine control systems, maintaining consistent output voltage and frequency.

In industrial automation, the DS200DCFBG1BGB supports drives in applications like metal smelting, water treatment, and textile machinery. Its dual-rail power output and feedback monitoring enable precise control of motor-driven processes, such as conveyor belts and robotic arms. In oil and gas facilities, the module’s wide input voltage range and robust protection mechanisms make it suitable for remote pump stations and offshore platforms, where power supply stability is critical.

The module also finds use in heavy machinery and HVAC systems, where it regulates power to variable-speed drives, optimizing energy consumption. Its compatibility with GE’s Mark V series ensures seamless integration with existing infrastructure, reducing retrofitting costs.

Installation and Maintenance
Pre-installation preparation: Ensure the system is powered off and capacitors are discharged. Verify the backplane compatibility and jumper settings against the replaced module. Use anti-static precautions to handle the DS200DCFBG1BGB, as electrostatic discharge can damage sensitive components.

Maintenance recommendations: Regularly inspect the module for physical damage and loose connections. Monitor voltage levels using the onboard test points and replace fuses if tripped. Clean dust accumulation to prevent overheating. Update firmware periodically to address compatibility issues with newer Mark V system software.

Product Guarantee
GE stands behind the DS200DCFBG1BGB with a comprehensive quality assurance program. The module is rigorously tested to meet industry standards, with a typical warranty period of 1 year (extendable to 3 years through authorized distributors). GE’s global support network provides technical assistance for installation, troubleshooting, and replacement, ensuring minimal downtime. In the event of a defect, GE offers prompt repair or replacement, reflecting its commitment to delivering reliable industrial control solutions.

By combining advanced power management, real-time feedback, and rugged design, the GE DS200DCFBG1BGB sets a benchmark for performance in industrial automation and turbine control systems.
