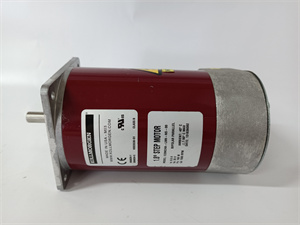

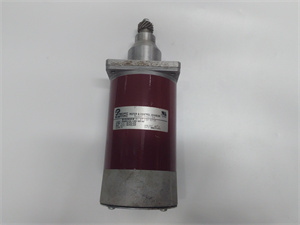

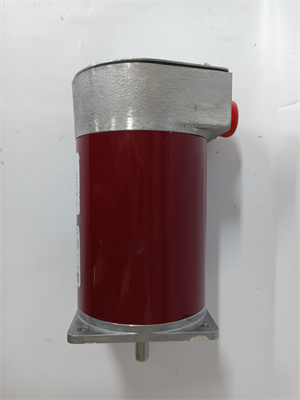

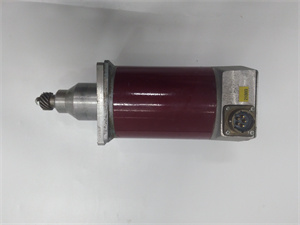

GE E33NCHA-LNN-NS-00

The GE E33NCHA – LNN – NS – 00 is a high – performance hybrid step motor that is part of the esteemed E series by General Electric. In the industrial automation landscape, this motor stands out for its reliability, high torque output, and precise stepping characteristics. It is designed to meet the demands of applications where accurate motion control is crucial.

The E33NCHA – LNN – NS – 00 is engineered with advanced electromagnetic technology, enabling it to convert electrical pulses into precise mechanical rotations. Its design allows for seamless integration into various industrial systems, whether it’s for positioning components in manufacturing machinery, driving conveyor belts with exact speed control, or powering robotic arms for precise movement. This motor is a key component in enhancing the efficiency and accuracy of industrial processes, providing a stable and dependable solution for motion – related tasks in the automation ecosystem.

The GE E33NCHA – LNN – NS – 00 offers a step angle of 1.8°, allowing for extremely precise positioning. In applications such as 3D printing, where layers need to be deposited with micron – level accuracy, this motor ensures that the print head moves precisely, resulting in high – quality prints. In pick – and – place robotic systems, it enables accurate grasping and placement of small components, reducing errors and increasing productivity.

With a NEMA 34 frame size and a sturdy build, this step motor can withstand harsh industrial environments. It has a 3 – stack standard NEMA end bell, providing versatile mounting options. The Sigmax construction and Class B insulation make it durable, suitable for continuous operation in dusty, humid, or high – temperature industrial settings. For example, in a textile mill where there is a lot of lint in the air, the E33NCHA – LNN – NS – 00 can operate reliably without being affected by the particles.

The motor is optimized for energy efficiency, featuring high – efficiency and low – loss characteristics. This not only helps in reducing the overall energy consumption of industrial systems but also lowers operating costs. In large – scale manufacturing plants with numerous motors running simultaneously, the energy savings achieved by using the GE E33NCHA – LNN – NS – 00 can be significant.

In manufacturing lines, the GE E33NCHA – LNN – NS – 00 is used to control the movement of conveyor belts, ensuring that products are transported at a consistent speed. It also powers the actuators in automated assembly machines, precisely positioning parts for accurate assembly. In a car manufacturing plant, for instance, it can be used to position the robotic arms that attach components to the vehicle chassis with high precision.

Robotic systems, especially those involved in tasks such as material handling and precision assembly, rely on the E33NCHA – LNN – NS – 00 for its high – torque and accurate stepping capabilities. In a warehouse, robotic forklifts equipped with this motor can precisely pick up and place pallets, optimizing storage space and improving the efficiency of material handling operations.

In medical devices like precision surgical robots or diagnostic equipment, the GE E33NCHA – LNN – NS – 00 enables smooth and accurate movement. For example, in a robotic – assisted surgical system, the motor can control the movement of the surgical instruments with sub – millimeter precision, enhancing the safety and effectiveness of the procedure.

Similar to the E33NCHA – LNN – NS – 00, it is also a step motor in the E series. However, it may have differences in specific features such as torque output or shaft options, making it suitable for applications with slightly different requirements.

This is a DC servo motor from GE. While the E33NCHA – LNN – NS – 00 is a step motor, the AKM 33E – ANCNR – 00 offers different control characteristics. It is more suitable for applications that require continuous rotation and variable speed control, as opposed to the discrete stepping motion of the E33NCHA – LNN – NS – 00.

A servo drive, the CP 310250 can be used in conjunction with the E33NCHA – LNN – NS – 00 to provide the necessary power and control signals. It helps in optimizing the performance of the step motor, ensuring smooth operation and precise control.

Another servo drive, the AKD – B 00606 – NAAN – 0000 offers advanced control features. It can be used to upgrade the control system for the E33NCHA – LNN – NS – 00, providing more flexibility in motor operation, such as better acceleration and deceleration control.

This servo controller unit can be used to manage and monitor the operation of the E33NCHA – LNN – NS – 00. It provides functions like fault detection and performance optimization, ensuring the reliable operation of the step motor in industrial applications.

Pre – installation preparation: Before installing the GE E33NCHA – LNN – NS – 00, carefully check the motor for any visible signs of damage during transit, such as dents on the casing or loose wires. Ensure that the mounting surface is clean, flat, and capable of withstanding the forces exerted by the motor during operation. Familiarize yourself with the wiring diagram provided in the product manual to correctly connect the 4 – wire parallel connection. Also, verify that the power supply voltage matches the motor’s rated 220V.
Maintenance recommendations: Regularly clean the E33NCHA – LNN – NS – 00 to remove dust and debris that may accumulate over time, as this can affect its performance and heat dissipation. Check the motor’s mounting bolts periodically to ensure they are tight. Monitor the motor’s operating temperature; if it exceeds normal levels, it could indicate a problem with the motor or its operating environment. If any abnormal noises or vibrations are detected, refer to the product manual for troubleshooting steps or contact GE’s technical support team.

General Electric offers a comprehensive product guarantee for the GE E33NCHA – LNN – NS – 00. The company stands behind the quality and reliability of this step motor. In the unlikely event of manufacturing defects, GE will provide repair or replacement services during the warranty period. Their global network of technical support teams is available to offer prompt assistance for installation guidance, troubleshooting, and any other technical issues related to the E33NCHA – LNN – NS – 00. This guarantee reflects GE’s confidence in the product, ensuring customers can rely on it for their critical industrial applications.
