Product Overview

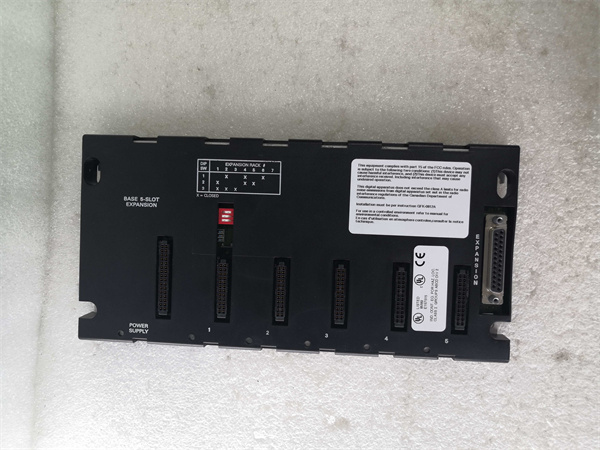

The GE IC693CHS398 is a 5 – slot expansion baseplate, an essential component within the GE Series 90 – 30 programmable logic controller (PLC) platform. Initially developed by GE Fanuc and now under Emerson Automation, this baseplate serves as a crucial enabler for system expansion in industrial control setups. Its primary function is to provide additional slots for integrating input/output (I/O) modules and option modules, thereby enhancing the control system’s capabilities. By incorporating the IC693CHS398, industrial facilities can expand their system’s I/O capacity, allowing for more comprehensive monitoring and control of various processes. This expansion baseplate is not a stand – alone unit; it must be connected to a system that has a central processing unit (CPU), which can be part of a PLC or a personal computer equipped with a suitable interface card. It thus plays a pivotal role in optimizing the performance and flexibility of industrial automation systems, making it a go – to choice for those looking to scale their control infrastructure.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC693CHS398 |
| Manufacturer | GE (formerly GE Fanuc, now under Emerson Automation) |
| Product Type | I/O Expansion Baseplate |
| Number of Slots | 6 (5 for I/O/option modules and 1 unnumbered for power supply) |
| I/O Slots | 5 |
| Power Supply Slot | 1 |

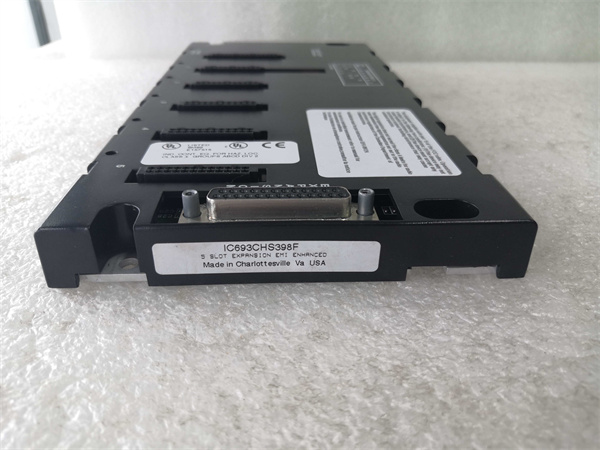

| Expansion Connector | 25 – pin D – shell female connector for connection to other baseplates |
| Compatible CPUs | CPU 331, 340, 341, 350 or higher |
| Maximum Expansion Cable Length | 50 feet (15 meters) |
| Number of Permitted I/O Expansion Baseplates (CPU – dependent) | For CPU 331, 340, 341: 4; For CPU 350 and higher: 7 |
| Grounding | Common ground required |
| Mounting | Panel mounting |
| Dimensions | 10.43 x 5.12 x 5.59 in (W x H x D) |
| Internal Power Consumption | 170 mA at 5 VDC |
IC693CHS398
Main Features and Advantages
Scalability
The GE IC693CHS398 offers remarkable scalability for industrial control systems. With its 5 I/O slots, it allows for the integration of a diverse range of I/O and option modules. This means that as industrial processes grow or change, additional sensors, actuators, or specialized modules can be easily added. For example, in a manufacturing plant, if new production lines are introduced that require more input monitoring or output control, the IC693CHS398 enables the seamless addition of relevant I/O modules. This scalability feature future – proofs industrial control setups, saving both time and money by eliminating the need for a complete system overhaul.
Compatibility
It is highly compatible with a wide range of CPUs within the Series 90 – 30 platform. Whether it’s CPU 331, 340, 341, or those numbered 350 and higher, the IC693CHS398 can be integrated smoothly. This compatibility ensures that it can be used in existing systems without major re – engineering efforts. It also allows for flexibility in system design, as users can choose the most appropriate CPU based on their specific processing requirements while still being able to use the expansion baseplate effectively.
Standardized Design
The baseplate follows a standardized design with unique slot sizes for different module types. This prevents improper module installation, reducing the risk of system malfunctions due to incorrect connections. The 25 – pin D – shell female expansion connector at the right – hand end of the baseplate is a standard interface for connecting to other baseplates, ensuring easy and reliable expansion of the control system. Additionally, the requirement for a common ground across all expansion modules in the system, as applicable to the IC693CHS398, adheres to industry – standard safety and electrical integrity practices.
IC693CHS398
Application Field
Manufacturing Industry
In manufacturing, the GE IC693CHS398 finds extensive use. In automotive manufacturing, it can be used to expand the control system for robotic assembly lines. More I/O modules can be added to monitor and control the movement of robotic arms more precisely, ensuring accurate part placement. In food and beverage production, it can be used to expand the control system for packaging machines. Additional I/O modules can monitor parameters such as fill levels, label placement, and seal integrity, improving product quality and production efficiency.
Power Generation
Power plants rely on the IC693CHS398 for system expansion. In a coal – fired power plant, it can be used to add more I/O modules to monitor and control various aspects of the boiler operation, such as fuel feed rate, air intake, and steam pressure. In a wind farm, it can expand the control system for wind turbines. Additional I/O modules can be used to monitor wind speed, direction, and turbine blade pitch, optimizing power generation.
Process Industries (Chemical, Petrochemical, etc.)
In chemical and petrochemical plants, the GE IC693CHS398 is invaluable. It can be used to expand the control system for chemical reactors. More I/O modules can be added to monitor and control temperature, pressure, and chemical composition during reactions, ensuring safe and efficient operation. In oil refineries, it can expand the control system for distillation units. Additional I/O modules can monitor and control the flow of crude oil, intermediate products, and refined products, enhancing the overall process control.
Related Products
- GE IC693CHS392: A 10 – slot expansion baseplate in the same Series 90 – 30 family. While the IC693CHS398 has 5 slots, the IC693CHS392 offers more slots for a larger – scale expansion of I/O and option modules, suitable for more complex industrial control requirements.
- GE CPU 331: One of the compatible CPUs with the IC693CHS398. It can work in tandem with the expansion baseplate, with the IC693CHS398 providing additional I/O capabilities to the system controlled by the CPU 331.
- GE IC693CBL302: A 50 – foot (15 – meter) continuous – shield cable with a built – in terminator. It is compatible with the IC693CHS398 and is used for connecting the expansion baseplate to other components in the control system, ensuring reliable signal transmission over long distances.
- GE I/O Modules (e.g., IC693MDL641C): These modules can be installed in the slots of the IC693CHS398. For example, the IC693MDL641C is an I/O module that can be used to interface with digital signals in the industrial control system, and the IC693CHS398 provides the platform for its integration.
- GE Power Supply Modules: A dedicated power supply module is required for the IC693CHS398 to operate. These power supply modules are installed in the unnumbered slot of the baseplate and provide the necessary electrical power for the baseplate and the modules installed in its slots.
Installation and Maintenance
Pre – installation preparation: Before installing the GE IC693CHS398, first, ensure that the power to the entire industrial control system is switched off to avoid electrical hazards. Inspect the baseplate for any visible signs of damage, such as bent connectors or cracks on the circuit board. Familiarize yourself with the installation manual, which details the proper connection of power supply modules to the unnumbered slot on the left – hand side of the baseplate. Also, note the correct way to set the rack number selection dip switch, which is crucial for proper identification within the control system. Make sure that the panel where the baseplate will be mounted is clean, flat, and free of any debris.
Maintenance recommendations: Regularly check the IC693CHS398 for any signs of overheating, such as discolored components or a burnt smell. Clean the baseplate periodically to remove dust and dirt that could potentially affect the performance of the modules installed in it. Inspect the connections of the I/O and option modules in the slots to ensure they are secure. If any issues are detected, such as a malfunctioning I/O module or a problem with the expansion connector, refer to the troubleshooting section of the product manual. In case of a major malfunction, contact GE’s technical support or an authorized service center for repair or replacement advice.
Maintenance recommendations: Regularly check the IC693CHS398 for any signs of overheating, such as discolored components or a burnt smell. Clean the baseplate periodically to remove dust and dirt that could potentially affect the performance of the modules installed in it. Inspect the connections of the I/O and option modules in the slots to ensure they are secure. If any issues are detected, such as a malfunctioning I/O module or a problem with the expansion connector, refer to the troubleshooting section of the product manual. In case of a major malfunction, contact GE’s technical support or an authorized service center for repair or replacement advice.
Product Guarantee
GE, now under Emerson Automation for this product line, stands firmly behind the quality of the GE IC693CHS398. The baseplate undergoes rigorous quality control during the manufacturing process to meet high – performance standards. A comprehensive warranty is provided, which typically covers manufacturing defects for a specified period. In case of any quality – related issues within the warranty period, GE’s global technical support team is readily available. They can offer detailed guidance on installation, troubleshooting, and, if required, arrange for the repair or replacement of the IC693CHS398 baseplate. This demonstrates GE’s commitment to customer satisfaction and the long – term reliability of their product in industrial applications.
