Product Overview
The GE VME7768 – 320000 is a high – performance VMEbus single – board computer, a product of General Electric. This 6U (4HP) single – slot Eurocard – format board is designed to meet the demanding computational needs in industrial automation, control systems, and embedded applications. It belongs to the series featuring Intel Core 2 Duo or Celeron M processors, providing users with options based on their performance and temperature requirements.
Equipped with an Intel Core 2 Duo processor that can reach up to 2.16 GHz (or an Intel Celeron M option), the GE VME7768 – 320000 offers powerful computing capabilities. It comes with up to 2GB of DDR2 SDRAM, ensuring smooth multitasking and fast data access. The integration of the Intel 945 GME Express chipset further enhances its performance and provides a wide range of I/O interfaces. This single – board computer is a key component in industrial systems, enabling efficient data processing, communication, and control, thus enhancing the overall performance and reliability of the automation system.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | VME7768 – 320000 |
| Manufacturer | General Electric |
| Product Type | VMEbus Single – Board Computer |
| Processor | Intel Core 2 Duo up to 2.16 GHz / Intel Celeron M |
| Cache | 4 Mbyte (Core 2 Duo), 1 Mbyte (Celeron M) |
| Memory | Up to 2 Gbyte DDR2 SDRAM |
| System and Memory Bus | 667 MHz (Core 2 Duo), 533 MHz (Celeron M) |
| Storage | Up to 8 Gbyte Bootable CompactFlash |
| Serial Ports | Two 16550 – Compatible Serial Ports |
| USB Ports | 4 x USB 2.0 Ports |
| Ethernet Ports | 2 x Gigabit Ethernet Ports |
| Expansion Slot | One PCI – X PMC Expansion Site |
| Operating Temperature | 0 – 55 °C (Intel Core 2 Duo), 0 – 70 °C (Intel Celeron M) |
| Storage Temperature | – 40 – 80 °C |
| Relative Humidity | 5% – 95%, Non – Condensing |

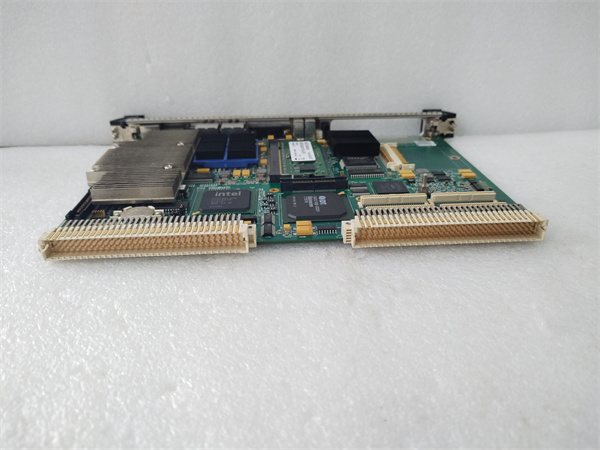

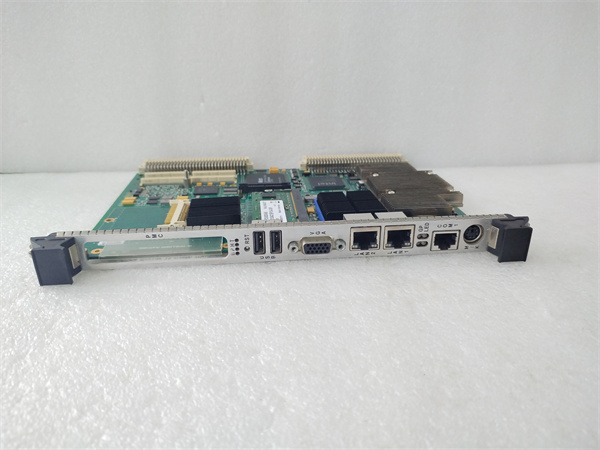

GE VME7768-320000
Main Features and Advantages
High – performance Computing: The GE VME7768 – 320000‘s powerful Intel Core 2 Duo or Celeron M processors handle complex tasks with ease. For applications needing rapid data processing, like real – time analytics in industrial control, the Core 2 Duo’s 2.16 GHz speed ensures quick response times. The substantial DDR2 SDRAM further boosts multitasking and data access efficiency.
Rich I/O Interfaces: With dual gigabit Ethernet ports, high – speed network connectivity is guaranteed, crucial for seamless data transfer in large – scale industrial networks. The inclusion of two SATA interfaces enables connection to fast storage devices, while four USB 2.0 ports facilitate attachment of various peripherals. The presence of keyboard, mouse, and SVGA interfaces on the front panel simplifies local operation and monitoring.
Scalability: The board features a PCI – X PMC expansion site, allowing users to add extra processor modules or expansion cards. Additionally, it provides three more PMC expansion points for customers, enhancing its flexibility. This scalability is a boon for evolving industrial applications that may require additional functionality over time.
Rugged Design: Built to withstand harsh industrial environments, the GE VME7768 – 320000 has a wide operating temperature range. The Intel Celeron M option can operate in temperatures up to 70 °C, making it suitable for use in factories with high ambient temperatures or areas with poor ventilation.
Rich I/O Interfaces: With dual gigabit Ethernet ports, high – speed network connectivity is guaranteed, crucial for seamless data transfer in large – scale industrial networks. The inclusion of two SATA interfaces enables connection to fast storage devices, while four USB 2.0 ports facilitate attachment of various peripherals. The presence of keyboard, mouse, and SVGA interfaces on the front panel simplifies local operation and monitoring.
Scalability: The board features a PCI – X PMC expansion site, allowing users to add extra processor modules or expansion cards. Additionally, it provides three more PMC expansion points for customers, enhancing its flexibility. This scalability is a boon for evolving industrial applications that may require additional functionality over time.
Rugged Design: Built to withstand harsh industrial environments, the GE VME7768 – 320000 has a wide operating temperature range. The Intel Celeron M option can operate in temperatures up to 70 °C, making it suitable for use in factories with high ambient temperatures or areas with poor ventilation.
Application Field
Industrial Process Control: In power generation plants, the GE VME7768 – 320000 is used to monitor and control complex processes. For instance, it can manage the operation of turbines, regulating parameters like steam flow and temperature in real – time. By analyzing data from numerous sensors, it ensures optimal power generation efficiency and stability.
Manufacturing Automation: In automotive manufacturing, this single – board computer plays a vital role. It controls robotic arms on the assembly line, ensuring precise and fast part handling. It can also manage conveyor belts, adjusting their speed according to the production pace, thus enhancing overall production efficiency and product quality.
Transportation Infrastructure: In smart transportation systems, the GE VME7768 – 320000 can be used to manage traffic control centers. It processes data from various traffic sensors, such as cameras and vehicle detectors, and then sends out control signals to traffic lights. This helps in optimizing traffic flow, reducing congestion, and improving transportation safety.
Environmental Monitoring: For environmental monitoring stations, the board can handle data from multiple sensors measuring air quality, water pollution levels, and weather conditions. It analyzes this data and can trigger alerts when certain thresholds are crossed, contributing to effective environmental protection and management.
Manufacturing Automation: In automotive manufacturing, this single – board computer plays a vital role. It controls robotic arms on the assembly line, ensuring precise and fast part handling. It can also manage conveyor belts, adjusting their speed according to the production pace, thus enhancing overall production efficiency and product quality.
Transportation Infrastructure: In smart transportation systems, the GE VME7768 – 320000 can be used to manage traffic control centers. It processes data from various traffic sensors, such as cameras and vehicle detectors, and then sends out control signals to traffic lights. This helps in optimizing traffic flow, reducing congestion, and improving transportation safety.
Environmental Monitoring: For environmental monitoring stations, the board can handle data from multiple sensors measuring air quality, water pollution levels, and weather conditions. It analyzes this data and can trigger alerts when certain thresholds are crossed, contributing to effective environmental protection and management.

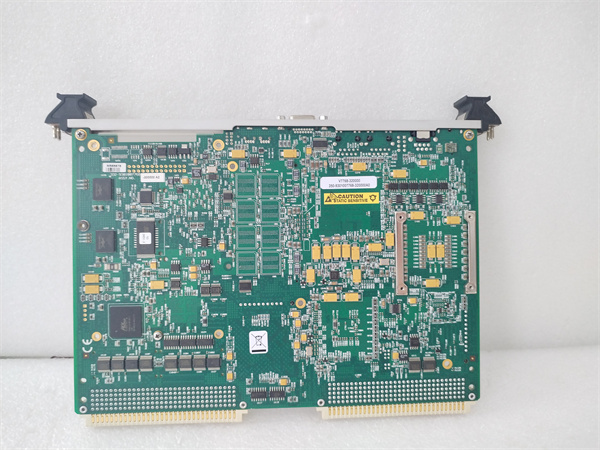

GE VME7768-320000
Related Products
GE VME7750: An Intel Pentium III – based VME single – board computer. It offers lower computing power compared to the GE VME7768 – 320000, making it suitable for applications with less demanding processing requirements but still needing reliable operation.
GE VMIVME – 7658: A high – performance processor board that can be used in combination with the GE VME7768 – 320000 to provide additional computing resources or to expand system functionality in more complex industrial setups.
GE VMIVME – 4140: A 32 – channel 12 – bit analog output board. It can be connected to the GE VME7768 – 320000 in industrial control systems to output analog signals for controlling various devices, such as motors or valves.
GE VMIVME – 2170A: A 32 – bit optically isolated digital output board. It is used to output digital signals in harsh industrial environments, and can be integrated with the GE VME7768 – 320000 for applications that require digital control of external equipment.
GE VMIC 332 – OO 4512 – 300 – G: A single – board computer board similar in function to the GE VME7768 – 320000, but it may be more focused on specific applications such as aerospace and defense, with potentially different design requirements and performance characteristics.
GE VMIVME – 7658: A high – performance processor board that can be used in combination with the GE VME7768 – 320000 to provide additional computing resources or to expand system functionality in more complex industrial setups.
GE VMIVME – 4140: A 32 – channel 12 – bit analog output board. It can be connected to the GE VME7768 – 320000 in industrial control systems to output analog signals for controlling various devices, such as motors or valves.
GE VMIVME – 2170A: A 32 – bit optically isolated digital output board. It is used to output digital signals in harsh industrial environments, and can be integrated with the GE VME7768 – 320000 for applications that require digital control of external equipment.
GE VMIC 332 – OO 4512 – 300 – G: A single – board computer board similar in function to the GE VME7768 – 320000, but it may be more focused on specific applications such as aerospace and defense, with potentially different design requirements and performance characteristics.
Installation and Maintenance
Pre – installation preparation: Before installing the GE VME7768 – 320000, ensure the installation environment meets the specified temperature and humidity requirements. The power supply should be stable and of the correct voltage. Thoroughly inspect the board for any visible damage, like bent pins or cracks in the casing. Familiarize yourself with the VMEbus backplane layout, as the GE VME7768 – 320000 needs to be properly slotted. Also, make sure to have all the necessary tools and follow proper electrostatic discharge (ESD) precautions.
Maintenance recommendations: Regularly monitor the operating temperature of the GE VME7768 – 320000 to ensure it stays within the specified range. Check the status of the fans (if applicable) to guarantee proper cooling. Periodically clean the board to remove dust, as dust accumulation can affect performance. When issues arise, consult the product manual for troubleshooting steps. For more complex problems, reach out to GE’s technical support team for expert assistance.
Product Guarantee
GE stands firmly behind the quality of the GE VME7768 – 320000. The product comes with a standard warranty, covering defects in materials and workmanship under normal usage conditions. In case of any quality – related issues during the warranty period, GE’s dedicated technical support team is available to provide comprehensive assistance. They can help with installation guidance, troubleshooting, and if necessary, arrange for product repair or replacement. This commitment reflects GE’s confidence in the product’s reliability and performance, giving customers peace of mind when integrating the GE VME7768 – 320000 into their critical industrial systems.
