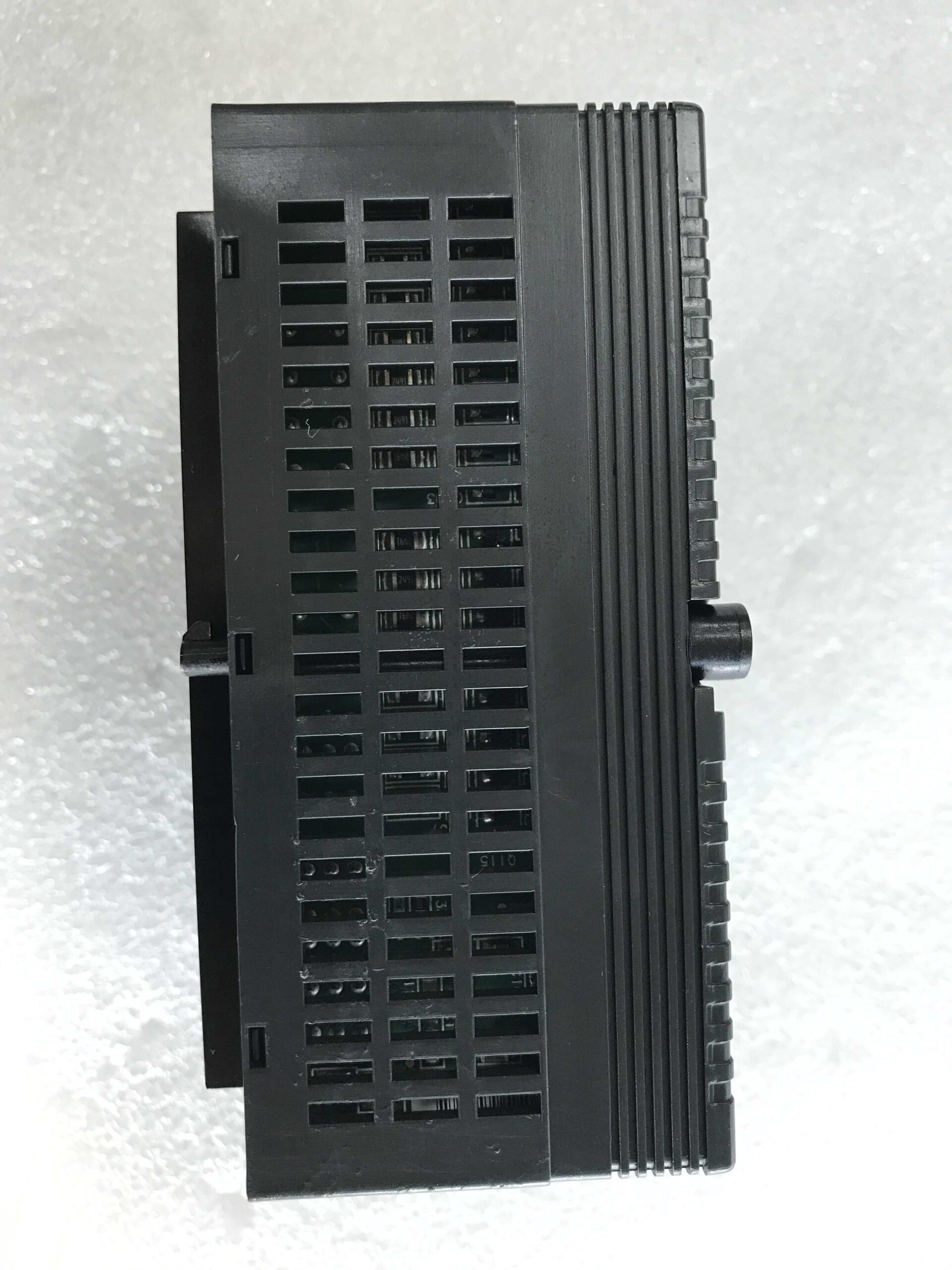

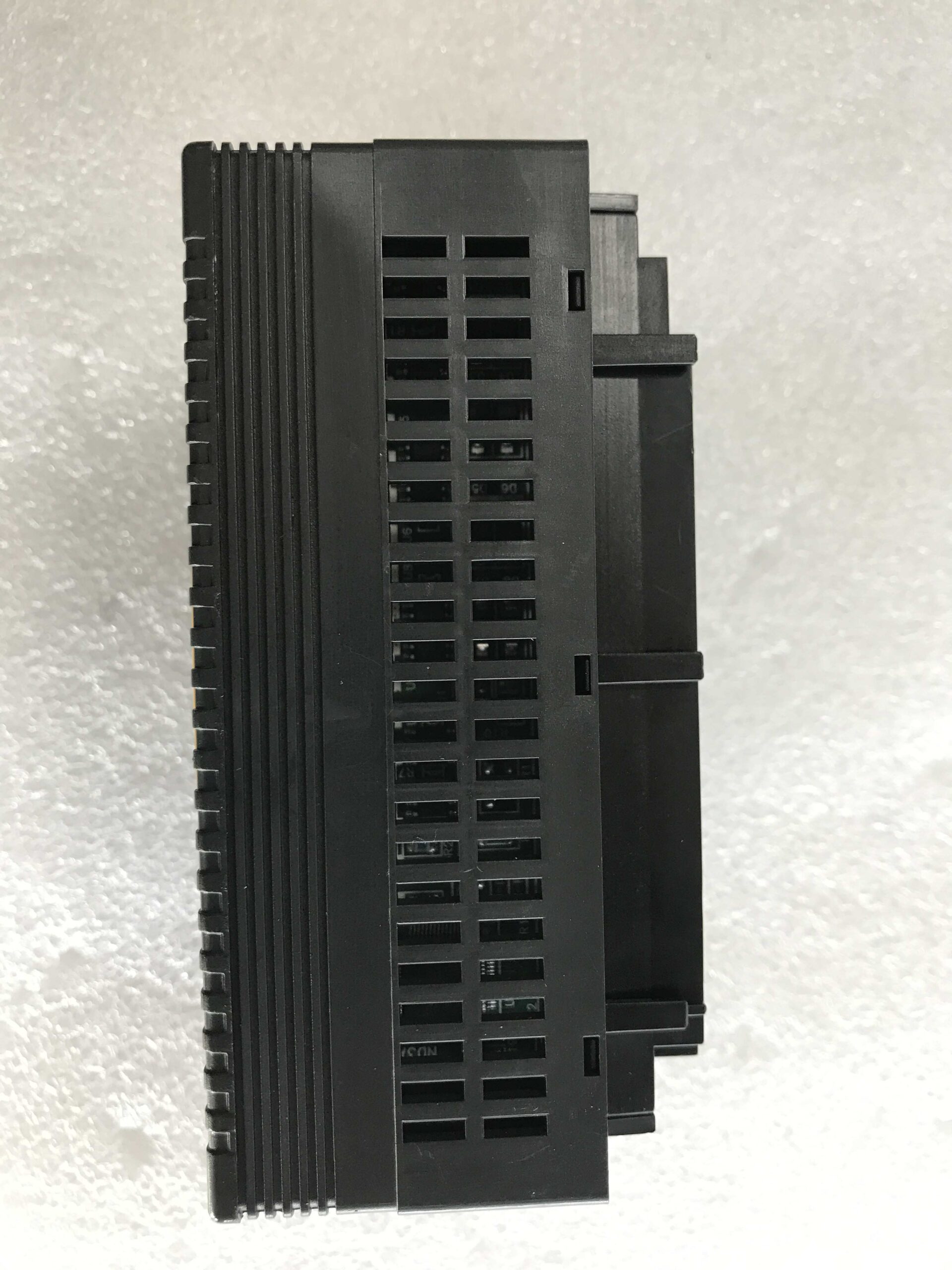

IC200MDD843H

Description

1. Product Description

2. Product Parameters

3. Advantages and Features

• High – Current Output: The IC200MDD843H can supply a relatively high current per channel. For example, in an industrial conveyor system, it can easily drive the solenoid valves that control the movement of the conveyor belts. The 2A output current per channel ensures reliable operation of the valves, even under heavy – load conditions.
• Fast Response Time: With a response time of less than 10 ms, the module can quickly respond to control signals from the CPU. In a high – speed packaging line, this fast response time allows for precise control of the packaging machinery, improving the overall production efficiency.
• Good Electrical Isolation: The 1500V AC isolation voltage provides effective protection against electrical interference and short – circuits. In a factory environment with high electrical noise, such as near large motors, the isolation helps to maintain the stability of the PLC system and prevent damage to the module and other connected components.
• Modular Design: The modular design of the IC200MDD843H makes it easy to install and replace in the PLC rack. It can be easily integrated into existing IC200 series systems, allowing for flexible system expansion and maintenance.

4. Application Fields and Application Cases

• Application Fields: The IC200MDD843H is widely used in industries such as manufacturing, energy, and water treatment. In manufacturing, it can control the operation of automated production lines, including robotic arms, welding machines, and assembly equipment. In the energy sector, it can be used to control the switching of electrical circuits and the operation of relays in power distribution systems. In water treatment plants, it can control the operation of pumps, valves, and aerators.
• Application Case: In a chemical manufacturing plant, the IC200MDD843H is used to control a series of solenoid valves that regulate the flow of different chemicals in the production process. The high – current output of the module ensures that the valves can open and close reliably, even in the presence of high – pressure chemical flows. The fast response time allows for precise control of the chemical dosing, improving the quality and consistency of the chemical products.

5. Competitor Comparison

6. Selection Advice

• Compatibility: Ensure that the IC200MDD843H is compatible with your existing GE Fanuc IC200 series PLC system. Check the communication protocol, power supply requirements, and the number of available slots in the PLC rack.
• Load Requirements: Evaluate the power requirements of the external devices you need to control. Make sure the module’s output current and voltage ratings are sufficient to drive the loads.
• Budget: Consider your budget when selecting the module. While the IC200MDD843H offers excellent performance, make sure it fits within your financial constraints.
• Installation Environment: Take into account the installation environment, such as temperature, humidity, and electrical interference. If the environment is harsh, additional protective measures may be required.

7. Precautions

• Installation: Follow the manufacturer’s installation instructions carefully. Ensure proper grounding to prevent electrical interference. Make sure all connections to the power supply, CPU, and external devices are secure.
• Operation: Do not exceed the specified operating parameters, such as power supply voltage, output current, and temperature limits. Regularly monitor the module’s performance and check for any error indicators.
• Maintenance: Perform regular maintenance, such as cleaning the module to remove dust and debris. Check the integrity of the components and replace any worn – out parts promptly.
