Product Overview

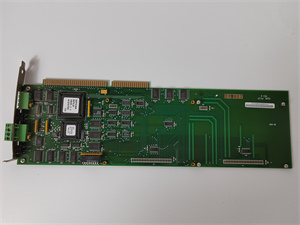

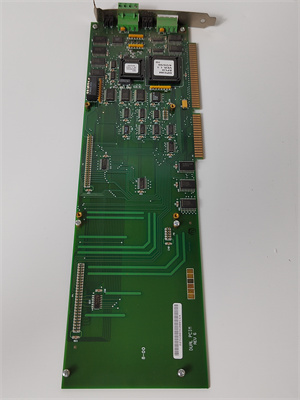

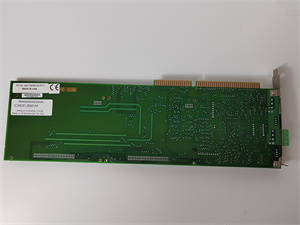

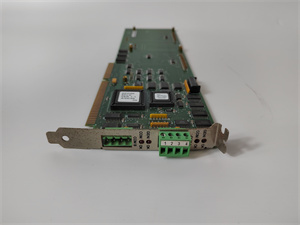

The GE IC660ELB921M is a single – channel Genius I/O PCIM card that holds great significance in industrial automation setups. As part of GE’s product portfolio, it is engineered to facilitate seamless communication and control within industrial systems. This card is a crucial component for integrating the Genius LAN with the IBM PC/AT/XT family and GE Fanuc Genius bus controllers.
The IC660ELB921M is designed to control input and output voltages precisely. It requires a 5V DC logic power source. With 8,000 input and 8,000 output locations, it offers remarkable flexibility. It can be configured as input – only for effectively reading Genius block information or output – only for writing to Genius block outputs. This adaptability makes it suitable for a wide array of industrial applications, from basic monitoring tasks to complex control operations. By enabling reliable data exchange between different components in the industrial network, the GE IC660ELB921M enhances the overall efficiency and stability of industrial automation systems.
Technical Specifications
|
Parameter Name
|
Parameter Value
|
|
Product Model
|
IC660ELB921M
|
|
Manufacturer
|
GE
|
|
Product Type
|
Single – Channel Genius I/O PCIM Card
|
|
Input Voltage
|
24 VDC
|
|
Output Voltage
|
24 VDC
|
|
Logic Power Requirement
|
5V DC
|
|
Input Locations
|
8,000
|
|
Output Locations
|
8,000
|
|
Board Type
|
AT – type
|
|
Operating Temperature
|
0 °C – 60 °C
|
|
Storage Temperature
|
– 40 °C – + 70 °C
|
|
Relative Humidity
|
5% – 95% non – condensing
|
|
Bus Load (Input)
|
1 LS TTL load per input
|
|
Bus Drive Capacity (Output)
|
10 LS TTL loads per output
|
|
Memory Requirement (Module)
|
4 bytes
|
|
Memory Requirement (Installed Daughterboard)
|
16 KB
|
|
Current Drawn from Backplane
|
400 mA max at 5 VDC (+/-10%)
|
IC660ELB921M
Main Features and Advantages
Single – Slot PCIM Design
The IC660ELB921M features a single – slot PCIM design, which allows for straightforward integration into user – developed microprocessor systems. This design simplifies the installation process and saves space within the control cabinet, making it an ideal choice for applications where space is at a premium.
Daughterboard Functionality
The included daughterboard provides an efficient way to control devices on the Genius serial bus. It can manage errors for a minimum of 30 bus devices during initialization. Additionally, it offers a cost – effective tap on any Genius FE I/O bus. This enables the host system to take advantage of the advanced diagnostics, high data consistency, and excellent noise protection features of the Genius I/O system.
Easy Configuration
Configuration of the IC660ELB921M is made hassle – free with the supplied configuration software. This software allows for independent setup of the daughterboard, giving users the flexibility to customize the module according to their specific application requirements. Whether it’s adjusting input/output settings or fine – tuning communication parameters, the configuration process is intuitive and user – friendly.
Compatibility
The card is fully compatible with Genius protocols and handheld monitors. This compatibility ensures seamless integration with existing Genius – based industrial systems. It can communicate effectively with other Genius – enabled devices, enabling comprehensive monitoring and control of the entire industrial network.
IC660ELB921M
Application Field
The GE IC660ELB921M finds extensive use in various industrial sectors. In manufacturing plants, it plays a vital role in controlling production lines. It can monitor and adjust the performance of machines, manage the movement of robotic arms, and ensure the smooth flow of materials. For example, it can be used to control the speed and position of conveyor belts, optimizing the production process.
In power generation facilities, the IC660ELB921M is utilized for monitoring and controlling power – related equipment. It can interface with sensors that measure parameters such as voltage, current, and temperature, helping to ensure the stable and efficient operation of generators and transformers.
In the chemical and petrochemical industries, this card is used to regulate complex chemical processes. It can control the opening and closing of valves, adjust the flow rate of chemicals, and monitor reaction conditions, ensuring the safety and productivity of the operations.
Related Products
- IC660ELB922: Similar to the IC660ELB921M, but may have additional features or a different configuration. It could potentially offer enhanced performance in certain aspects, such as increased bus device management capabilities or improved communication speeds.
- GE Fanuc Genius Bus Controller: Essential for the IC660ELB921M to function. It manages the communication and coordination between different devices on the Genius network, working in tandem with the IC660ELB921M to ensure smooth data transfer.
- GE Fanuc Handheld Monitor: Compatible with the IC660ELB921M, it allows operators to conveniently monitor and configure the card and the connected Genius I/O system in the field.
- Other Genius I/O Modules: Such as input modules, output modules, and analog modules. These can be used in combination with the IC660ELB921M to expand the functionality of the industrial automation system, enabling more comprehensive monitoring and control.
- GE Fanuc Programmable Logic Controllers (PLCs): Often used together with the IC660ELB921M to perform complex control tasks. The PLCs can communicate with the Genius I/O system through the IC660ELB921M card, enhancing the overall control capabilities of the industrial process.
Installation and Maintenance
Pre – installation preparation
Before installing the GE IC660ELB921M, first, verify that the host system has an available ISA – compatible slot. Check the power supply to ensure it can stably provide the required 5V DC logic power with the specified tolerance. Inspect the Genius LAN infrastructure for any potential issues or compatibility problems. Make sure to have the configuration software ready for post – installation setup. When handling the IC660ELB921M, take appropriate electrostatic discharge (ESD) prevention measures to avoid damaging the sensitive components.
Maintenance recommendations
Regularly check the status LEDs on the IC660ELB921M to monitor its operation. If the “Sub – board OK” or “Communication OK” LEDs show abnormal states, refer to the user manual for troubleshooting steps. Periodically clean the card to prevent dust accumulation, which could affect its performance. Check the connections of the daughterboard and any associated cables for signs of looseness or damage. Update the configuration software when new versions are available to ensure optimal functionality and compatibility with the latest Genius network requirements.
Product Guarantee
GE stands firmly behind the quality of the IC660ELB921M with a comprehensive product guarantee. The product is manufactured to high – quality standards, using top – grade materials and advanced manufacturing processes. GE offers a standard warranty period during which any manufacturing defects will be rectified. Their team of technical experts is available to provide prompt and efficient after – sales service. Whether it’s a query regarding installation, configuration, or a technical issue, GE’s support team can offer remote or on – site assistance as needed. This guarantee not only reflects GE’s confidence in the IC660ELB921M but also their commitment to ensuring customer satisfaction and the long – term reliability of industrial automation systems.
