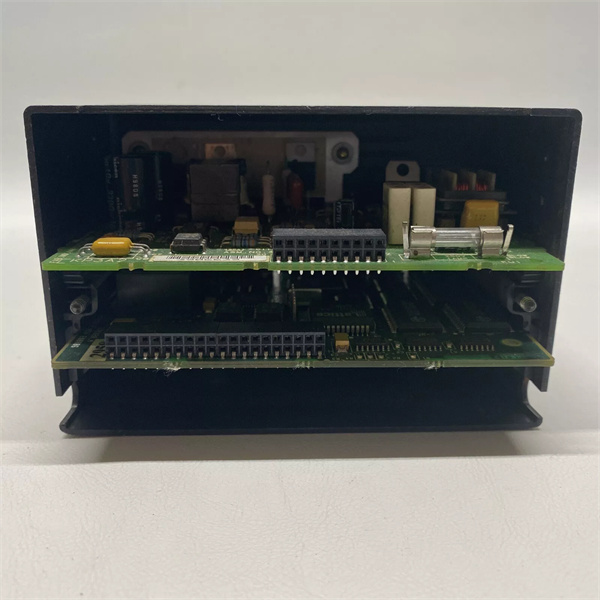

GE Fanuc IC670PBI001 Power Supply Module for Series 90-30 PLCs
The GE Fanuc IC670PBI001 is a high-efficiency power supply module designed for GE’s Series 90-30 Programmable Logic Controllers (PLCs), delivering stable 24V DC power to support industrial automation systems. This module is optimized for reliability in harsh environments, such as manufacturing plants, chemical processing facilities, and transportation infrastructure.
1. Product Overview
TheIC670PBI001 converts 120/240V AC input to 24V DC output, providing clean power to the PLC backplane and connected I/O modules. Its compact design ensures seamless integration into Series 90-30 chassis, supporting up to 5A continuous current. Key features include overload protection, thermal shutdown, and compliance with global safety standards (CE, UL, CSA).
2. Technical Specifications
Parameter
Specification
Input Voltage
120/240V AC (auto-ranging)
Output Voltage
24V DC ±5%
Rated Current
5A continuous
Efficiency
85% (min) at full load
Power Consumption
120W max (at 24V/5A)
Operating Temperature
-40°C to +60°C
Certifications
CE, UL, CSA, IEC 61131-2
IC670PBI001
3. Key Features
Dual-Voltage Support: Automatically adapts to 120V or 240V AC, ideal for global deployments.
Advanced Protection: Overvoltage (OVP) and overcurrent (OCP) protection safeguard against power surges.
Modular Design: Fits directly into Series 90-30 chassis slots, reducing wiring complexity.
LED Indicators: Clear status lights for power, fault, and overload conditions.
4. Applications
Industrial Automation: Powers PLCs and I/O modules in robotics, assembly lines, and process control systems.
Energy Sector: Supports distributed control in power generation, renewable energy installations, and smart grids.
Infrastructure: Used in water/wastewater treatment, railways, and airport systems.
5. Installation & Maintenance
Mounting: Slide into a Series 90-30 chassis slot and secure with screws.
Wiring: Connect AC input via terminal blocks (L1, L2, N) and DC output to the backplane.
Cooling: Passive cooling design; no fans required.
Troubleshooting: Replace the module if fault indicators persist after reset.
IC670PBI001
6. Alternatives & Compatibility
IC670PBI002: 10A output version for higher-power requirements.
IC670PBI003: 15A output with redundant power support.
Third-Party Options: Compatible with GE’s Proficy Machine Edition software for configuration.
Shanxi Xinyeda International Trading Co., Ltd. offers new and refurbished GE Fanuc IC670PBI001 modules with a 1-year warranty. Contact us for bulk pricing or customized power solutions. Visit www.xydcontrol.com for documentation.
