Product Overview

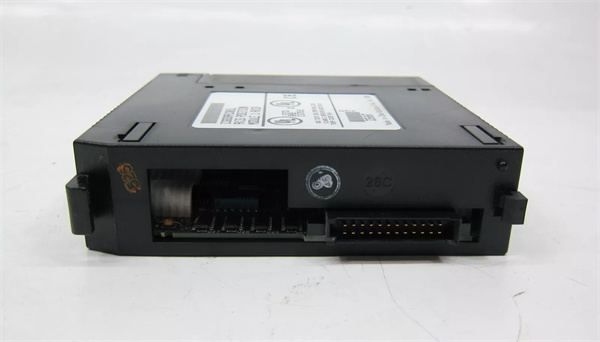

The GE IC693APU300K is a high – speed controller module designed by GE Fanuc for industrial automation systems. It belongs to the 90 – 30 series of GE Fanuc PLCs, occupying a crucial position in the automation control field. This module is mainly used for various control tasks in industrial production, such as motion control, process control, and sequential control. It has a wealth of functions, including a built – in Ethernet interface that supports communication protocols such as SRTP and Modbus TCP/IP, enabling real – time data interaction with other devices in the system1. With 32KB of user memory and 4K I/O, it can handle a large amount of data and control signals. In addition, it has a fast – processing ability, with a logic execution speed of 0.22msec/K, which can meet the requirements of high – speed control applications1. The GE IC693APU300K can be programmed through Proficy Logic Developer PLC Machine Edition and supports multiple programming languages, providing users with flexible programming options1.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC693APU300K |
| Manufacturer | General Electric |
| Product Type | High – speed Controller Module |
| Memory Capacity | 32KB user memory |
| I/O Capacity | 4K |
| Logic Execution Speed | 0.22msec/K |
| Communication Protocols | SRTP, Modbus TCP/IP |
| Power Supply | Isolated +24 VDC, consumes 27 mA from +5 VDC output of PLC power supply |
| Input Voltage | 5/12/24 VDC |
| Output Current | 0.5 A max per output at 12/24 VDC, 0.02 A max per output at 5 VDC |
| Physical Dimensions | Approximately [specific dimensions not found, but generally compact to fit in standard PLC racks] |
| Installation Method | Installed in PLC rack |
| Electrical Isolation | Optical isolation between field wiring and backplane |
Main Features and Advantages
High – speed processing: The GE IC693APU300K has a fast logic execution speed, which can quickly process various control instructions and data, and is suitable for applications that require high – speed response, such as high – speed packaging and motion control.
Rich communication functions: With a built – in Ethernet interface, it supports multiple communication protocols, which is convenient for networking with other devices in the factory automation system, and realizes seamless integration of the entire system.
Flexible programming: It supports multiple programming languages, including ladder diagram (LDI), instruction list (IL), structure text (ST), and C block. Programmers can choose the appropriate programming language according to their own habits and project requirements, which improves the programming efficiency and maintainability.
High reliability: The module adopts optical isolation technology to isolate externally generated noise between field wiring and the backplane, which can effectively prevent the interference of external electromagnetic signals and ensure the stability and reliability of the system operation.
Rich communication functions: With a built – in Ethernet interface, it supports multiple communication protocols, which is convenient for networking with other devices in the factory automation system, and realizes seamless integration of the entire system.
Flexible programming: It supports multiple programming languages, including ladder diagram (LDI), instruction list (IL), structure text (ST), and C block. Programmers can choose the appropriate programming language according to their own habits and project requirements, which improves the programming efficiency and maintainability.
High reliability: The module adopts optical isolation technology to isolate externally generated noise between field wiring and the backplane, which can effectively prevent the interference of external electromagnetic signals and ensure the stability and reliability of the system operation.
Application Field
The GE IC693APU300K is widely used in various industrial fields. In the manufacturing industry, it is used in production lines such as high – speed packaging, injection molding, and material handling to realize the precise control of equipment motion and production process. In the mining industry, it can be used for the control of mining equipment and the monitoring of production processes. In the field of water treatment, it is used to control the water treatment process and the operation of related equipment to ensure the quality of treated water. In addition, it also has applications in elevator control, food processing, and continuous emission monitoring. For example, in elevator control, it can accurately control the running speed and position of the elevator, improve the safety and comfort of the elevator; in food processing, it can control the temperature, humidity, and conveying speed in the production process to ensure the quality of food.
Related Products
- IC693CPU311: It is another controller module in the same series as the GE IC693APU300K, with higher processing power and more memory, suitable for more complex control systems.
- IC693MDL940: An I/O module that can be used in conjunction with the GE IC693APU300K to expand the I/O capacity of the system and meet the needs of different control signals.
- IC693ACC300: An accessory module that provides additional functions such as analog signal processing and communication interface expansion for the GE IC693APU300K system.
- IC695APU030: An upgraded version of the controller module, which has better performance and functions than the GE IC693APU300K, and is suitable for large – scale and high – performance automation control systems.
- IC697CPU780: A high – end controller module with powerful processing capabilities and rich interfaces. It can be used as an alternative product for the GE IC693APU300K in some high – end applications to meet more demanding control requirements.
Installation and Maintenance
Pre – installation preparation: Before installing the GE IC693APU300K, make sure that the power supply of the installation environment meets the requirements, and check whether the voltage and current are stable. Clean the installation site to avoid dust and debris from entering the module. At the same time, check whether the PLC rack is in good condition to ensure the correct installation and fixation of the module.
Maintenance recommendations: Regularly check the operating status of the GE IC693APU300K, including the status of indicator lights and the temperature of the module. Clean the surface of the module regularly to prevent dust from affecting heat dissipation. Check the connection of cables and interfaces to ensure reliable contact. In addition, it is recommended to back up the program and data in the module regularly to prevent data loss in case of equipment failure.
Maintenance recommendations: Regularly check the operating status of the GE IC693APU300K, including the status of indicator lights and the temperature of the module. Clean the surface of the module regularly to prevent dust from affecting heat dissipation. Check the connection of cables and interfaces to ensure reliable contact. In addition, it is recommended to back up the program and data in the module regularly to prevent data loss in case of equipment failure.
Product Guarantee
GE provides a quality – assured GE IC693APU300K product. The company offers a certain – period quality warranty to ensure that the product is free from defects in materials and workmanship. If the product fails during the warranty period due to quality problems, GE will provide free repair or replacement services. In addition, GE also provides professional technical support to help customers solve various problems encountered during the use of the product, and is committed to ensuring the normal operation of the customer’s automation system.
