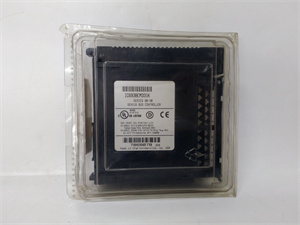

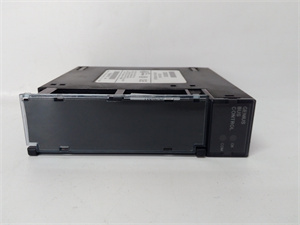

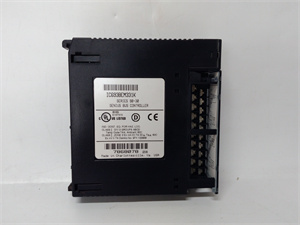

IC693BEM331

Description

1. Product Description

2. Product Parameters

3. Advantages and Features

• High – speed Communication: With 10/100 Mbps auto – sensing capabilities, the IC693BEM331 can transfer data at high speeds, ensuring real – time communication between the PLC and other devices. This is crucial for applications where timely data exchange is necessary for efficient process control.
• Multiple Protocol Support: The support for multiple communication protocols like Modbus/TCP, Ethernet/IP, DHCP, and DNS makes the module highly versatile. It can communicate with a wide range of devices from different manufacturers, facilitating system integration in complex industrial environments.
• Concurrent Connections: The ability to handle up to 8 concurrent connections allows the module to communicate with multiple devices simultaneously. This is useful in large – scale industrial setups where the PLC needs to interact with multiple HMIs, sensors, and other control devices.
• Robust Design: Built to withstand harsh industrial environments, the module has an operating temperature range of – 20°C to 60°C. It can also tolerate electrical interference, vibrations, and dust, ensuring reliable performance in challenging conditions.

4. Application Fields and Application Cases

• Application Fields
  • Manufacturing: In manufacturing plants, the IC693BEM331 can be used to connect the PLC to HMIs on the shop floor, allowing operators to monitor and control production processes in real – time. It can also be used to communicate with other PLCs in a distributed control system for coordinated operation of different production lines.
  • Energy: In power generation and distribution systems, the module can connect the PLC to SCADA systems for remote monitoring and control of power equipment. It enables the collection of data on electrical parameters such as voltage, current, and power, and the transmission of control commands to adjust equipment operation.
  • Transportation: In transportation applications, such as railway signaling systems or airport baggage handling systems, the IC693BEM331 can be used to connect the PLC to other control devices for seamless operation and monitoring of the transportation infrastructure.
• Application Case
  • In an automotive manufacturing plant, the IC693BEM331 is used to connect the PLC controlling the robotic welding stations to an HMI located in the control room. Operators can monitor the status of the welding process, including parameters such as welding current, voltage, and duration, in real – time. They can also send control commands to the PLC to adjust the welding process as needed. The high – speed communication provided by the module ensures that any changes in the process are immediately reflected on the HMI, and the control commands are executed promptly, improving the quality and efficiency of the welding process.

5. Competitor Comparison

6. Selection Advice

• Compatibility: Ensure that the IC693BEM331 is compatible with your existing GE Fanuc IC693 PLC system. Check the communication protocols, power supply requirements, and the number of available slots in the PLC rack.
• Communication Requirements: Evaluate your specific communication requirements, such as the required data transfer rate, the number of devices to be connected, and the types of protocols needed. Make sure the module can meet these requirements.
• Budget: Consider your budget when selecting the module. While the IC693BEM331 offers high – quality performance, make sure it fits within your financial constraints.
• Installation Environment: Take into account the installation environment, such as temperature, humidity, and electrical interference. If the environment is harsh, ensure that the module can withstand these conditions.

7. Precautions

• Installation: Follow the manufacturer’s installation instructions carefully. Ensure proper grounding to prevent electrical interference. Make sure all connections to the power supply, Ethernet network, and PLC are secure.
• Operation: Do not exceed the specified operating parameters, such as power supply voltage, temperature limits, and the maximum number of concurrent connections. Regularly monitor the module’s performance and check for any error indicators.
• Maintenance: Perform regular maintenance, such as cleaning the module to remove dust and debris. Check the integrity of the Ethernet cables and connectors, and replace any worn – out parts promptly.
