1. Product Overview

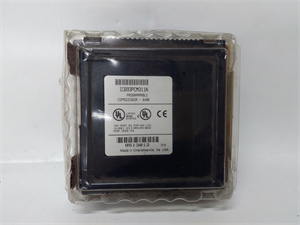

The IC693PCM301 is a Programmable Communication Module (PCM) developed by GE Fanuc, which is an important part of their IC693 series of Programmable Logic Controller (PLC) systems. This module is designed to enable communication between the PLC and other devices in an industrial network, facilitating data exchange and control functions.
2. Product Parameters
| Parameter | Details |
|---|---|
| Power Supply | It typically operates on a 24V DC power supply with a tolerance of ±10%. This is a standard voltage in industrial PLC setups, ensuring compatibility with other components in the control system. |
| Communication Interfaces | – Serial Interface: It often comes with one or more serial ports, such as RS – 232 or RS – 485. These serial interfaces are useful for connecting to legacy devices, modems, or other equipment that use serial communication protocols. – Ethernet Interface: An Ethernet port is usually available, supporting communication speeds like 10/100 Mbps. Ethernet allows for high – speed data transfer and is suitable for connecting to modern industrial devices, HMIs (Human – Machine Interfaces), and other PLCs in a network. |
| Supported Communication Protocols | – Modbus RTU/ASCII: Enables communication with Modbus – compatible devices, which are widely used in industrial automation for sensor and actuator control. – Ethernet/IP: A common industrial Ethernet protocol that allows for seamless integration with other Ethernet/IP – enabled devices in a network, facilitating real – time data exchange. – DH+ (DeviceNet Highway Plus): This protocol is used for connecting to older GE Fanuc devices and other compatible equipment in an industrial network. |
| Data Transfer Rate | The data transfer rate depends on the communication protocol and interface used. For example, Ethernet communication can achieve speeds up to 100 Mbps, while serial communication (e.g., RS – 485) may have rates ranging from 9600 bps to 115200 bps. |
| Isolation | Electrical isolation is provided between the communication interfaces and the power supply, typically with an isolation voltage of 1500V AC. This isolation helps protect the module and connected devices from electrical interference and short – circuits. |
| Operating Temperature Range | It can operate within a temperature range of – 20°C to 60°C. This wide temperature tolerance allows the module to be used in various industrial environments, from cold storage facilities to hot manufacturing plants. |
| Dimensions | Compact in size, with approximate dimensions that are designed to fit into standard PLC racks. For example, it might have dimensions around 177mm (L) x 100mm (W) x 62mm (H). |
| Weight | Weighs around 0.5 kg, which is relatively light and does not add significant weight to the overall PLC system. |
| Compatibility | Specifically designed to be compatible with the GE Fanuc IC693 series of PLCs, ensuring seamless integration into existing or new control systems using this series. |
3. Advantages and Features
- Multi – protocol Support: The ability to support multiple communication protocols (Modbus RTU/ASCII, Ethernet/IP, DH+) makes the IC693PCM301 highly versatile. It can communicate with a wide range of devices, whether they are legacy equipment using serial protocols or modern devices using Ethernet – based protocols. This flexibility simplifies system integration in complex industrial environments.
- High – speed Data Transfer: With the Ethernet interface supporting speeds up to 100 Mbps, the module can transfer data quickly between the PLC and other devices in the network. This is crucial for applications where real – time data exchange is required, such as in high – speed manufacturing processes or large – scale industrial control systems.
- Electrical Isolation: The 1500V AC electrical isolation between the communication interfaces and the power supply provides protection against electrical interference. It helps prevent electrical noise from affecting the communication signals, ensuring reliable data transfer and reducing the risk of system malfunctions.
- Easy Integration: Being part of the GE Fanuc IC693 series, it integrates seamlessly with other modules in the series. This simplifies the configuration and programming of the PLC system, reducing the time and effort required for system setup and maintenance.
4. Application Fields and Application Cases
- Application Fields
- Manufacturing: In manufacturing plants, the IC693PCM301 can be used to connect the PLC to various devices on the production line, such as robotic arms, conveyor belt controllers, and quality control sensors. It enables real – time monitoring and control of the production process, improving efficiency and product quality.
- Energy: In power generation and distribution systems, it can connect the PLC to remote monitoring devices, such as sensors in power transformers or generators. This allows for real – time data collection on electrical parameters, enabling better control and management of the power grid.
- Water Treatment: In water treatment plants, the module can connect the PLC to sensors measuring water quality parameters (e.g., pH, turbidity) and actuators controlling pumps and valves. This ensures efficient operation of the water treatment process and compliance with water quality standards.
- Application Case
- In an automotive manufacturing plant, the IC693PCM301 is used to connect the PLC controlling the robotic welding stations to an HMI in the control room. The module communicates with the HMI using Ethernet/IP protocol, allowing operators to monitor the status of the welding process in real – time. It also communicates with the robotic arms using Modbus RTU to send control commands for precise welding operations. This setup has improved the efficiency of the welding process and reduced the number of defective welds.
5. Competitor Comparison
Compared to other communication modules in the market, the IC693PCM301 offers several advantages. Its multi – protocol support is often more comprehensive than some competing products, allowing it to interface with a wider range of devices. The high – speed Ethernet communication and robust electrical isolation also give it an edge in terms of data transfer speed and reliability. Some competitors may have limited protocol support or lower data transfer rates, which can restrict their usability in complex industrial applications.
6. Selection Advice
- Compatibility: Ensure that the IC693PCM301 is compatible with your existing GE Fanuc IC693 PLC system. Check the communication protocols, power supply requirements, and the number of available slots in the PLC rack.
- Communication Requirements: Evaluate your specific communication needs, such as the types of devices you need to connect, the required data transfer rate, and the communication protocols they support. Make sure the module can meet these requirements.
- Budget: Consider your budget when selecting the module. While the IC693PCM301 offers high – quality performance, make sure it fits within your financial constraints.
- Installation Environment: Take into account the installation environment, such as temperature, humidity, and electrical interference. If the environment is harsh, ensure that the module can withstand these conditions.
7. Precautions
- Installation: Follow the manufacturer’s installation instructions carefully. Ensure proper grounding to prevent electrical interference. Make sure all connections to the power supply, communication cables, and the PLC are secure.
- Operation: Do not exceed the specified operating parameters, such as power supply voltage, data transfer rates, and temperature limits. Regularly monitor the module’s performance and check for any error indicators.
- Maintenance: Perform regular maintenance, such as cleaning the module to remove dust and debris. Check the integrity of the communication cables and connectors, and replace any worn – out parts promptly.
Shanxi Xinyeda International Trade Co., Ltd. offers sales and technical support for the IC693PCM301 and other automation spare parts. Visit our website www.xydcontrol.com or contact us for more information.
