The IC693PWR322F is a 100–240VAC input power supply module engineered for industrial PLC systems. It delivers 5VDC (10A) and 24VDC (2A) outputs, ensuring stable power for CPU, I/O, and communication modules. With built-in overvoltage/overcurrent protection and support for hot-swap redundancy, the IC693PWR322F minimizes downtime in mission-critical operations. Its compact design (125mm × 100mm × 120mm) and DIN-rail mounting simplify integration into 控制柜 setups. GE Fanuc’s IC693PWR322F is trusted for its compliance with global standards (CE, UL) and compatibility with Series 90-30 PLCs.
2. Product Parameters
Parameter
Specification
Input Voltage
100–240VAC (50/60Hz)
Output Voltage
5VDC (10A) + 24VDC (2A)
Efficiency
≥95% (full load)
Redundancy
Support for dual power supply configuration
Operating Temperature
0°C to +55°C (with derating at >40°C)
Mounting
DIN rail (TS35/7.5)
Dimensions
125mm (W) × 100mm (H) × 120mm (D)
MTBF
500,000 hours (per MIL-HDBK-217F)

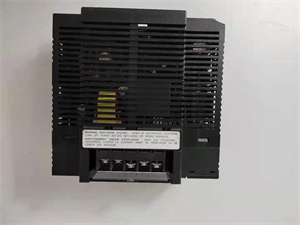

IC693PWR322F
3. Advantages and Features
High Reliability: Industrial-grade components and 500,000+ hours MTBF ensure long-term stability in harsh environments.
Redundancy Support: Dual power supply capability (with IC693PWR322F paired modules) eliminates single points of failure.
Wide Voltage Range: 100–240VAC input supports global applications without additional voltage converters.
Energy Efficiency: 95% efficiency reduces power consumption and heat generation.
Case Study: A North American food processing plant deployed IC693PWR322F in redundant mode for its packaging line PLC system. The module’s hot-swap redundancy and 95% efficiency reduced unplanned downtime by 80% while cutting energy costs by 12%.
5. Competitive Comparison
Compared to similar PLC power supply modules:
Redundancy Flexibility: Supports true dual-supply redundancy (vs. limited or no redundancy in 竞品).
Voltage Range: 100–240VAC (vs. 200–240VAC in most alternatives).
Efficiency: 95% (vs. 85–90% in standard modules).
Footprint: 30% smaller than legacy GE Fanuc power supplies while maintaining higher current capacity.
IC693PWR322F
6. Selection Recommendations
System Requirements: Match output current (5V/10A + 24V/2A) to your PLC’s power needs (e.g., Series 90-30 CPU modules require ≤8A at 5V).
Environment: For outdoor or high-temperature settings (+55°C+), pair with cooling fans; derate power at >40°C.
Redundancy Needs: Use two IC693PWR322F modules for N+1 redundancy in critical systems (e.g., water treatment, oil refining).
Follow ESD protocols; use anti-static gloves during handling.
Cooling: Maintain 10mm clearance around the module for airflow; avoid enclosed environments without ventilation.
Maintenance:
Inspect capacitors for swelling every 5 years (expected lifespan: 7–10 years).
Replace modules if input/output voltages deviate >5% from specifications.
