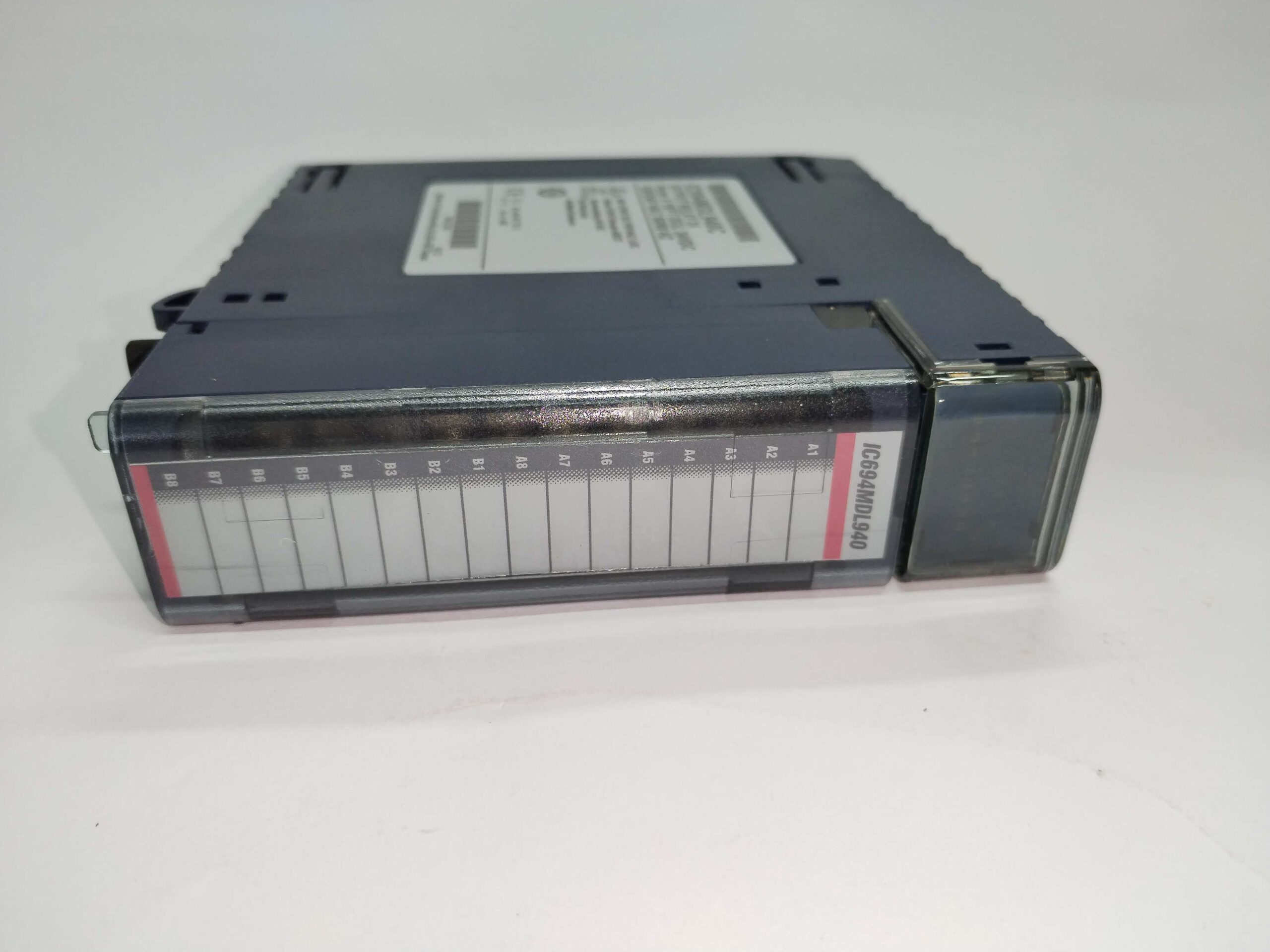

The IC694MDL940 is a high-performance digital input module designed by GE Fanuc for its VersaMax PLC system. This module is engineered to interface with industrial sensors, switches, and other discrete input devices, providing reliable data acquisition for automation control systems. The IC694MDL940 supports 16 channels of 24V DC input, with opto-isolation to protect against voltage spikes and electrical noise. Its compact design and robust construction make it suitable for harsh industrial environments. By integrating the IC694MDL940 into automation setups, users benefit from precise signal processing, simplified wiring, and seamless compatibility with GE Fanuc’s VersaMax architecture.
2. Product Parameters
Parameter
Specification
Input Type
24V DC (sinking/sourcing)
Number of Channels
16
Opto-Isolation
500Vrms (channel-to-common)
Voltage Range
16–30V DC
Current per Channel
6mA (at 24V DC)
Response Time
1.5ms (ON)/1.5ms (OFF)
Compatibility
GE Fanuc VersaMax PLC systems
Dimensions (W×H×D)
1.65×3.62×3.85 inches (42×92×98mm)
IC694MDL940
3. Advantages and Features
High Reliability: The IC694MDL940 features a MTBF (Mean Time Between Failures) of over 1,000,000 hours, ensuring long-term operational stability.
Wide Voltage Range: Supports 16–30V DC inputs, accommodating diverse industrial sensors and reducing compatibility issues.
Space-Saving Design: 16 channels in a compact form factor, ideal for applications with limited panel space.
Enhanced Noise Immunity: Opto-isolation and surge protection safeguard against electrical interference.
Easy Integration: Plug-and-play compatibility with VersaMax racks, minimizing setup time and complexity.
4. Application Areas and Use Cases
Industries: Manufacturing, energy, water treatment, automotive, and machine automation. 典型应用场景:
Automotive Assembly Lines: Monitors conveyor belt sensors and safety switches in a 24V DC network, ensuring seamless production flow.
案例: A leading automotive plant in Germany reduced downtime by 20% using the IC694MDL940, thanks to its rapid response time and rugged design in high-vibration environments.
5. Competitive Comparison
Compared to similar digital input modules, the IC694MDL940 offers:
Higher Channel Density: 16 channels vs. typical 8–12 channels in comparable modules.
Wider Voltage Tolerance: 16–30V DC vs. 20–28V DC in most alternatives.
Superior Environmental Rating: Operates at -40°C to +70°C (extended temperature range vs. standard 0°C to +55°C).
IC694MDL940
6. Selection Recommendations
Compatibility: Ensure compatibility with GE Fanuc VersaMax racks (e.g., IC694CHS011).
Environmental Conditions: Specify the module for extreme temperatures or high humidity using its IP20-rated enclosure.
Cost-Efficiency: For high-channel applications, the 16-channel design reduces per-channel costs by 15% compared to multi-module setups.
7. Precautions
Installation: Follow GE Fanuc’s wiring guidelines to avoid reverse polarity (input terminals 1–16: +24V DC; COM: 0V DC).
Maintenance: Regularly inspect connectors for corrosion; clean dust with a dry cloth.
Safety: Disconnect power before replacing the module to prevent electric shock.
声明: Shanxi Xinye Da International Trade Co., Ltd. is your trusted partner for IC694MDL940 and other automation spare parts. We provide sales and technical support for GE Fanuc, ABB, and other leading brands. Visit our website www.xydcontrol.com or contact us for customized solutions.
