Product Overview
The GE IC695CPE310 – ABAB is a high – performance central processing unit (CPU) module, playing a pivotal role in industrial automation systems. It is part of GE’s renowned PACSystems RX3i series, designed to meet the complex control and monitoring demands across diverse industries.
This module comes equipped with a 1.1 GHz microprocessor, endowing it with the capacity to handle intricate control logics and algorithms with remarkable speed. It offers rapid real – time responses, which is crucial for applications where split – second decisions are necessary. The GE IC695CPE310 – ABAB supports a wide array of communication protocols, making it highly versatile in connecting with other devices within the industrial network. With its large memory capacity, it can store substantial amounts of user programs, data, and historical records, facilitating seamless operation and in – depth data analysis. Whether in a large – scale manufacturing plant, a power generation facility, or a process – heavy chemical plant, the GE IC695CPE310 – ABAB provides reliable control and monitoring capabilities, ensuring smooth industrial processes and enhanced productivity.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC695CPE310 – ABAB |
| Manufacturer | General Electric |
| Product Type | Central Processing Unit (CPU) Module |
| Series | PACSystems RX3i |
| Processor Speed | 1.1 GHz |
| User Logic Memory | 10 MB |
| Discrete I/O Memory | 32 k bits |
| Analog I/O Memory | 32 k words |
| Memory Type | SRAM, Flash |
| Communication Ports | 1 Ethernet; 2 Serial (1 RS232, 1 RS485) |
| Supported Protocols | Ethernet/IP, Modbus TCP, SNP, Serial I/O, Modbus Slave, Modbus Master |
| Ethernet Data Rate | 10/100 Mbps |
| Power Requirement | 1 amp at +5 and + 3.3 volts dc, 0.5 amps at +24 volts dc |
| Operating Temperature Range | 0 to 60°C (32°F to 140°F) |
| Backplane | Universal Backplane |

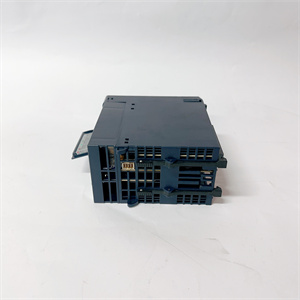

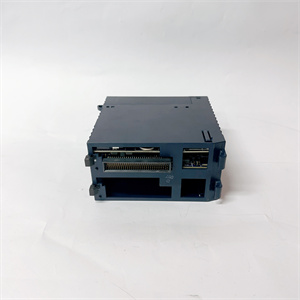

IC695CPE310-ABAB
Main Features and Advantages
High – Performance Processing
The 1.1 GHz microprocessor in the GE IC695CPE310 – ABAB enables it to execute complex control tasks with ease. It has a boolean execution speed of 0.72 ms/k, ensuring quick handling of logic operations. This high – speed processing is beneficial in scenarios such as high – speed manufacturing lines where rapid decision – making based on sensor inputs is required to maintain production efficiency.
Versatile Communication Capabilities
Featuring one Ethernet port and two serial ports (RS232 and RS485), the module supports multiple communication protocols. This allows it to interface with a wide range of devices, including sensors, actuators, and other control systems. For example, it can communicate with Modbus – compatible devices, enabling seamless data exchange in industrial networks. The ability to support various protocols makes the GE IC695CPE310 – ABAB adaptable to different industrial setups without the need for extensive re – engineering.
Ample Memory and Storage
With 10 MB of user memory and non – volatile flash memory, the module can store large user programs and retain data even during power outages. The 32 k discrete I/O and 32 k analog I/O memory provide sufficient capacity to handle a significant number of input and output signals. This is particularly useful in large – scale industrial applications where numerous sensors and actuators need to be connected and controlled. The ample memory also allows for the storage of historical data, which can be used for performance analysis and troubleshooting.
Application Field
In the manufacturing industry, the GE IC695CPE310 – ABAB is extensively used to control production lines. It can manage the operation of robotic arms, conveyor belts, and other manufacturing equipment, ensuring precise and coordinated movement. For instance, in an automotive manufacturing plant, it can control the assembly process, making sure each component is installed correctly and in a timely manner, thus improving product quality and production speed.
Power generation plants rely on the GE IC695CPE310 – ABAB to monitor and control various aspects of power production. It can regulate the operation of turbines, manage the distribution of power, and monitor the performance of generators. By providing real – time control and data analysis, it helps optimize power generation efficiency and ensure stable power supply.
The chemical industry also benefits from this module. In chemical plants, it can control complex processes such as chemical reactions, material handling, and product separation. It can monitor parameters like temperature, pressure, and flow rates in real – time and make adjustments as needed to ensure safe and efficient production. For example, in a petrochemical refinery, the GE IC695CPE310 – ABAB can manage the refining process to produce high – quality fuels and chemicals.

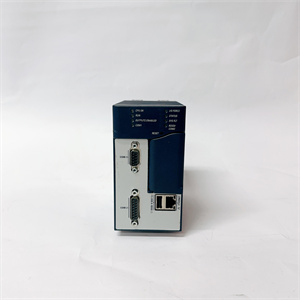

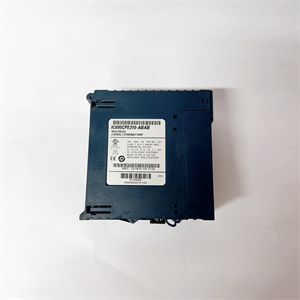

IC695CPE310-ABAB
Related Products
- GE IC695CPE310 – AAAA: A variant within the same series, likely with some differences in features or specifications compared to the GE IC695CPE310 – ABAB. It may have a different version of firmware or specific hardware configurations tailored for certain applications.
- GE IC695ETM001 (Rack – based Ethernet Interface Module): This module can be used in conjunction with the GE IC695CPE310 – ABAB to enhance its Ethernet functionality. It supports a full set of Ethernet features and, when used together, can enable better connectivity in industrial Ethernet networks.
- GE IC660BBD022 (16 – Circuit Source/Sink I/O Blocks): These I/O blocks can be connected to the GE IC695CPE310 – ABAB to expand its input and output capabilities. They are useful when more I/O channels are required to interface with additional sensors and actuators in an industrial setup.
- GE VMIVME – 3125 (Analog Input Board): Can be integrated into the system where the GE IC695CPE310 – ABAB is used. It is designed to handle analog input signals, which can then be processed by the CPU module for control and monitoring purposes.
- GE MVME5500 (Single – Board Computer): While it has a different form factor and function compared to the GE IC695CPE310 – ABAB, in some industrial systems, both may be used in combination. The MVME5500 might handle specific computing tasks, and the GE IC695CPE310 – ABAB could be responsible for overall control and communication within the same industrial setup.
Installation and Maintenance
Pre – installation preparation: Before installing the GE IC695CPE310 – ABAB, carefully read the installation manual provided by GE. Ensure that the installation environment meets the specified temperature and humidity requirements, as the module is designed to operate within a temperature range of 0 to 60°C. Check the compatibility of the module with other components in the industrial control system, such as power supplies and communication interfaces. Power off all related equipment to prevent electrical accidents during installation. Verify that the universal backplane, where the module will be installed, is in good condition and properly configured. Make sure that the required cables and connectors for the Ethernet and serial ports are of the correct type and in working order.
Maintenance recommendations: Regularly inspect the GE IC695CPE310 – ABAB for any signs of physical damage, such as cracks on the circuit board or loose connections. Clean the module periodically to remove dust and dirt, which can affect its performance over time. Monitor the module’s operation status, including its processing speed, memory usage, and communication activity. Update the module’s firmware to the latest version provided by GE to benefit from improved functionality, bug fixes, and enhanced security. If any issues are detected, refer to the troubleshooting guide in the manual or contact GE’s technical support for assistance. Also, check the battery – backed real – time clock (if applicable) to ensure accurate timekeeping for data logging and control operations.
Product Guarantee
GE stands firmly behind the quality of the GE IC695CPE310 – ABAB module. The product is manufactured using high – quality materials and advanced manufacturing processes, ensuring it meets strict industry standards. GE offers a standard warranty period during which any manufacturing defects will be rectified free of charge. Their global network of technical support teams is available to assist customers with installation, configuration, and troubleshooting. Whether it’s answering questions about the module’s operation or providing guidance on maintenance, customers can rely on GE’s expertise. This guarantee reflects GE’s confidence in the product and their commitment to providing reliable industrial control solutions, giving customers peace of mind when using the GE IC695CPE310 – ABAB in their critical applications.
