High Compatibility: Supports a variety of communication protocols and can work with different devices and systems in the industrial field, which greatly improves the flexibility of the system. For example, in a multi-vendor industrial setup, the IC695PBM300 can communicate effectively with various sensors and actuators.
High Data Capacity: It can handle up to 3,584 bytes of input and output data, which is sufficient for most industrial control applications that require a large amount of data transmission and processing. This allows for comprehensive monitoring and control of complex industrial processes.
Reliable Communication: With PROFIBUS-compliant module and network status LEDs, it can clearly display the working status of the module and the network, helping users to quickly identify and troubleshoot problems. This feature reduces downtime and maintenance costs.
Fast Data Transmission: Supports high-speed data transmission rates, which can meet the requirements of real-time control in industrial automation scenarios. In fast-paced manufacturing environments, timely data transfer is crucial, and the IC695PBM300 delivers on this front.

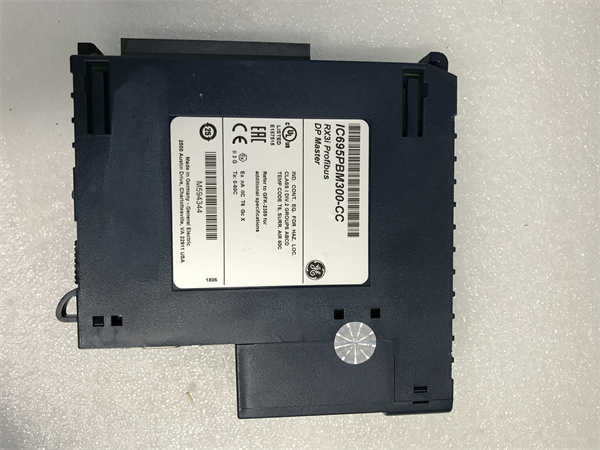

The IC695PBM300 is a PROFIBUS master module of the GE Fanuc RX3i series. It enables the RX3i CPU to send and receive data on a PROFIBUS-DP network. This module supports multiple protocols, including Serial I/O, Modbus Master/Slave, CCM Slave, DNP3 Master/Slave and SPL. Each communication port can support up to 64 communication tasks, and is equipped with abundant communication status bits and control bits, which can meet various complex communication requirements. The IC695PBM300 is a key component for seamless communication in industrial automation systems.
2. Product Parameters
The key technical parameters of IC695PBM300 are as follows:
Module Type: PROFIBUS master
Number of Slots: 1 (single slot)
Backplane Support: Universal
Protocol Support: Up to 125 PROFIBUS-DP slaves
Communication Ports: RS-232
Internal Power: 440 mA @ 3.3 VDC
Data Rates: Supports standard data rates of 9.6 kbit/s, 19.2 kbit/s, 93.75 kbit/s, 187.5 kbit/s, 500 kbit/s, 1.5 Mbit/s, 3 Mbit/s, 6 Mbit/s and 12 Mbit/s
Data Sizes: Up to 3,584 bytes of input and 3,584 bytes of output
Temperature Range: Storage temperature: -40°C to 85°C; Operating temperature: 0°C to 60°C
Weight: 0.15 kg
3. Advantages and Features
High Compatibility: Supports a variety of communication protocols and can work with different devices and systems in the industrial field, which greatly improves the flexibility of the system. For example, in a multi-vendor industrial setup, the IC695PBM300 can communicate effectively with various sensors and actuators.
High Data Capacity: It can handle up to 3,584 bytes of input and output data, which is sufficient for most industrial control applications that require a large amount of data transmission and processing. This allows for comprehensive monitoring and control of complex industrial processes.
Reliable Communication: With PROFIBUS-compliant module and network status LEDs, it can clearly display the working status of the module and the network, helping users to quickly identify and troubleshoot problems. This feature reduces downtime and maintenance costs.
Fast Data Transmission: Supports high-speed data transmission rates, which can meet the requirements of real-time control in industrial automation scenarios. In fast-paced manufacturing environments, timely data transfer is crucial, and the IC695PBM300 delivers on this front.
4. Application Areas and Application Cases
Applicable Industries and Scenarios: The IC695PBM300 is widely used in various industrial fields, such as manufacturing, energy, and water treatment. It is suitable for scenarios that require high-speed and reliable data communication, such as automated production lines, power distribution systems, and water treatment control systems.
Application Case: In an automated production line of an automobile factory, the IC695PBM300 is used to connect various sensors and actuators on the production line to the central control system. It realizes the high-speed and stable transmission of data such as the position and status of the production equipment, and the control instructions of the central control system. As a result, the efficient operation and precise control of the entire production line are ensured, and the production efficiency and product quality are improved.
5. Competition Comparison
Compared with some similar products in the market, the IC695PBM300 has obvious advantages in protocol support and data capacity. While some products may only support a few common protocols, the IC695PBM300 supports a variety of protocols, making it more adaptable to different application environments. In terms of data capacity, the IC695PBM300 can handle a larger amount of data, which can better meet the needs of complex industrial control systems.
6. Selection Suggestions
Compatibility: Make sure that the selected IC695PBM300 is compatible with your existing RX3i system, including the CPU firmware version and backplane type. Incompatible components can lead to system failures and inefficiencies.
Installation Environment: Consider the installation space and environmental conditions. The module should be installed in a clean, dry and well-ventilated place, and the operating temperature should be within the specified range. Harsh environments can damage the module and reduce its lifespan.
Function Requirements: According to the specific communication requirements of your project, such as the number of communication tasks, data transmission rate and data volume, to determine whether the IC695PBM300 can meet your needs. Overlooking these requirements may result in a module that is either underperforming or overkill for your application.
Budget: Although the IC695PBM300 provides excellent performance and functions, you also need to consider your budget to ensure that the cost of the selected module is within the acceptable range of the project. Balancing cost and performance is essential for a successful project.
7. Precautions
Installation: When installing the module, make sure to follow the correct installation steps and wiring methods to avoid incorrect installation that may cause damage to the module or system failure. Improper installation can lead to electrical hazards and system malfunctions.
Power Supply: Ensure that the power supply voltage is stable and within the specified range to avoid damage to the module caused by voltage fluctuations. Unstable power can cause data corruption and hardware damage.
Maintenance: Regularly check the working status of the module and the network, and clean the module surface to prevent dust and dirt from affecting the performance of the module. Neglecting maintenance can lead to decreased performance and increased downtime.
Software Update: Keep the module firmware and related software up to date to ensure that the module can work stably and obtain the latest features and performance improvements. Outdated software may have security vulnerabilities and lack important functionality.
