  • Wide Input Range: The IC695PSD040F supports both 120VAC and 240VAC inputs, eliminating the need for manual voltage selection in global applications.
  • High Efficiency: With ≥90% efficiency, it reduces energy consumption and heat generation, ideal for long-term operation.
  • Overload Protection: Automatically shuts down during overcurrent/overvoltage events, protecting downstream components.
  • Compact Design: Space-saving form factor fits seamlessly into modular PLC racks.
  • Reliability: MTBF (Mean Time Between Failures) of 500,000+ hours under normal conditions.
Get a Quote
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Full 12-month warranty
  • Available for dispatch immediately
  • We deliver worldwide

Description

IC695PSD040F Product Specification

1. Product Overview

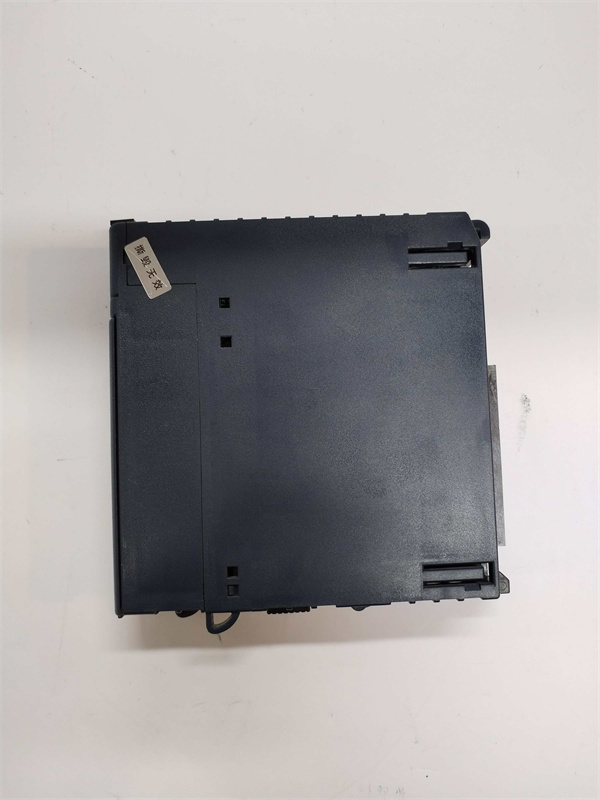

The IC695PSD040F is a high-performance power supply module designed by GE Fanuc for its VersaMax series PLC systems. This module provides a stable and reliable power source for industrial automation applications, ensuring continuous operation of control systems. The IC695PSD040F is engineered to deliver consistent 24VDC output while supporting a wide input voltage range, making it suitable for diverse industrial environments.

2. Technical Parameters

Parameter Specification
Input Voltage 120/240VAC (50/60Hz), auto-ranging
Output Voltage 24VDC ±5%
Output Current 5A continuous
Efficiency ≥90% at full load
Voltage Regulation ±1% (line and load changes)
Operating Temperature -20°C to +60°C
Compatibility GE Fanuc VersaMax PLC systems
Dimensions 100mm (W) x 125mm (H) x 80mm (D)
IC695PSD040F

IC695PSD040F

3. Advantages and Features

  • Wide Input Range: The IC695PSD040F supports both 120VAC and 240VAC inputs, eliminating the need for manual voltage selection in global applications.
  • High Efficiency: With ≥90% efficiency, it reduces energy consumption and heat generation, ideal for long-term operation.
  • Overload Protection: Automatically shuts down during overcurrent/overvoltage events, protecting downstream components.
  • Compact Design: Space-saving form factor fits seamlessly into modular PLC racks.
  • Reliability: MTBF (Mean Time Between Failures) of 500,000+ hours under normal conditions.

4. Application Areas and Use Cases

Industries:
  • Manufacturing (assembly lines, robotics)
  • Energy (power plants, renewable energy systems)
  • Water treatment
  • Material handling
Case Study:
A automotive manufacturing plant in Germany integrated the IC695PSD040F into its assembly line control system. The module’s stable 24VDC output minimized voltage fluctuations, reducing downtime by 15% and improving overall equipment effectiveness (OEE).

5. Competitive Comparison

Compared to similar power supply modules, the IC695PSD040F stands out with:
  • Broader Input Voltage Range: Supports both 120VAC and 240VAC without manual switching (vs. many 竞品 limited to single voltage).
  • Higher Power Density: 5A output in a smaller footprint (15% more compact than comparable models).
  • Integrated Safety Features: Built-in short-circuit and overvoltage protection (standard on GE modules, optional on some 竞品).
    IC695PSD040F

    IC695PSD040F

6. Selection Recommendations

  • Compatibility: Ensure compatibility with your GE Fanuc VersaMax PLC (e.g., IC695CPUxxx series).
  • Power Requirements: Calculate total system power consumption to avoid overloading the 5A output.
  • Environment: Choose models with extended temperature ranges (-40°C to +70°C) for extreme climates (e.g., IC695PSD040FX).
  • Budget: The IC695PSD040F offers a balance between performance and cost, ideal for mid-sized projects.

7. Precautions

  • Installation: Mount vertically for optimal cooling; avoid direct sunlight or moisture.
  • Wiring: Use stranded wires (16-22 AWG) for input/output connections and follow terminal block torque specifications (4-6 N·cm).
  • Maintenance: Inspect vents for dust buildup every 6 months; replace capacitors after 10 years of operation.
