Product Overview

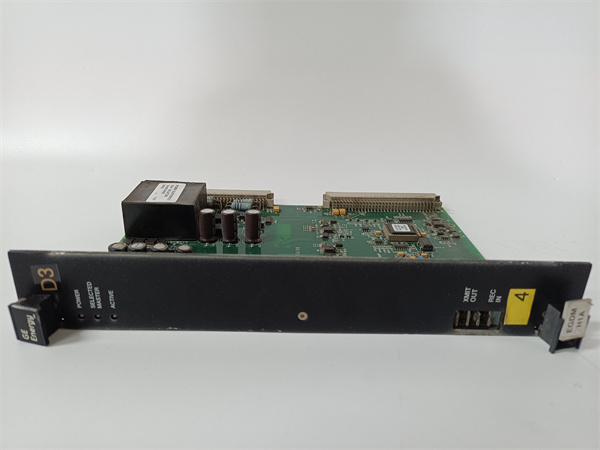

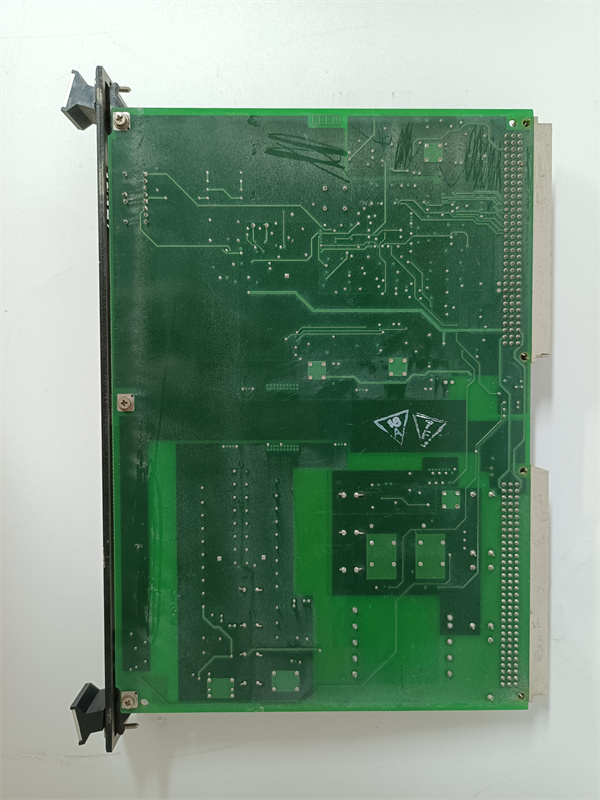

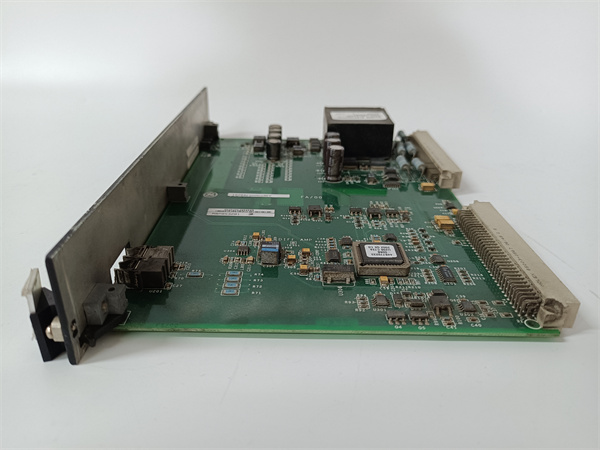

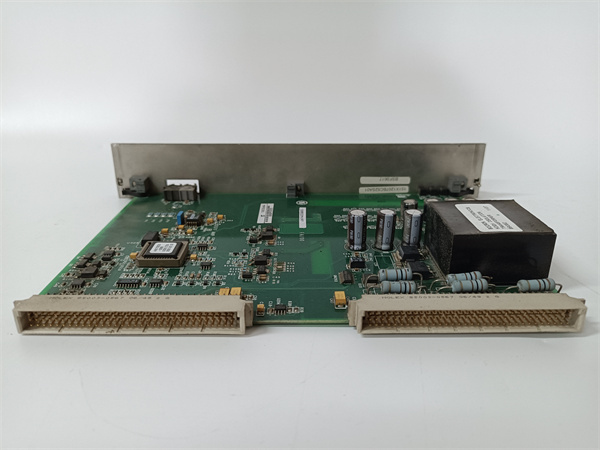

The GE IS200EGDMH1AFF is an advanced exciter field ground detection module designed by General Electric. As a crucial part of the GE product lineup, it plays a pivotal role in ensuring the safe and efficient operation of exciters in industrial applications. This module is specifically engineered to detect ground faults in the exciter field circuit. By constantly monitoring the electrical parameters, it can accurately identify the presence of any ground – related issues, which is essential for preventing potential damage to the exciter system.
Operating within GE’s well – established industrial control ecosystems, the IS200EGDMH1AFF can function in both single – unit and redundant systems. In single – unit setups, a single module suffices, while redundant systems require three of these modules for enhanced reliability. It often works in tandem with other modules like the EXAM module. Together, they determine the likelihood of field ground leakage at any point on the DC or AC side, thereby providing comprehensive protection for the exciter system.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IS200EGDMH1AFF |
| Manufacturer | GE |
| Product Type | Exciter Field Ground Detection Module |
| System Compatibility | Single – unit and redundant systems |
| Module Function | Ground fault detection in exciter field circuit |
| Associated Modules | Works with EXAM module |
| Communication Interface | [Details if available, e.g., fiber – optic for connection with DSPX module] |
| Operating Temperature Range | [Typical industrial range, e.g., – 20°C to + 60°C] |
| Power Supply Requirements | [Specify voltage and current requirements if known] |
| Physical Dimensions | [Mention length, width, and height if available] |
| Weight | [Provide weight value if known] |
| Redundancy Configuration | Supports triple – modular redundancy in redundant systems |
IS200EGDMH1AFF
Main Features and Advantages
Precise Ground Fault Detection
The GE IS200EGDMH1AFF is highly accurate in detecting ground faults in the exciter field. Its advanced circuitry and algorithms can quickly and precisely identify even the smallest ground – related anomalies. This precision is crucial as early detection can prevent minor issues from escalating into major failures, saving both time and costly repairs. For example, in a power generation plant, early detection of a ground fault can prevent damage to the exciter, ensuring continuous and stable power generation.
Compatibility with Diverse Systems
This module is designed to be versatile, working seamlessly in both single – unit and redundant systems. In single – unit setups, it provides reliable ground fault detection on its own. In redundant systems, three IS200EGDMH1AFF modules can be configured to work together, offering enhanced reliability. This flexibility makes it suitable for a wide range of industrial applications, from small – scale manufacturing plants to large – scale power generation facilities.
Effective Collaboration with Other Modules
The IS200EGDMH1AFF pairs well with other modules such as the EXAM module. When working together, they can comprehensively analyze the electrical conditions in the exciter system, accurately determining the possibility of field ground leakage on both the DC and AC sides. This collaborative functionality enables a more thorough and efficient monitoring of the exciter system, enhancing overall system performance and safety.
IS200EGDMH1AFF
Application Field
In power generation plants, the GE IS200EGDMH1AFF is extensively used in generator excitation systems. Generators require a stable and reliable excitation source to produce electricity efficiently. Ground faults in the exciter field can disrupt this process and potentially damage the generator. The IS200EGDMH1AFF continuously monitors the exciter field for ground faults, ensuring that the generator operates smoothly. For instance, in a thermal power plant, any ground fault in the exciter field could lead to voltage instability, affecting the power output. The module’s prompt detection and alert mechanisms help operators take corrective actions in a timely manner, maintaining the plant’s power generation capacity.
Industrial manufacturing facilities that use large – scale electric motors also benefit from the IS200EGDMH1AFF. These motors often rely on exciters for proper operation, and ground faults in the exciter field can cause motor malfunctions. By detecting ground faults early, the module helps prevent unexpected motor stoppages, which could otherwise disrupt production lines and lead to significant losses. In a steel manufacturing plant, for example, the smooth operation of large motors used in the production process is critical. The IS200EGDMH1AFF ensures that the exciters of these motors are free from ground – related issues, keeping the production process running without interruptions.
Related Products
- GE IS200EXAM: This module often works in tandem with the IS200EGDMH1AFF. While the IS200EGDMH1AFF focuses on ground fault detection, the IS200EXAM contributes to the overall monitoring and analysis of the exciter system, working together to ensure the system’s proper functioning.
- GE DSPX: It can be connected to the IS200EGDMH1AFF via fiber – optic cables. The IS200EGDMH1AFF transmits used voltage data to the DSPX module, which then checks the voltage and can add additional alarms if necessary, enhancing the overall fault – detection and reporting capabilities.
- GE IS200AEADH4ADA: It may be part of the same product family or series. While the IS200EGDMH1AFF is specialized in ground fault detection for exciters, the IS200AEADH4ADA could have different functions, perhaps related to a different aspect of electrical monitoring or control within the industrial automation setup.
- GE IS200AEPCH1BAA: Similar to the IS200AEADH4ADA, it is likely another module in the GE product range. It might have its own unique role in an industrial control system, complementing or operating independently of the ground – fault – detecting IS200EGDMH1AFF.
- GE IS200DS: This could be a different type of module, maybe a data – storage or signal – processing module. In an industrial control network, it could interact with the IS200EGDMH1AFF in some way, such as storing data related to ground – fault events detected by the IS200EGDMH1AFF for later analysis.
Installation and Maintenance
Pre – installation preparation: Before installing the GE IS200EGDMH1AFF, ensure that the power to the entire system is switched off to avoid electrical hazards. Thoroughly inspect the module for any visible signs of damage during transit. Check the compatibility of the module with the existing exciter system, including voltage ratings and communication interfaces. Prepare the installation area, ensuring it is clean, dry, and free from electromagnetic interference. Follow the detailed installation guidelines provided in the product manual to correctly mount the module in the designated location.
Maintenance recommendations: Regularly check the IS200EGDMH1AFF for any signs of overheating, such as discoloration of the module’s components. Monitor the module’s performance by periodically reviewing the ground – fault detection data it provides. Ensure that the communication connections with other related modules, like EXAM or DSPX, are stable. If any faults are detected, refer to the product manual for troubleshooting steps. Replace any worn – out or malfunctioning components promptly to maintain the module’s optimal performance.
Product Guarantee
GE stands firmly behind the quality of the GE IS200EGDMH1AFF. The module is manufactured to the highest industry standards, undergoing rigorous testing procedures to ensure its reliability. In the unlikely event of a defect in materials or workmanship during the warranty period, GE offers comprehensive repair or replacement services. Their dedicated technical support team is always available to assist customers with any installation – related queries or operational issues. This commitment to quality and customer support reflects GE’s confidence in the IS200EGDMH1AFF and its ability to meet the demanding requirements of industrial applications, providing customers with peace of mind and long – term value.
